Remove/Install Charge Air Temperature Sensor Downstream Of Throttle Valve - AR09.41-P-0005MNA
Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
Engine 178 in model 190
Shown on left charge air temperature sensor (2) on engine 177

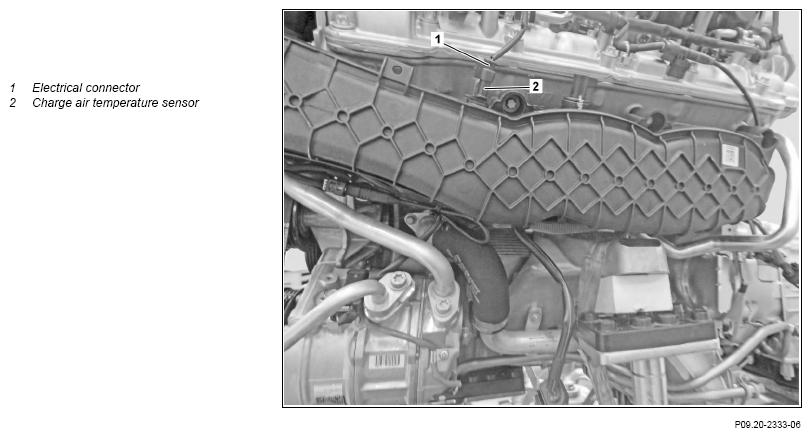

Fig 1: Charge Air Temperature Sensor Downstream Of Throttle Valve Component Location - Model 205 With Engine 177
| Remove/install | |||
| 1 | Remove right engine air intake duct upstream of left air filter | Engine 177 in model 205 When removing the right charge air temperature sensor (2). |
|
| 2 | Remove left or right throttle valve actuator | Engine 178 in model 190 | AR09.41-P-1330MNB |
| 3 | Remove left-hand air filter housing | Engine 176 in model 463 up to model year 2019 When removing the left charge air temperature sensor (2). |
AR09.10-P-1150MNA |
| 4 | Turn left or right charge air temperature sensor (2) counterclockwise | ||
| 5 | Disconnect electrical connection (1) from left or right charge air temperature sensor (2) | ||
| 6 | Remove left or right charge air temperature sensor (2) upwards | ||
| Check | |||
| 7 | Check sealing ring of left or right charge air temperature sensor (2) for damage | If damage is present ↓ Replace left or right charge air temperature sensor (2) |
|
| 8 | Install in the reverse order | ||
| 9 | Connect diagnostic system and read out fault memory | ||
| Engine 176 in model 463 up to model year 2019 | AD00.00-P-2000-04A | ||
| Engine 177 in model 205 | AD00.00-P-2000-04B | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform an engine test run and check engine for proper operation and leaktightness |
