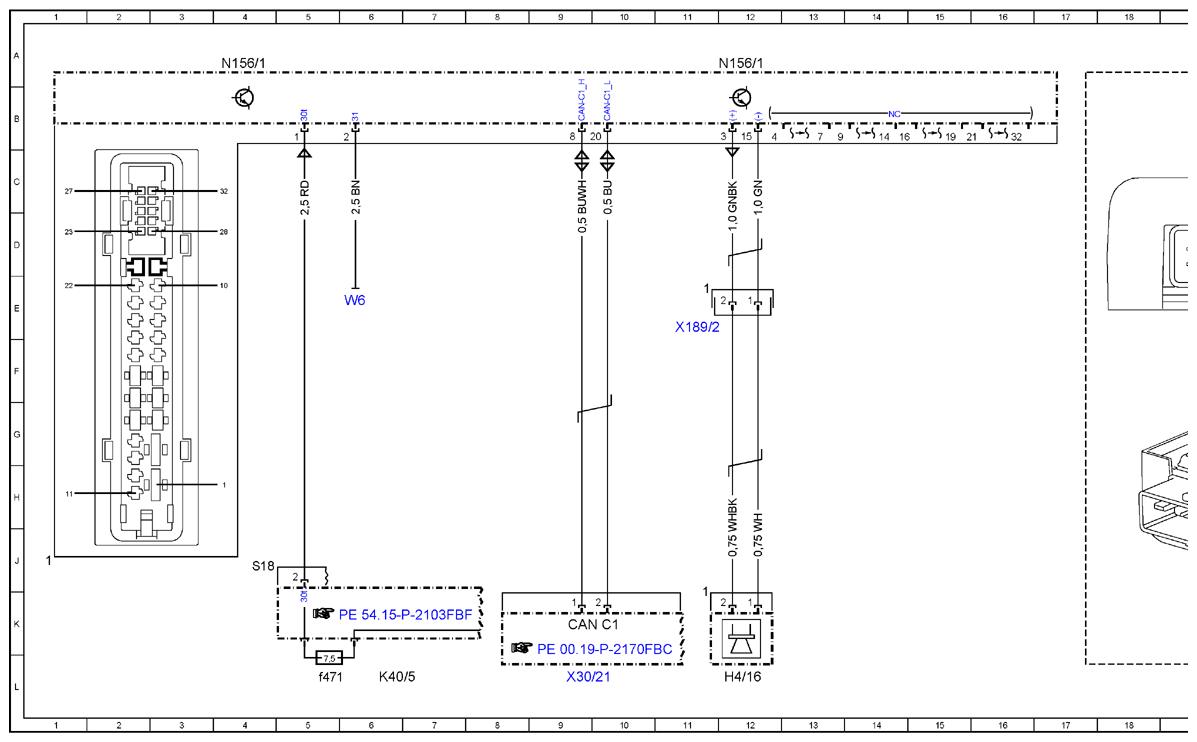

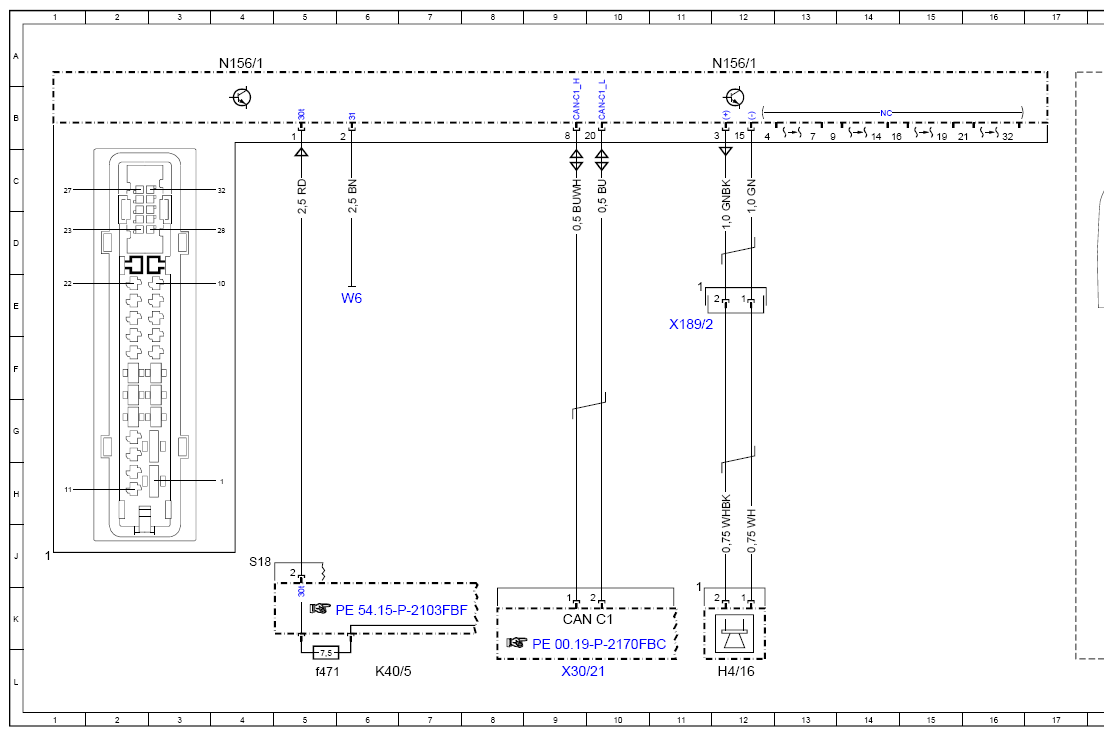

Wiring Diagram Of Engine Sound Control Unit - PE54.21-P-2148-97FBC
Model 205
as of model year 2019
with code U68 (Active engine sound generator)
Control unit N156/1
| Code: | Designation: | Position: |
|---|---|---|

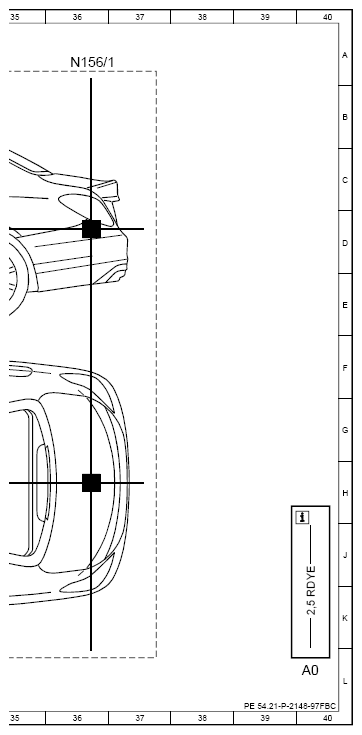

| A0 | Use of wiring diagrams | 40L |
| CAN C1 | Drive train CAN | 9K |
| H4/16 | Sound generator | 12L |
| K40/5 | Rear fuse and relay module | 6L |
| K40/5f471 | Fuse 471 | 5L |

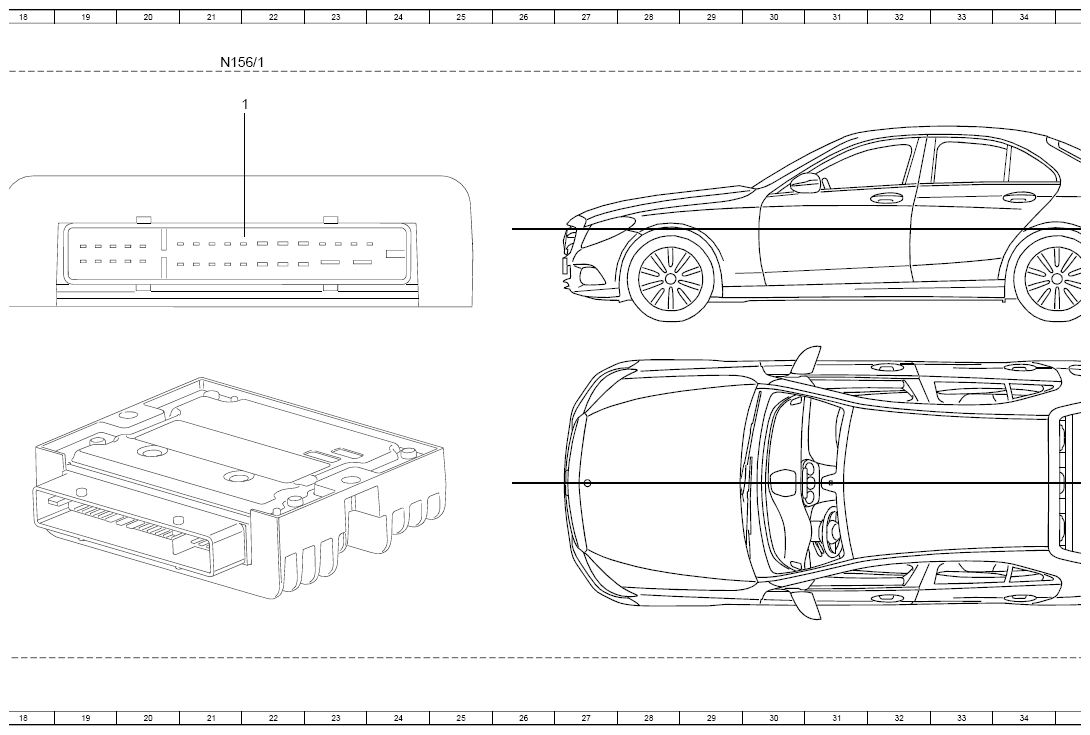

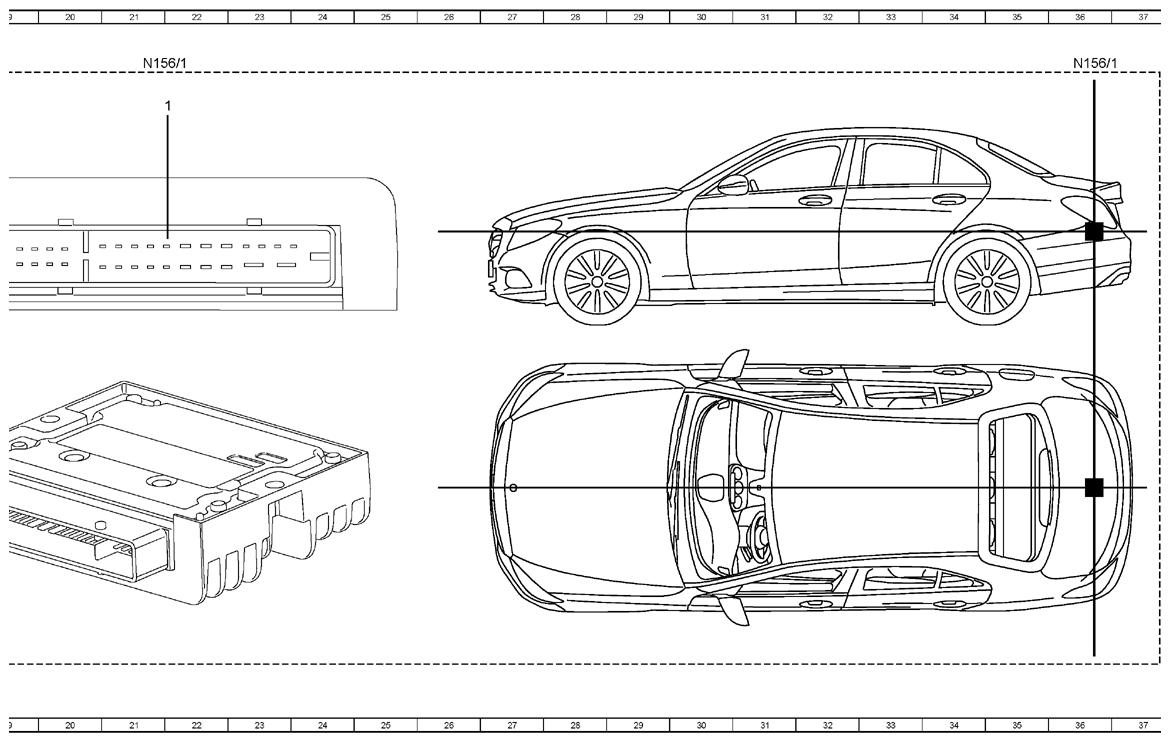

| N156/1 | Active engine sound generator control unit | 4A |
| N156/1 | Active engine sound generator control unit | 12A |
| N156/1 | Active engine sound generator control unit | 21A |
| N156/1 | Active engine sound generator control unit | 36A |
| W6 | Left wheel arch trunk ground point | 6E |
| X189/2 | Sound generator electrical connector | 11E |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 9L |
