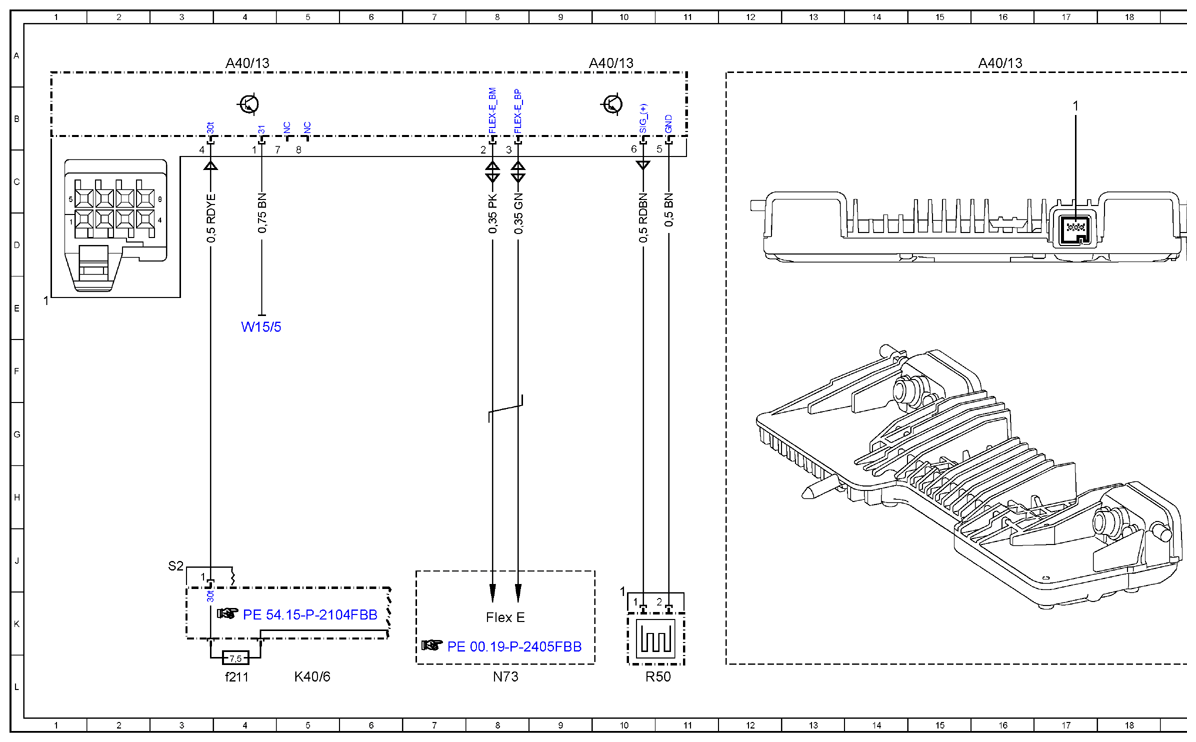

Wiring Diagram For Multifunction Camera - PE54.21-P-2129-97FBD
Model 205
as of model year 2019
with code 23P (Driving Assistance package)
Stereo
| Code: | Designation: | Position: |
|---|---|---|

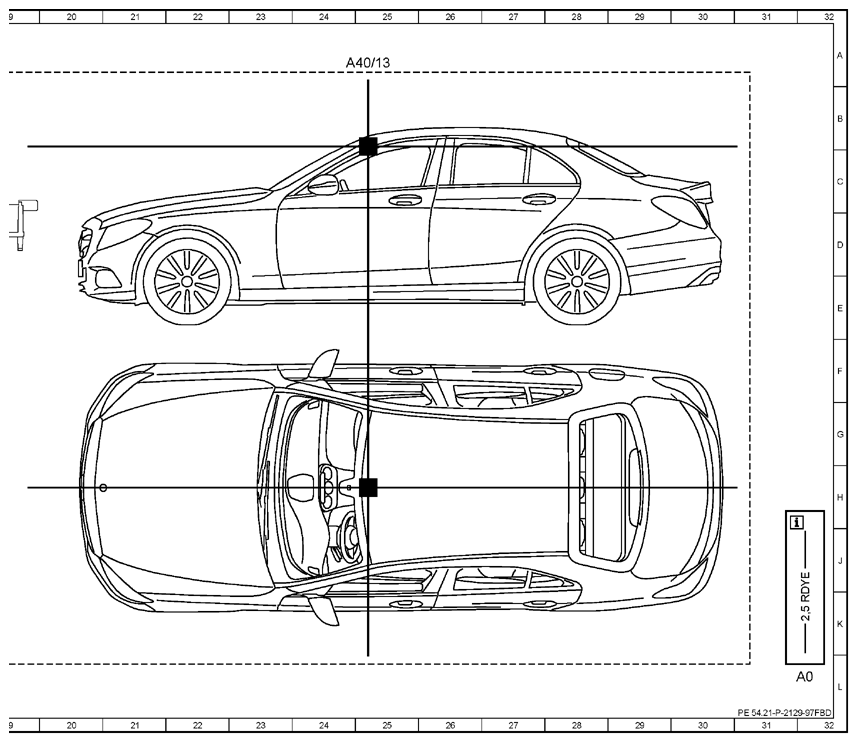

| A0 | Use of wiring diagrams | 32L |
| A40/13 | Stereo multifunction camera | 4A |
| A40/13 | Stereo multifunction camera | 10A |
| A40/13 | Stereo multifunction camera | 16A |
| A40/13 | Stereo multifunction camera | 25A |
| Flex E | Chassis FlexRay | 8K |
| K40/6 | Driver-side fuse and relay module | 5L |
| K40/6f211 | Fuse 211 | 4L |
| N73 | Electronic ignition switch control unit | 8L |
| R50 | Auxiliary heater heating element | 10L |
| W15/5 | Left front footwell ground point | 4E |
