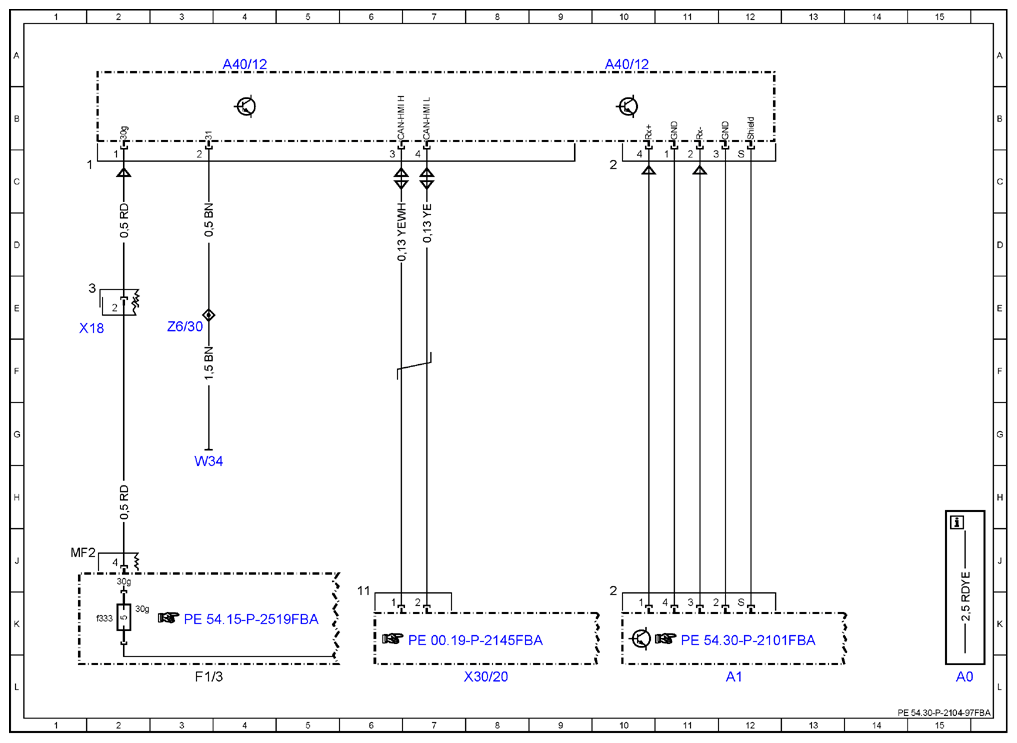

(Wiring Diagram For Head-Up Display Control Unit - PE54.30-P-2104-97FBA)
Model 205
up to model year 2019
with code 463 (Head-up display)
Control unit A40/12
Model 253 (except 253.99)
up to model year 2020
with code 463 (Head-up display)
Control unit A40/12
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A1 | Instrument cluster | 12L |
| A40/12 | Head-up display | 4A |
| A40/12 | Head-up display | 10A |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3f333 | Fuse 333 | 2K |
| W34 | Left footwell ground point | 3H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 2E |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 8L |
| Z6/30 | Circuit 31 connector sleeve | 3E |
