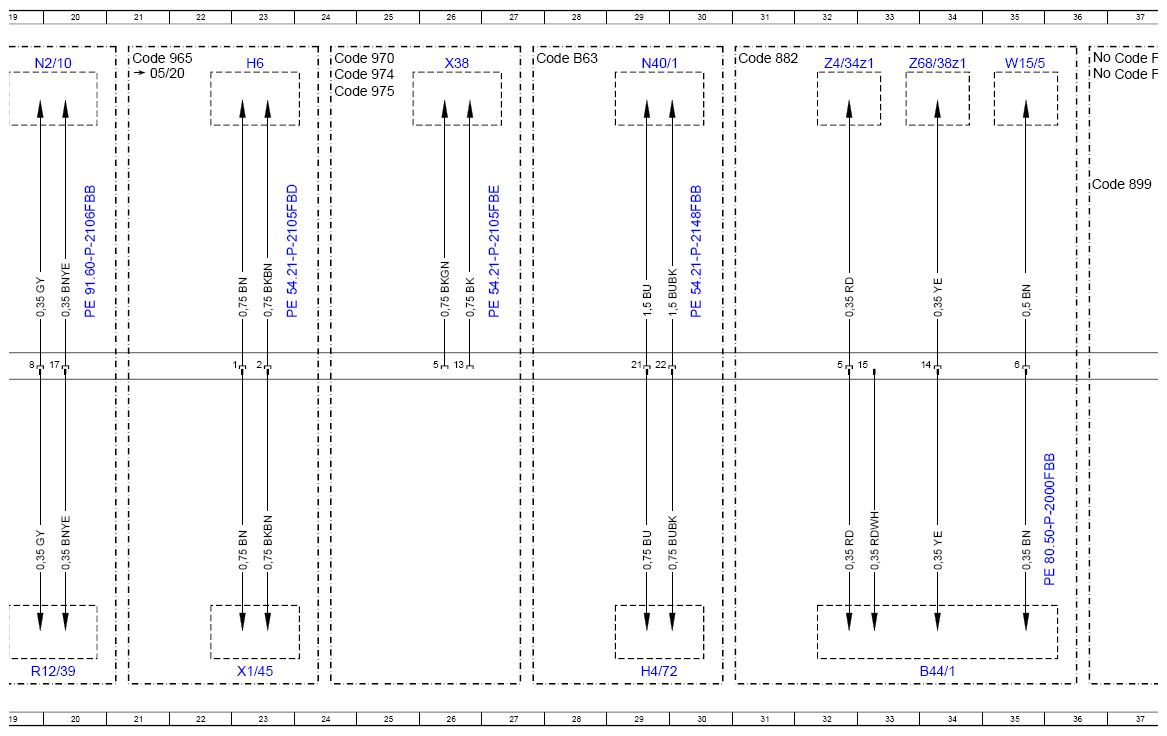

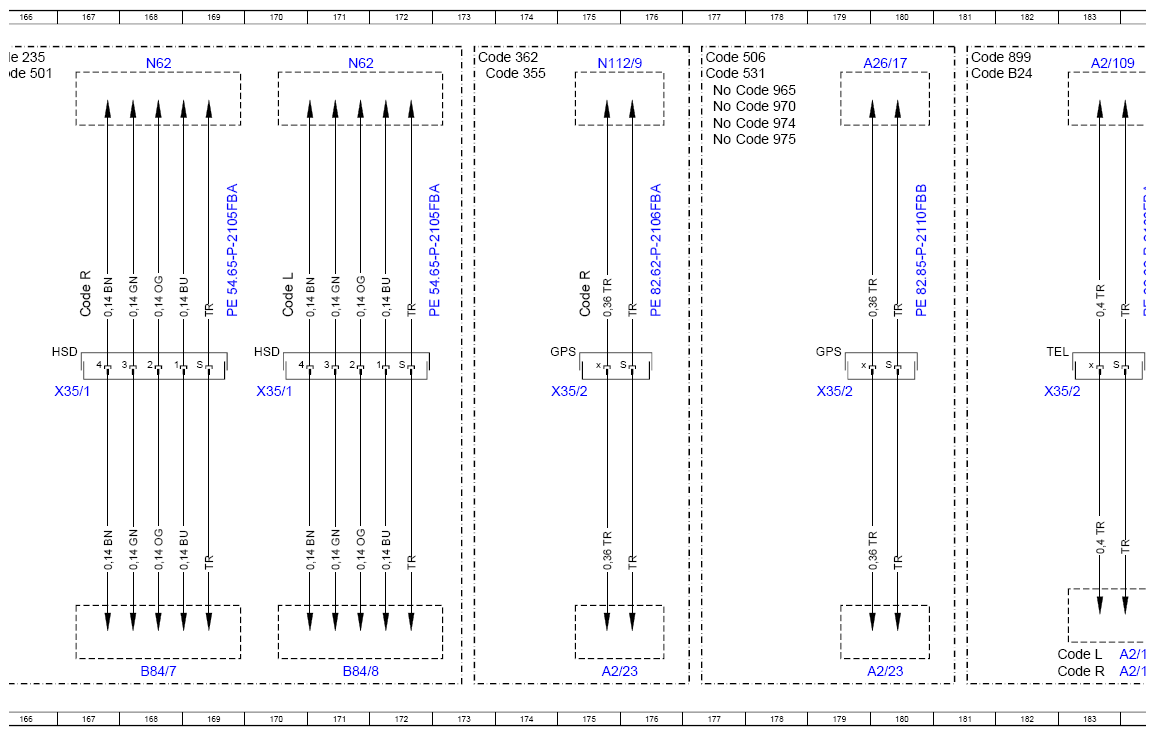

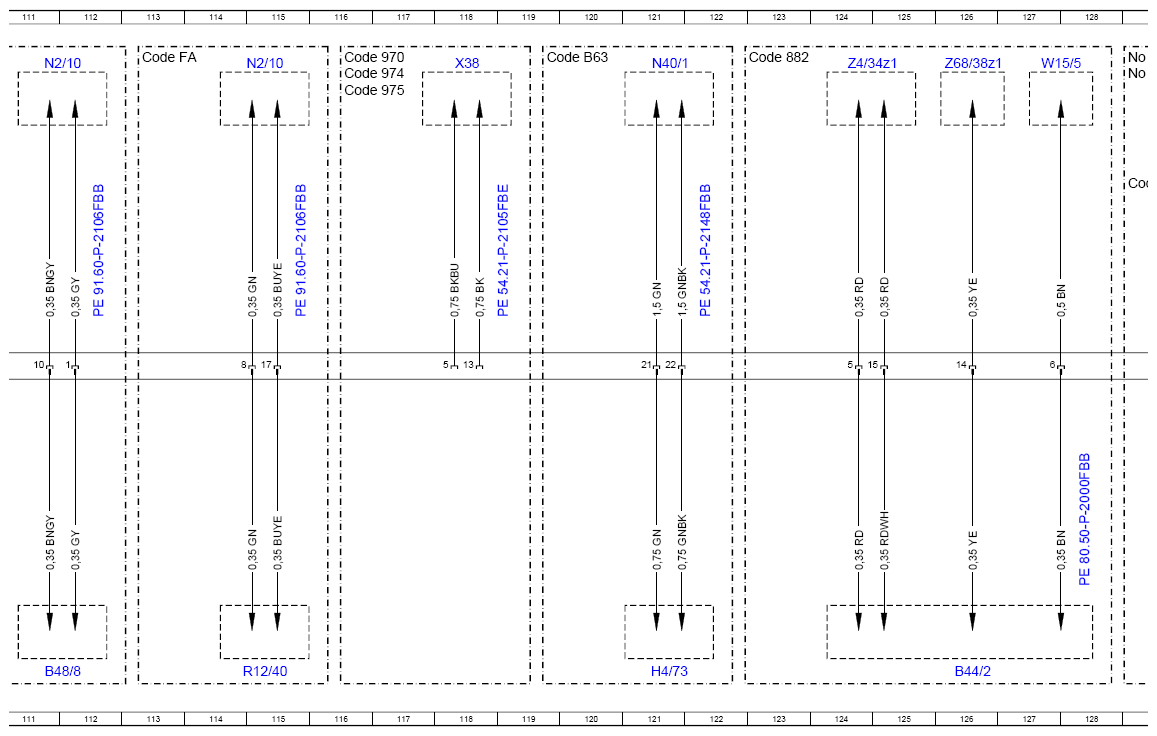

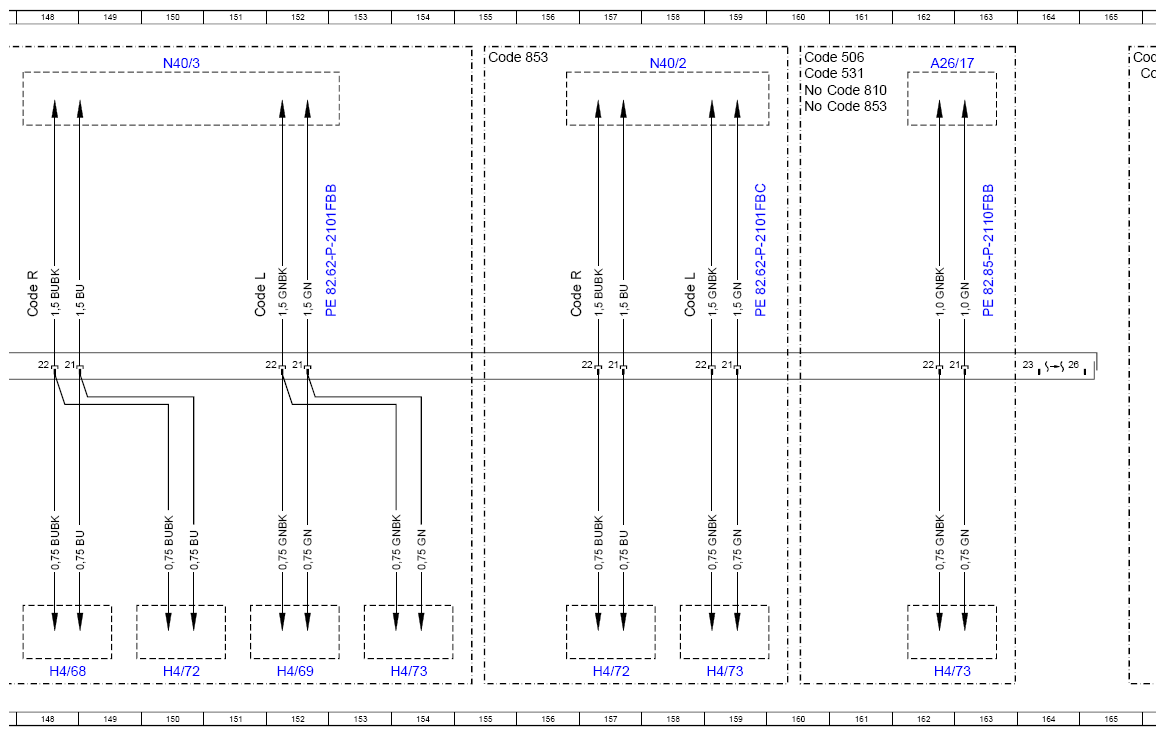

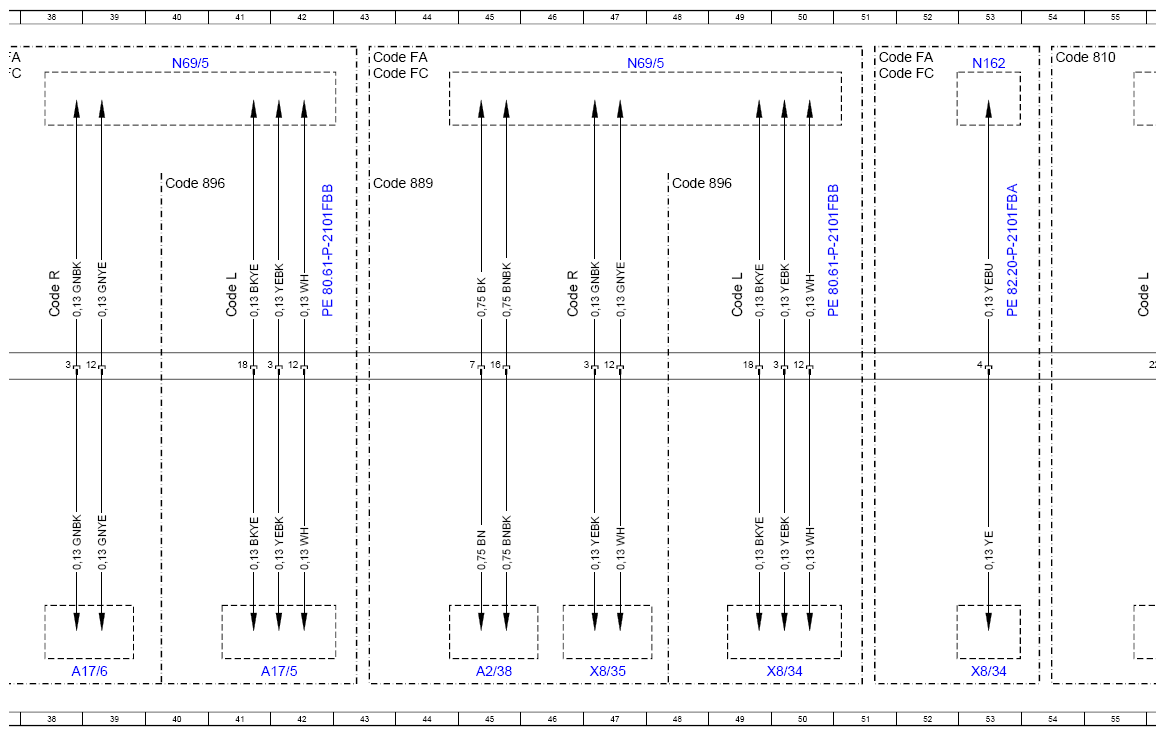

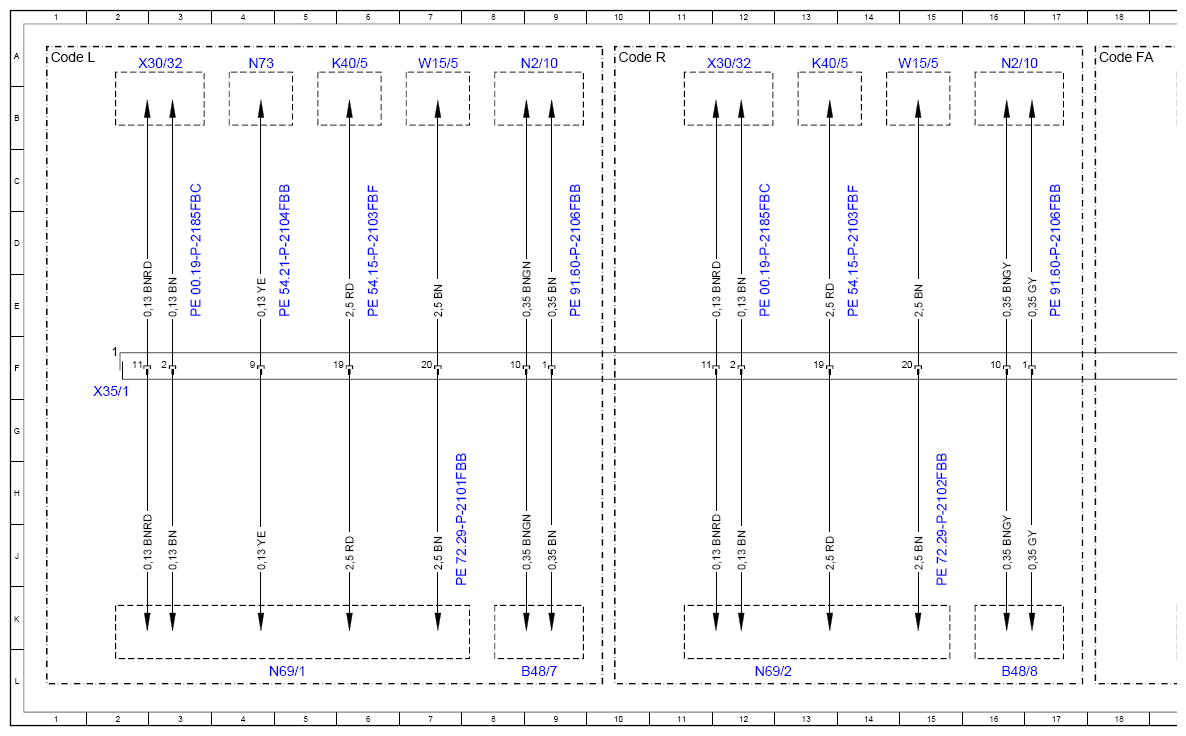

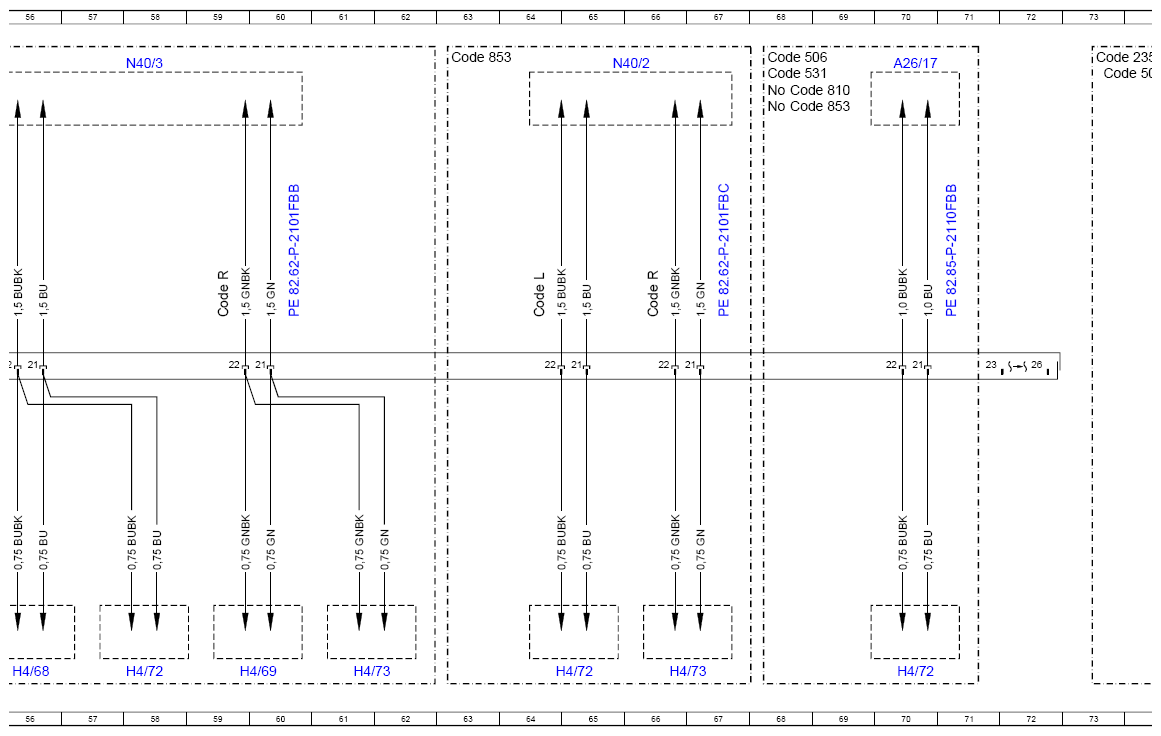

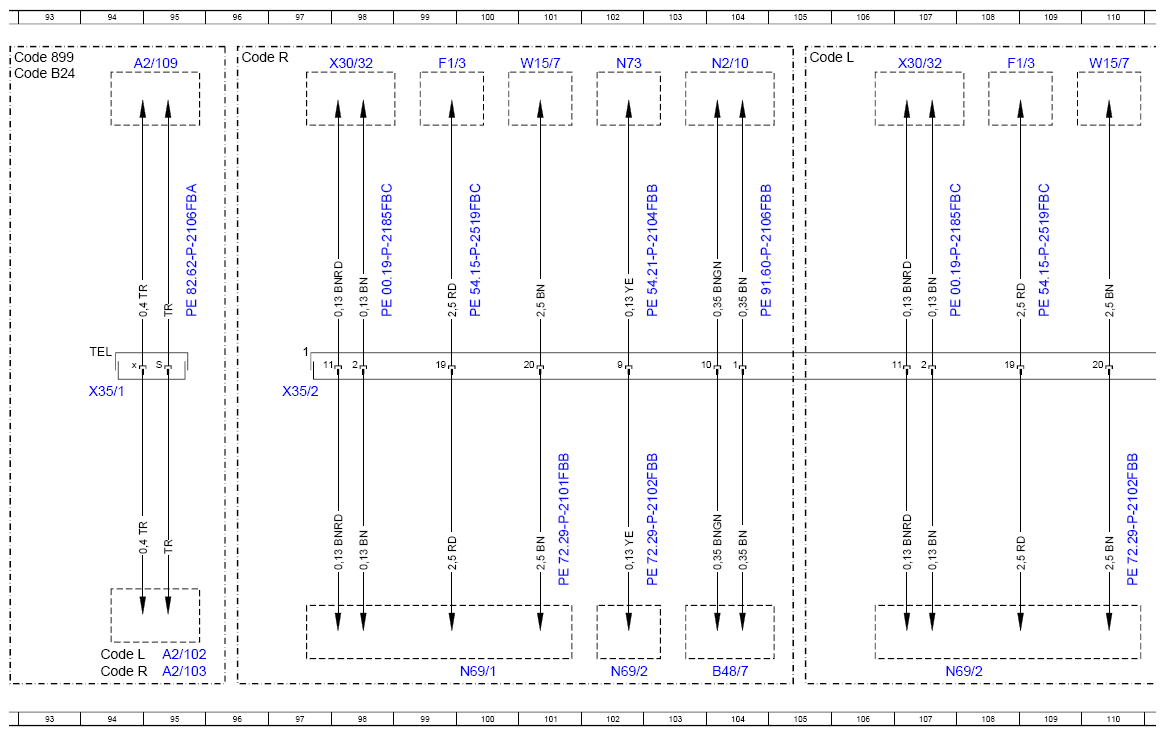

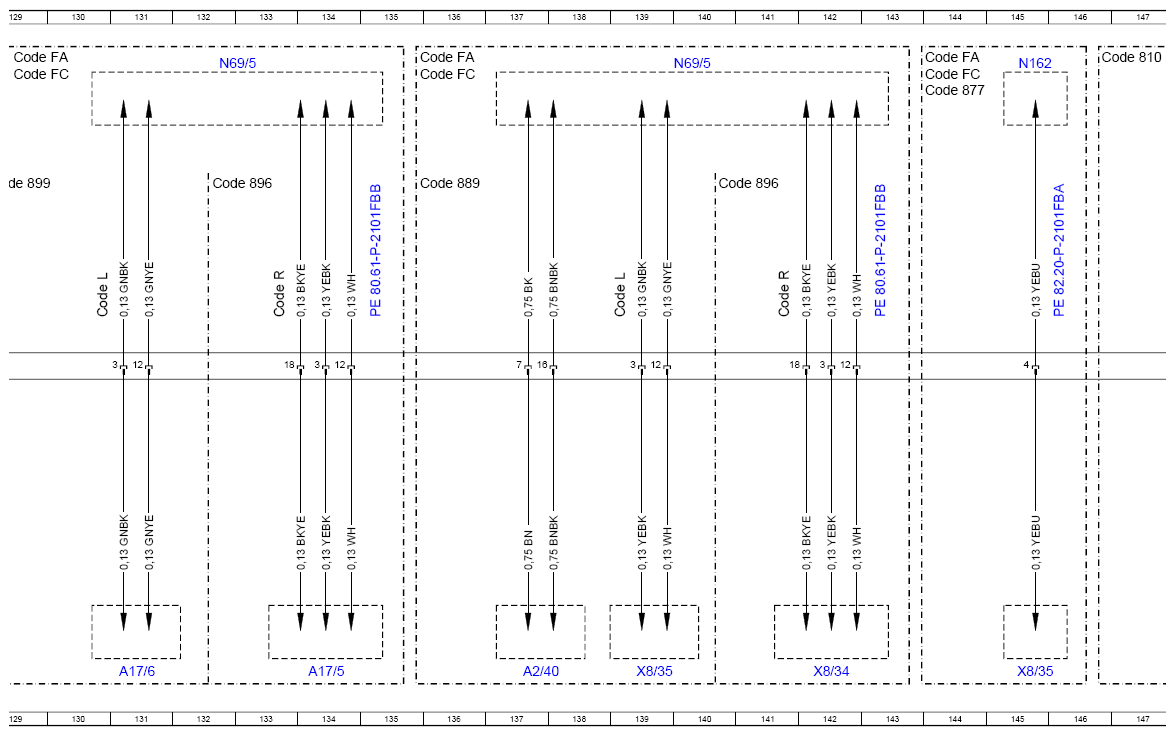

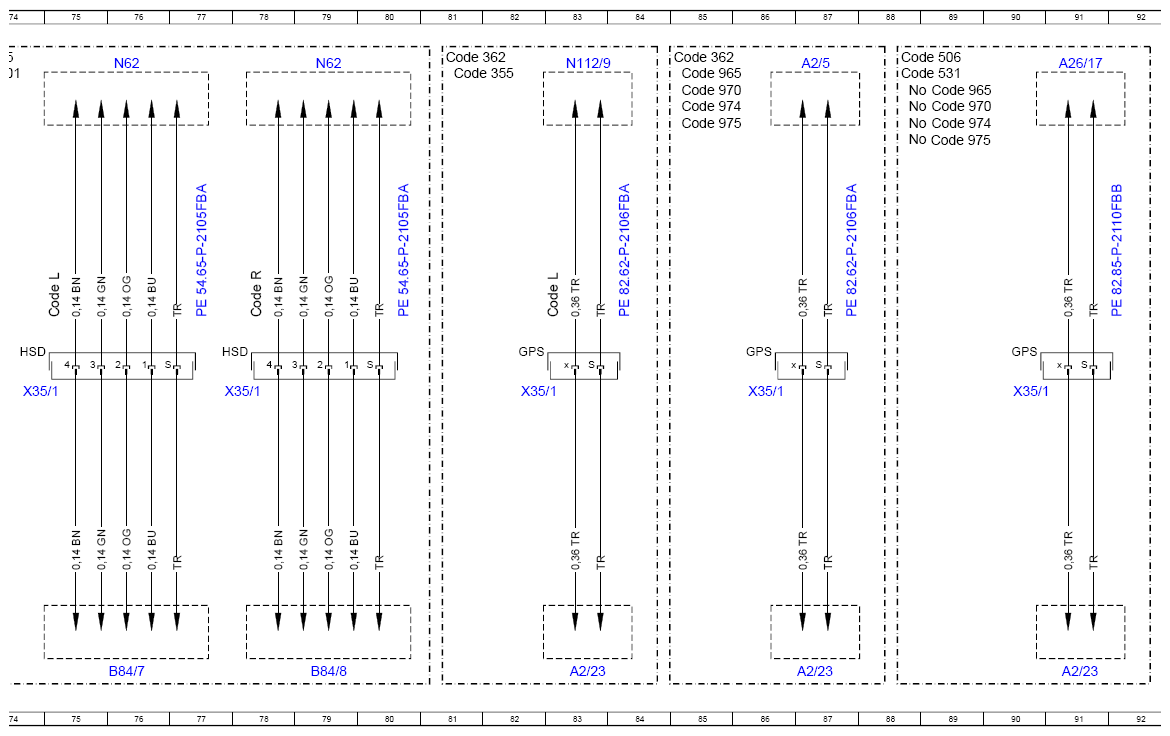

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97FBS
Model 205
as of model year 2019
X35/1, X35/2
| Code: | Designation: | Position: |
|---|---|---|

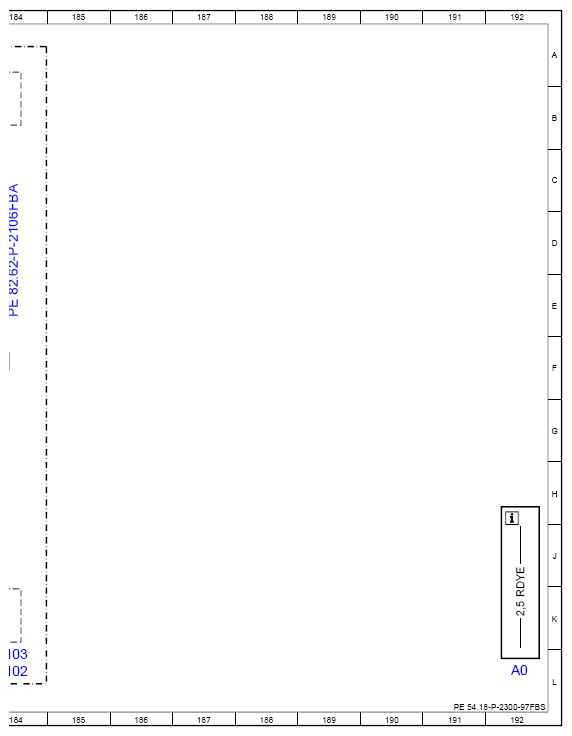

| A0 | Use of wiring diagrams | 192L |
| A17/5 | Driver door KEYLESS-GO door handle | 42L |
| A17/5 | Driver door KEYLESS-GO door handle | 134L |
| A17/6 | Front passenger door KEYLESS-GO door handle | 38L |
| A17/6 | Front passenger door KEYLESS-GO door handle | 131L |
| A2/102 | Left telephone antenna | 95L |
| A2/102 | Left telephone antenna | 183L |
| A2/103 | Right telephone antenna | 95L |
| A2/103 | Right telephone antenna | 183L |
| A2/109 | Telephone antenna splitter | 95A |
| A2/109 | Telephone antenna splitter | 183A |
| A2/23 | GPS antenna | 91L |
| A2/23 | GPS antenna | 83L |
| A2/23 | GPS antenna | 87L |
| A2/23 | GPS antenna | 175L |
| A2/23 | GPS antenna | 180L |
| A2/38 | Left front door KEYLESS-GO antenna | 45L |
| A2/40 | Right front door KEYLESS-GO antenna | 137L |
| A2/5 | Global positioning system antenna splitter | 87A |
| A26/17 | Head unit | 70A |
| A26/17 | Head unit | 91A |
| A26/17 | Head unit | 162A |
| A26/17 | Head unit | 180A |
| B44/1 | Left front door interior protection sensor | 34L |
| B44/2 | Right front door interior protection sensor | 126L |
| B48/7 | Left front door pressure sensor | 9L |
| B48/7 | Left front door pressure sensor | 104L |
| B48/8 | Right front door pressure sensor | 16L |
| B48/8 | Right front door pressure sensor | 111L |
| B84/7 | Left outside mirror 360° camera | 76L |
| B84/7 | Left outside mirror 360° camera | 168L |
| B84/8 | Right outside mirror 360° camera | 79L |
| B84/8 | Right outside mirror 360° camera | 171L |
| Code 235 | Active Park Assist | 73A |
| Code 235 | Active Park Assist | 165A |
| Code 355 | Preinstallation for navigation retrofit | 81A |
| Code 355 | Preinstallation for navigation retrofit | 173A |
| Code 362 | HERMES LTE | 81A |
| Code 362 | HERMES LTE | 85A |
| Code 362 | HERMES LTE | 173A |
| Code 501 | 360 degree camera | 73A |
| Code 501 | 360 degree camera | 165A |
| Code 506 | Audio 20 NTG 5.5 radio | 68A |
| Code 506 | Audio 20 NTG 5.5 radio | 88A |
| Code 506 | Audio 20 NTG 5.5 radio | 160A |
| Code 506 | Audio 20 NTG 5.5 radio | 177A |
| Code 531 | COMAND APS | 68A |
| Code 531 | COMAND APS | 88A |
| Code 531 | COMAND APS | 160A |
| Code 531 | COMAND APS | 177A |
| Code 810 | Sound system | 54A |
| Code 810 | Sound system | 68B |
| Code 810 | Sound system | 146A |
| Code 810 | Sound system | 160B |
| Code 853 | Midline sound system | 63A |
| Code 853 | Midline sound system | 68B |
| Code 853 | Midline sound system | 155A |
| Code 853 | Midline sound system | 160B |
| Code 877 | Ambiance illumination | 144B |
| Code 882 | Interior protection and tow-away protection | 31A |
| Code 882 | Interior protection and tow-away protection | 123A |
| Code 889 | KEYLESS-GO | 43C |
| Code 889 | KEYLESS-GO | 135C |
| Code 896 | Vehicle access and drive authorization via mobile phone | 40C |
| Code 896 | Vehicle access and drive authorization via mobile phone | 48C |
| Code 896 | Vehicle access and drive authorization via mobile phone | 132C |
| Code 896 | Vehicle access and drive authorization via mobile phone | 140C |
| Code 899 | Wireless phone charging at front and antenna | 36C |
| Code 899 | Wireless phone charging at front and antenna | 92A |
| Code 899 | Wireless phone charging at front and antenna | 129C |
| Code 899 | Wireless phone charging at front and antenna | 181A |
| Code 965 | Taxi/rental car - Pre-installation | 21A |
| Code 965 | Taxi/rental car - Pre-installation | 85A |
| Code 965 | Taxi/rental car - Pre-installation | 89B |
| Code 965 | Taxi/rental car - Pre-installation | 177B |
| Code 970 | Police emergency vehicles | 24A |
| Code 970 | Police emergency vehicles | 89B |
| Code 970 | Police emergency vehicles | 85B |
| Code 970 | Police emergency vehicles | 116A |
| Code 970 | Police emergency vehicles | 177B |
| Code 974 | Fire department lead emergency vehicle preinstallation | 24A |
| Code 974 | Fire department lead emergency vehicle preinstallation | 85B |
| Code 974 | Fire department lead emergency vehicle preinstallation | 89B |
| Code 974 | Fire department lead emergency vehicle preinstallation | 116A |
| Code 974 | Fire department lead emergency vehicle preinstallation | 177B |
| Code 975 | Emergency physician vehicle preinstallation | 24B |
| Code 975 | Emergency physician vehicle preinstallation | 89B |
| Code 975 | Emergency physician vehicle preinstallation | 85B |
| Code 975 | Emergency physician vehicle preinstallation | 116B |
| Code 975 | Emergency physician vehicle preinstallation | 177B |
| Code B24 | Radio remote control for stationary heater | 92A |
| Code B24 | Radio remote control for stationary heater | 181A |
| Code B63 | AMG eSound | 27A |
| Code B63 | AMG eSound | 119A |
| Code FA | CABRIOLET | 37A |
| Code FA | CABRIOLET | 18A |
| Code FA | CABRIOLET | 51A |
| Code FA | CABRIOLET | 43A |
| Code FA | CABRIOLET | 113A |
| Code FA | CABRIOLET | 144A |
| Code FA | CABRIOLET | 135A |
| Code FA | CABRIOLET | 129A |
| Code FC | COUPE | 37A |
| Code FC | COUPE | 51A |
| Code FC | COUPE | 43A |
| Code FC | COUPE | 144A |
| Code FC | COUPE | 135A |
| Code FC | COUPE | 129A |
| Code L | LEFT-HAND DRIVE | 94L |
| Code L | LEFT-HAND DRIVE | 1A |
| Code L | LEFT-HAND DRIVE | 49E |
| Code L | LEFT-HAND DRIVE | 41E |
| Code L | LEFT-HAND DRIVE | 64E |
| Code L | LEFT-HAND DRIVE | 56E |
| Code L | LEFT-HAND DRIVE | 83E |
| Code L | LEFT-HAND DRIVE | 75E |
| Code L | LEFT-HAND DRIVE | 182L |
| Code L | LEFT-HAND DRIVE | 139E |
| Code L | LEFT-HAND DRIVE | 130E |
| Code L | LEFT-HAND DRIVE | 158E |
| Code L | LEFT-HAND DRIVE | 151E |
| Code L | LEFT-HAND DRIVE | 105A |
| Code L | LEFT-HAND DRIVE | 170E |
| Code R | RIGHT-HAND DRIVE | 94L |
| Code R | RIGHT-HAND DRIVE | 10A |
| Code R | RIGHT-HAND DRIVE | 46E |
| Code R | RIGHT-HAND DRIVE | 38E |
| Code R | RIGHT-HAND DRIVE | 66E |
| Code R | RIGHT-HAND DRIVE | 59E |
| Code R | RIGHT-HAND DRIVE | 78E |
| Code R | RIGHT-HAND DRIVE | 96A |
| Code R | RIGHT-HAND DRIVE | 182L |
| Code R | RIGHT-HAND DRIVE | 141E |
| Code R | RIGHT-HAND DRIVE | 133E |
| Code R | RIGHT-HAND DRIVE | 157E |
| Code R | RIGHT-HAND DRIVE | 148E |
| Code R | RIGHT-HAND DRIVE | 167E |
| Code R | RIGHT-HAND DRIVE | 175E |
| F1/3 | Passenger-side A-pillar fuse box | 99A |
| F1/3 | Passenger-side A-pillar fuse box | 108A |
| H4/68 | Left front door tweeter | 56L |
| H4/68 | Left front door tweeter | 148L |
| H4/69 | Right front door tweeter | 60L |
| H4/69 | Right front door tweeter | 152L |
| H4/72 | Left front door midrange speaker | 29L |
| H4/72 | Left front door midrange speaker | 65L |
| H4/72 | Left front door midrange speaker | 58L |
| H4/72 | Left front door midrange speaker | 70L |
| H4/72 | Left front door midrange speaker | 157L |
| H4/72 | Left front door midrange speaker | 150L |
| H4/73 | Right front door midrange speaker | 66L |
| H4/73 | Right front door midrange speaker | 61L |
| H4/73 | Right front door midrange speaker | 121L |
| H4/73 | Right front door midrange speaker | 159L |
| H4/73 | Right front door midrange speaker | 154L |
| H4/73 | Right front door midrange speaker | 162L |
| H6 | Taxi two-way radio speaker | 23A |
| K40/5 | Rear fuse and relay module | 6A |
| K40/5 | Rear fuse and relay module | 13A |
| N112/9 | HERMES control unit | 83A |
| N112/9 | HERMES control unit | 175A |
| N162 | Ambiance illumination control unit | 53A |
| N162 | Ambiance illumination control unit | 145A |
| N2/10 | Supplemental restraint system control unit | 9A |
| N2/10 | Supplemental restraint system control unit | 16A |
| N2/10 | Supplemental restraint system control unit | 20A |
| N2/10 | Supplemental restraint system control unit | 104A |
| N2/10 | Supplemental restraint system control unit | 111A |
| N2/10 | Supplemental restraint system control unit | 115A |
| N40/1 | Engine sound control unit | 29A |
| N40/1 | Engine sound control unit | 121A |
| N40/2 | Sound system midline amplifier control unit | 65A |
| N40/2 | Sound system midline amplifier control unit | 158A |
| N40/3 | Sound system amplifier control unit | 58A |
| N40/3 | Sound system amplifier control unit | 150A |
| N62 | Parking system control unit | 79A |
| N62 | Parking system control unit | 76A |
| N62 | Parking system control unit | 168A |
| N62 | Parking system control unit | 171A |
| N69/1 | Left front door control unit | 5L |
| N69/1 | Left front door control unit | 100L |
| N69/2 | Right front door control unit | 12L |
| N69/2 | Right front door control unit | 107L |
| N69/2 | Right front door control unit | 102L |
| N69/5 | KEYLESS-GO control unit | 40A |
| N69/5 | KEYLESS-GO control unit | 47A |
| N69/5 | KEYLESS-GO control unit | 132A |
| N69/5 | KEYLESS-GO control unit | 140A |
| N73 | Electronic ignition switch control unit | 4A |
| N73 | Electronic ignition switch control unit | 102A |
| R12/39 | Left headbag squib | 19L |
| R12/40 | Right headbag squib | 115L |
| W15/5 | Left front footwell ground point | 7A |
| W15/5 | Left front footwell ground point | 15A |
| W15/5 | Left front footwell ground point | 35A |
| W15/5 | Left front footwell ground point | 127A |
| W15/7 | Right front footwell ground point | 101A |
| W15/7 | Right front footwell ground point | 110A |
| X1/45 | Two-way radio speaker electrical connector | 23L |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 98A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 3A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 12A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 107A |
| X35/1 | Driver door electrical connector | 2F |
| X35/1 | Driver door electrical connector | 74F |
| X35/1 | Driver door electrical connector | 78F |
| X35/1 | Driver door electrical connector | 82F |
| X35/1 | Driver door electrical connector | 90F |
| X35/1 | Driver door electrical connector | 86F |
| X35/1 | Driver door electrical connector | 94F |
| X35/1 | Driver door electrical connector | 167F |
| X35/1 | Driver door electrical connector | 170F |
| X35/2 | Front passenger door electrical connector | 97F |
| X35/2 | Front passenger door electrical connector | 175F |
| X35/2 | Front passenger door electrical connector | 183F |
| X35/2 | Front passenger door electrical connector | 179F |
| X38 | Speaker intermediate connector | 26A |
| X38 | Speaker intermediate connector | 118A |
| X8/34 | Left front KEYLESS GO door handle electrical connector | 50L |
| X8/34 | Left front KEYLESS GO door handle electrical connector | 53L |
| X8/34 | Left front KEYLESS GO door handle electrical connector | 142L |
| X8/35 | Right front KEYLESS GO door handle electrical connector | 47L |
| X8/35 | Right front KEYLESS GO door handle electrical connector | 139L |
| X8/35 | Right front KEYLESS GO door handle electrical connector | 145L |
| Z4/34z1 | Overhead control panel terminal 30 connector sleeve | 32A |
| Z4/34z1 | Overhead control panel terminal 30 connector sleeve | 124A |
| Z68/38z1 | Alarm systems LIN connector sleeve | 34A |
| Z68/38z1 | Alarm systems LIN connector sleeve | 126A |
