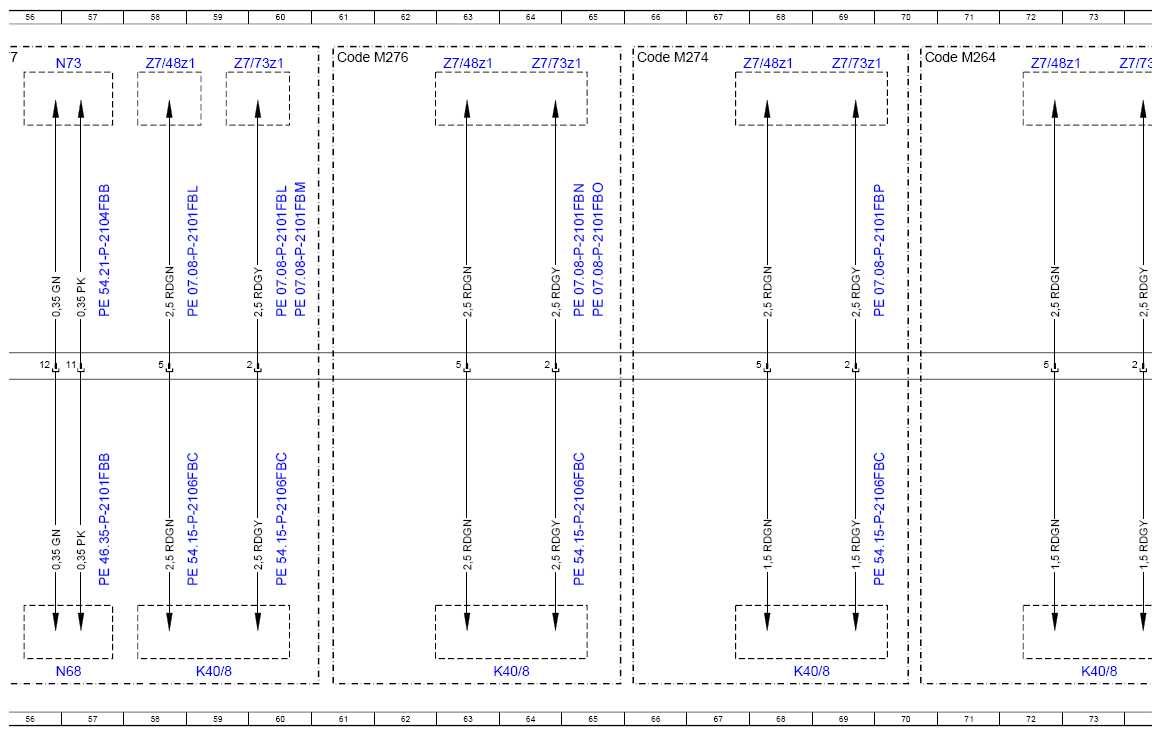

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97FBQ
Model 205
as of model year 2019
X25/7
| Code: | Designation: | Position: |
|---|---|---|

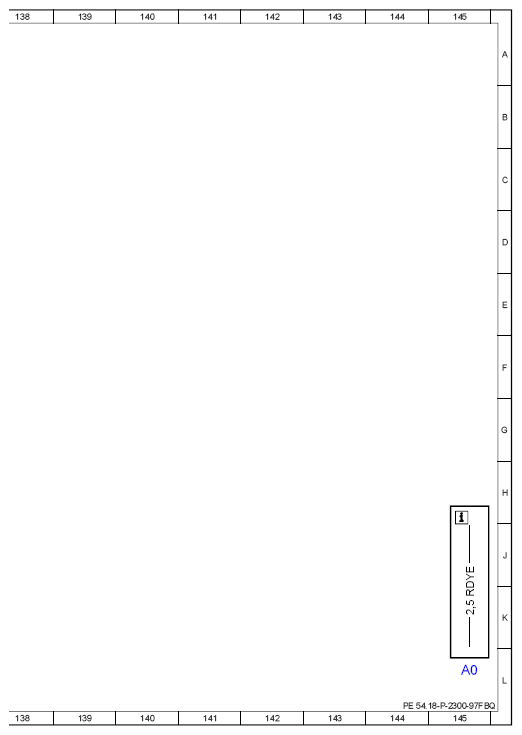

| A0 | Use of wiring diagrams | 145L |
| A9/5 | Electric refrigerant compressor | 30L |
| A9/5 | Electric refrigerant compressor | 35L |
| B10/13 | Low-temperature circuit temperature sensor | 33L |
| B22/7 | Left rear level sensor | 45A |
| B22/7 | Left rear level sensor | 49A |
| B37 | Accelerator pedal sensor | 94A |
| C8 | Park pawl capacitor | 98A |
| Code 459 | DYNAMIC BODY CONTROL suspension with adjustment damping | 43A |
| Code 459 | DYNAMIC BODY CONTROL suspension with adjustment damping | 47A |
| Code 483 | ADVANCED AGILITY package | 80A |
| Code 489 | AIRMATIC | 43A |
| Code 489 | AIRMATIC | 47A |
| Code 489 | AIRMATIC | 80A |
| Code 631 | Static LED headlamp, left-hand traffic | 43B |
| Code 631 | Static LED headlamp, left-hand traffic | 106A |
| Code 632 | Static LED headlamp, right-hand traffic | 43B |
| Code 632 | Static LED headlamp, right-hand traffic | 106A |
| Code 640 | High Performance LED | 46B |
| Code 640 | High Performance LED | 111A |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 46B |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 111A |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 46B |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 111B |
| Code 965 | Taxi/rental car - Pre-installation | 36A |
| Code M177 | SPARK-IGNITION ENGINE M177 | 1A |
| Code M177 | SPARK-IGNITION ENGINE M177 | 55A |
| Code M177 | SPARK-IGNITION ENGINE M177 | 119A |
| Code M264 | SPARK-IGNITION ENGINE M264 | 16A |
| Code M264 | SPARK-IGNITION ENGINE M264 | 70A |
| Code M264 | SPARK-IGNITION ENGINE M264 | 129A |
| Code M274 | SPARK-IGNITION ENGINE M274 | 11A |
| Code M274 | SPARK-IGNITION ENGINE M274 | 66A |
| Code M274 | SPARK-IGNITION ENGINE M274 | 126A |
| Code M276 | SPARK-IGNITION ENGINE M276 | 5A |
| Code M276 | SPARK-IGNITION ENGINE M276 | 61A |
| Code M276 | SPARK-IGNITION ENGINE M276 | 122A |
| Code M654 | DIESEL ENGINE OM654 | 21A |
| Code M654 | DIESEL ENGINE OM654 | 75A |
| Code M654 | DIESEL ENGINE OM654 | 99A |
| Code M654 | DIESEL ENGINE OM654 | 103A |
| Code M654 | DIESEL ENGINE OM654 | 133A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 26E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 28A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 96A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 89A |
| Code R | RIGHT-HAND DRIVE | 106B |
| Code R | RIGHT-HAND DRIVE | 111B |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment Generation 3 | 99A |
| E1 | Left front lamp unit | 49L |
| E1 | Left front lamp unit | 45L |
| E1 | Left front lamp unit | 108L |
| E1 | Left front lamp unit | 113L |
| E2 | Right front lamp unit | 109L |
| E2 | Right front lamp unit | 114L |
| F1/3 | Passenger-side A-pillar fuse box | 35A |
| K40/8 | Engine fuse and relay module | 3L |
| K40/8 | Engine fuse and relay module | 14L |
| K40/8 | Engine fuse and relay module | 8L |
| K40/8 | Engine fuse and relay module | 19L |
| K40/8 | Engine fuse and relay module | 25L |
| K40/8 | Engine fuse and relay module | 59L |
| K40/8 | Engine fuse and relay module | 68L |
| K40/8 | Engine fuse and relay module | 73L |
| K40/8 | Engine fuse and relay module | 64L |
| K40/8 | Engine fuse and relay module | 85L |
| K40/8 | Engine fuse and relay module | 78L |
| K40/8 | Engine fuse and relay module | 82L |
| K40/8 | Engine fuse and relay module | 89L |
| K40/8 | Engine fuse and relay module | 87L |
| K40/8 | Engine fuse and relay module | 98L |
| K40/8 | Engine fuse and relay module | 131L |
| K40/8 | Engine fuse and relay module | 128L |
| K40/8 | Engine fuse and relay module | 121L |
| K40/8 | Engine fuse and relay module | 124L |
| K40/8 | Engine fuse and relay module | 135L |
| N10/6 | Front SAM control unit | 41L |
| N127 | Drivetrain control unit | 34A |
| N127 | Drivetrain control unit | 85A |
| N127 | Drivetrain control unit | 105A |
| N3/10 | ME-SFI [ME] control unit | 9A |
| N3/10 | ME-SFI [ME] control unit | 14A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/9 | CDI control unit | 25A |
| N30/4 | Electronic Stability Program control unit | 53A |
| N30/4 | Electronic Stability Program control unit | 87A |
| N30/4 | Electronic Stability Program control unit | 90A |
| N51/3 | AIRMATIC control unit | 82A |
| N68 | Electrical power steering control unit | 57L |
| N68 | Electrical power steering control unit | 54L |
| N73 | Electronic ignition switch control unit | 57A |
| R62 | Voltage dip limiter | 27A |
| S7 | High-voltage disconnect device | 30A |

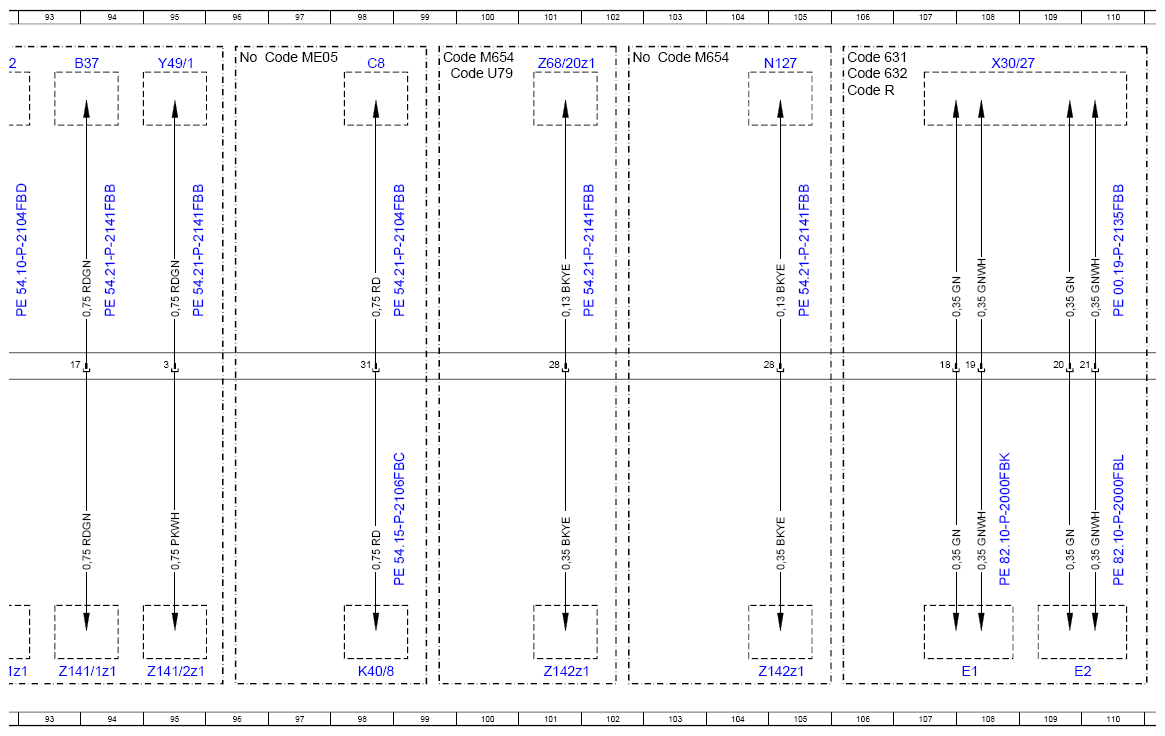

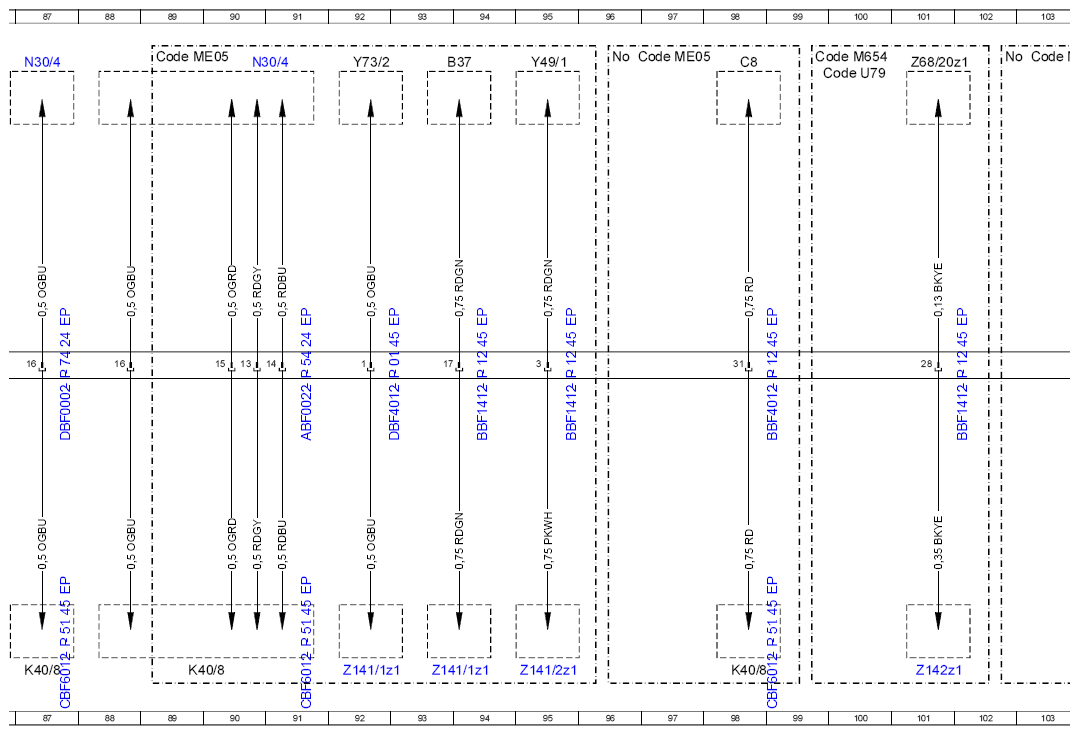

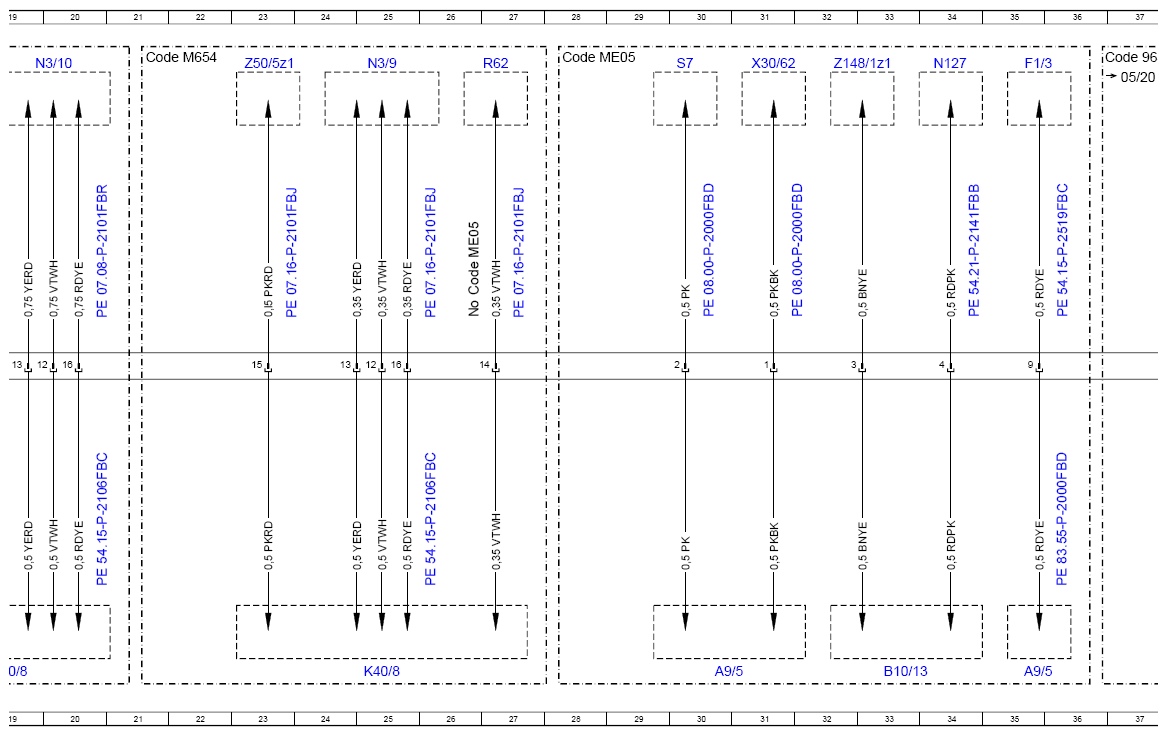

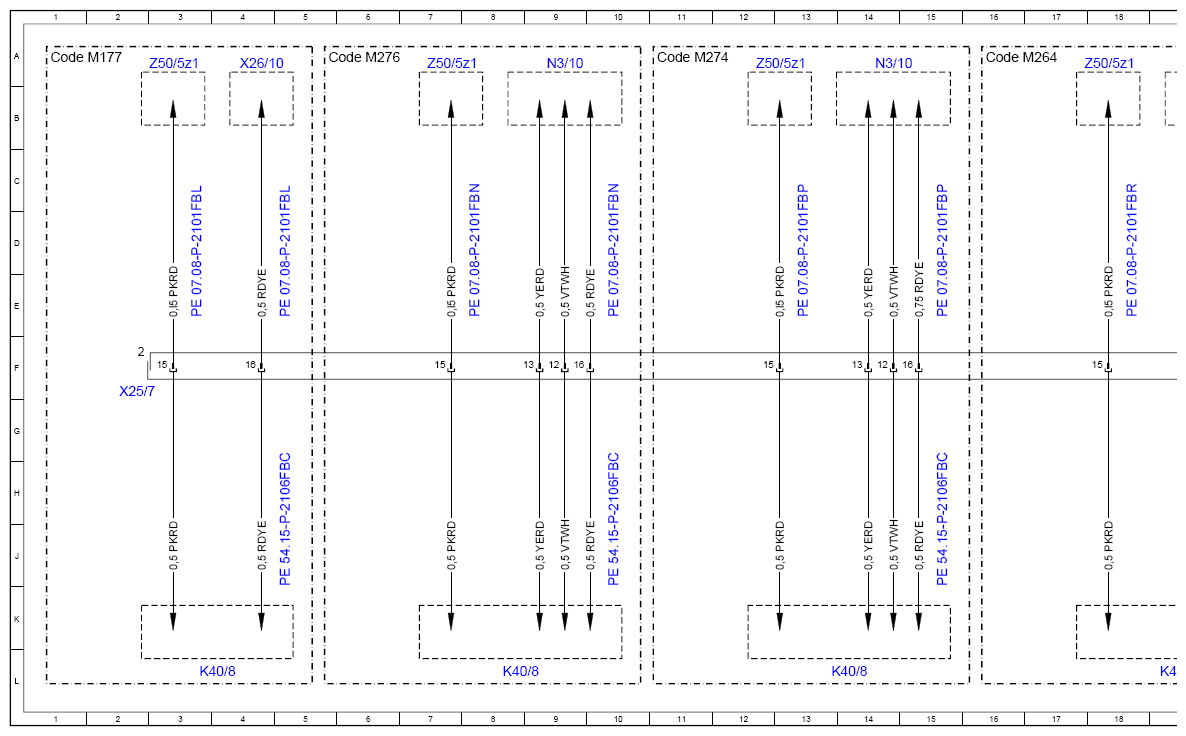

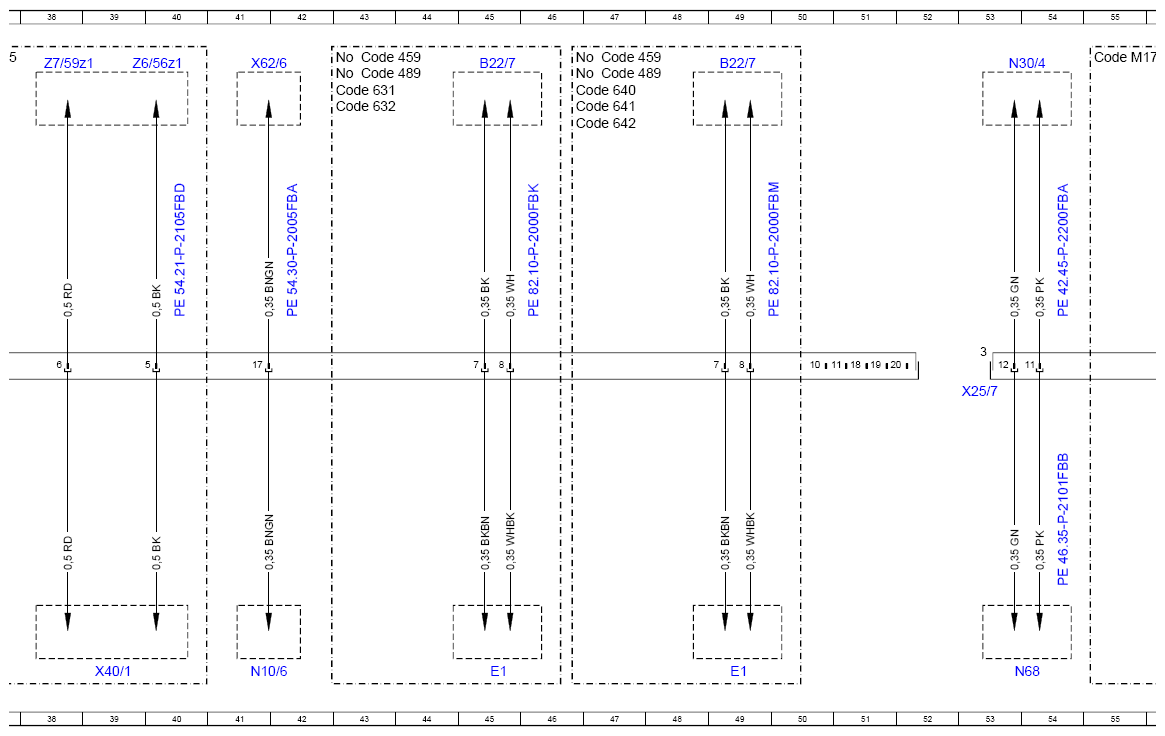

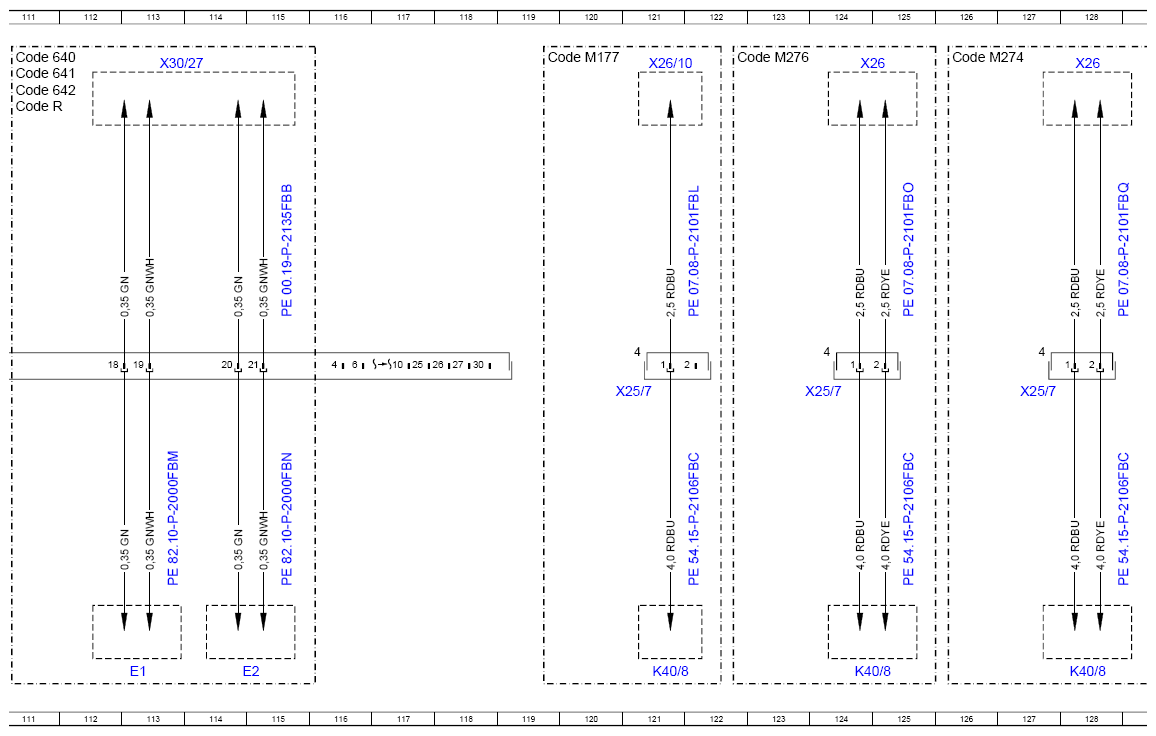

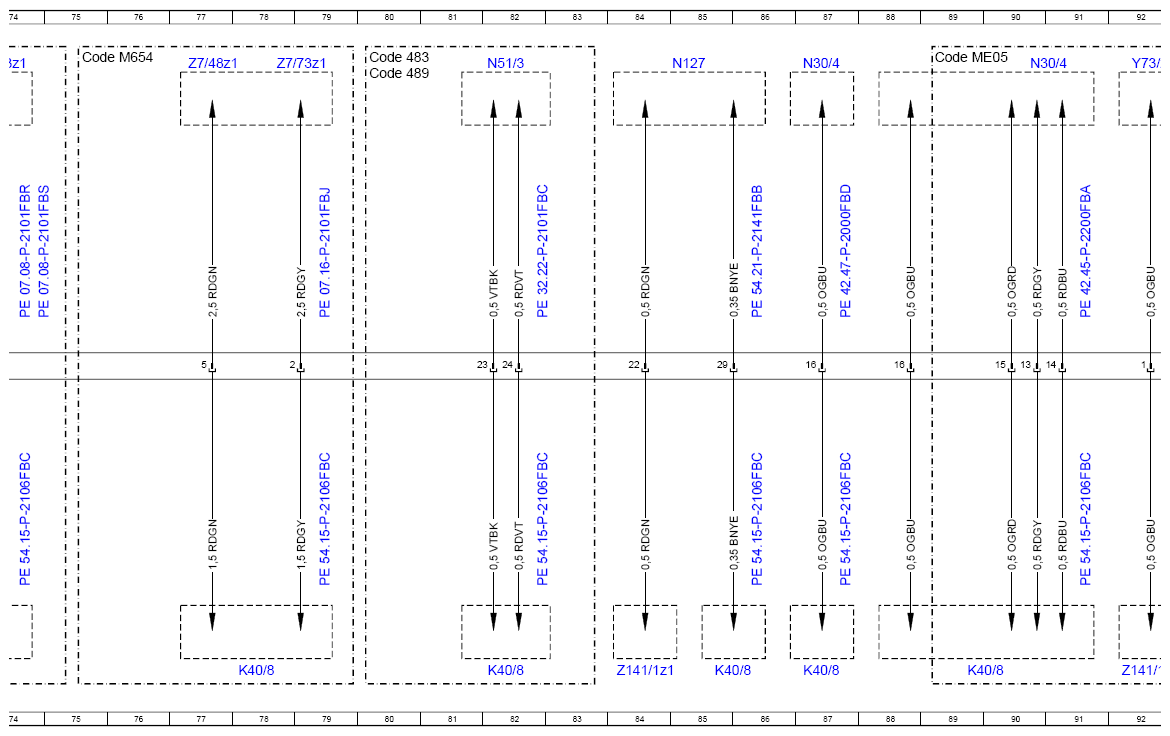

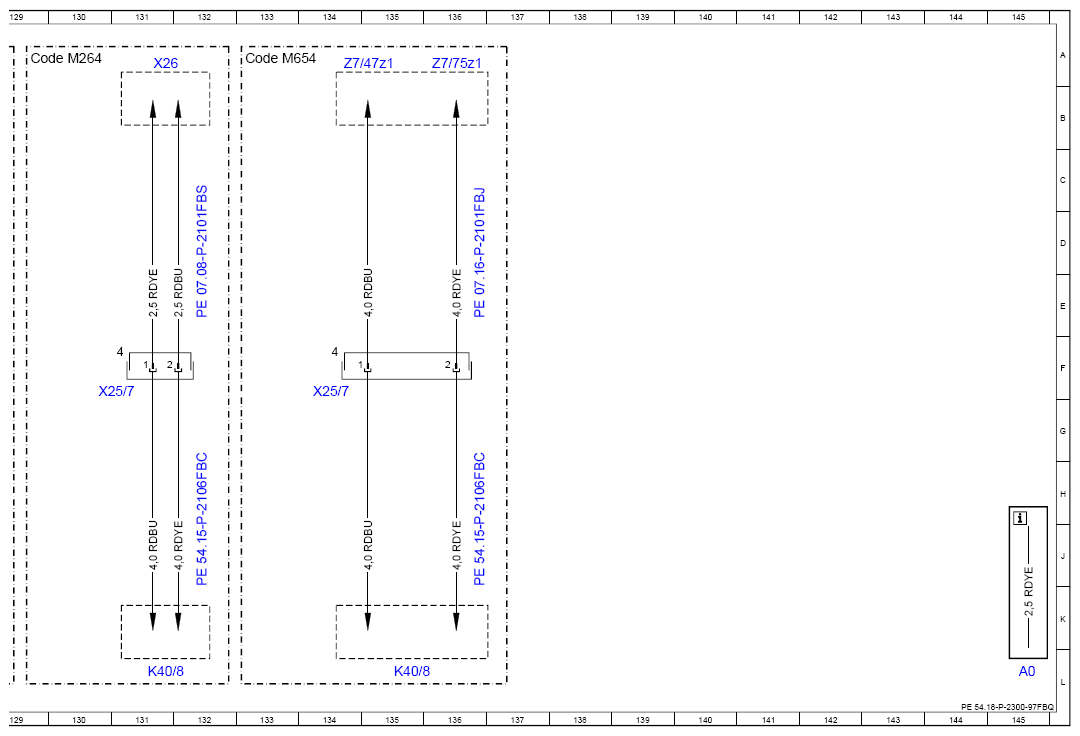

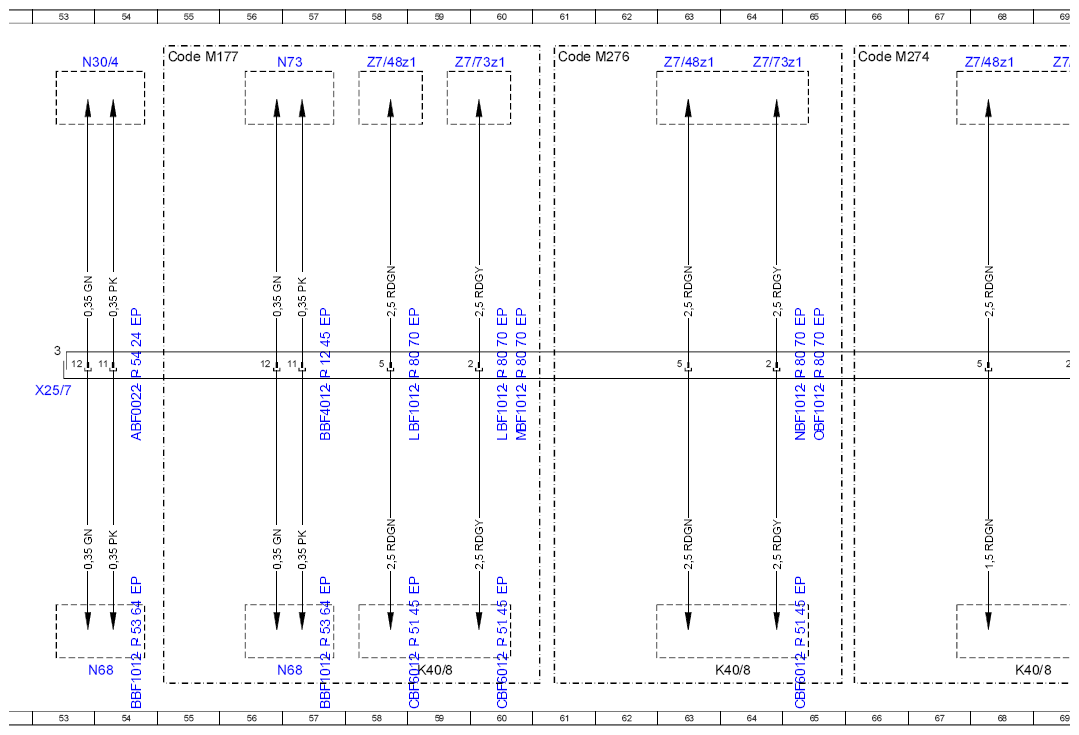

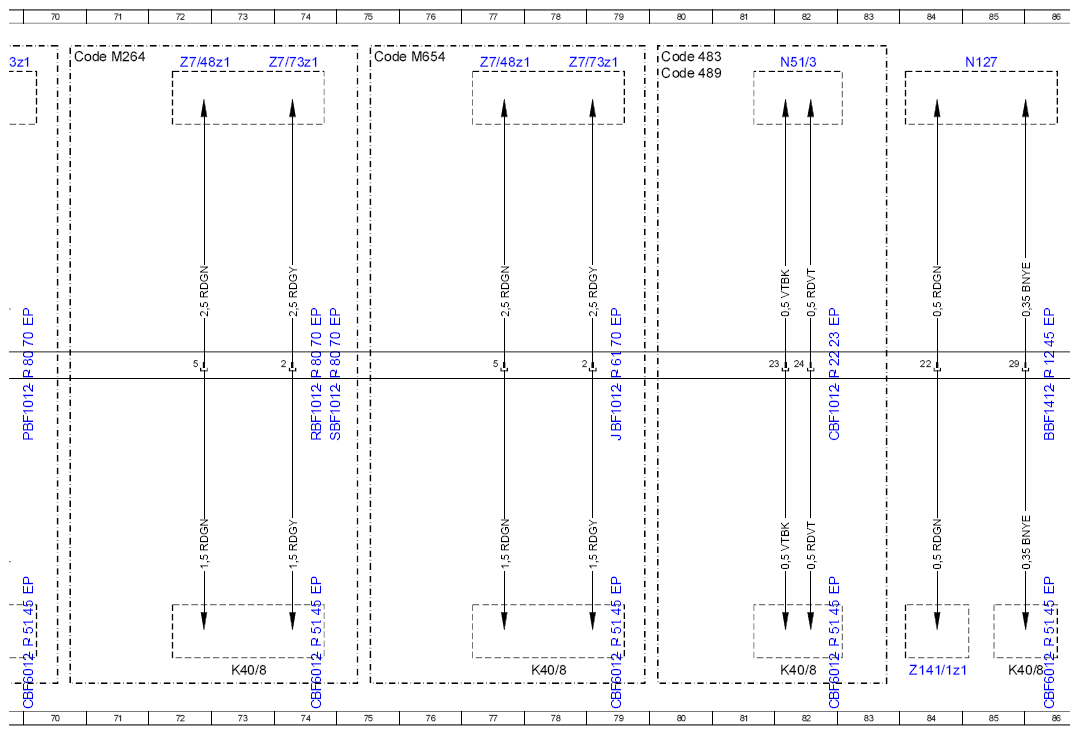

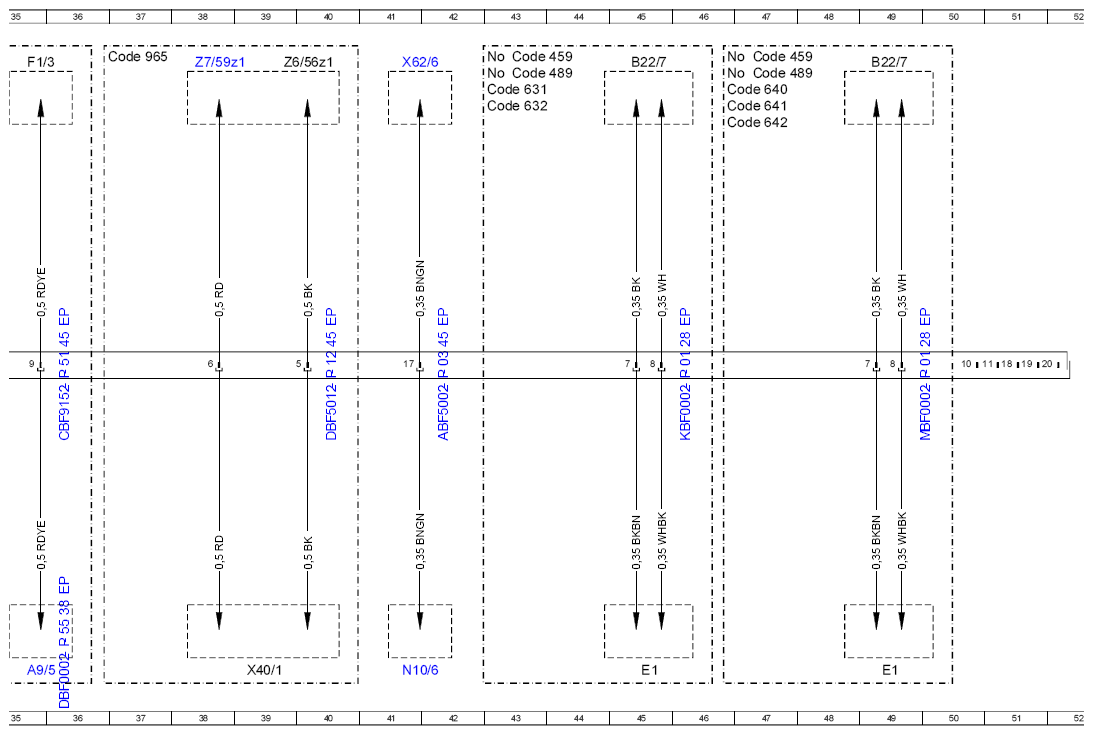

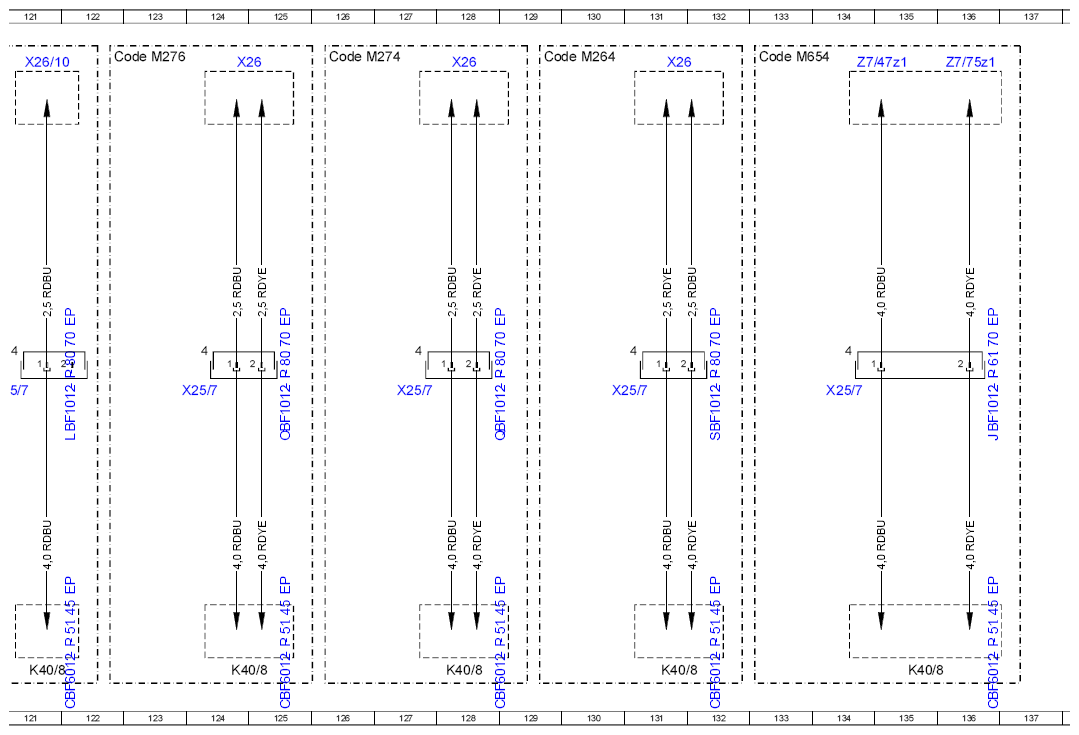

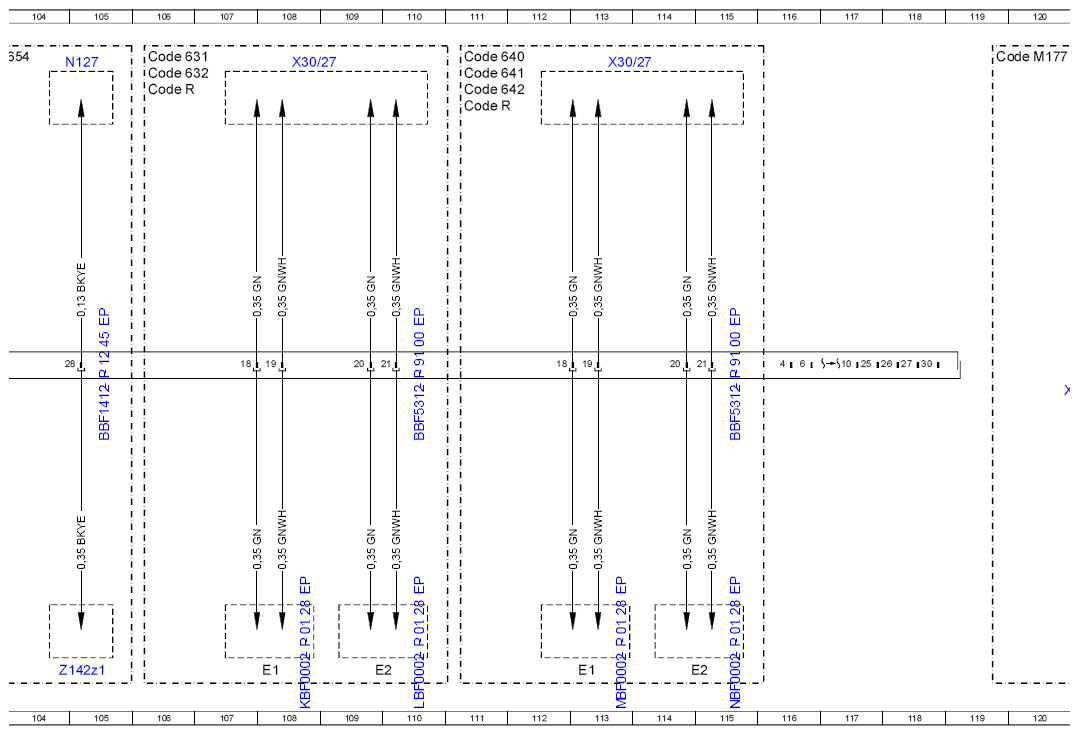

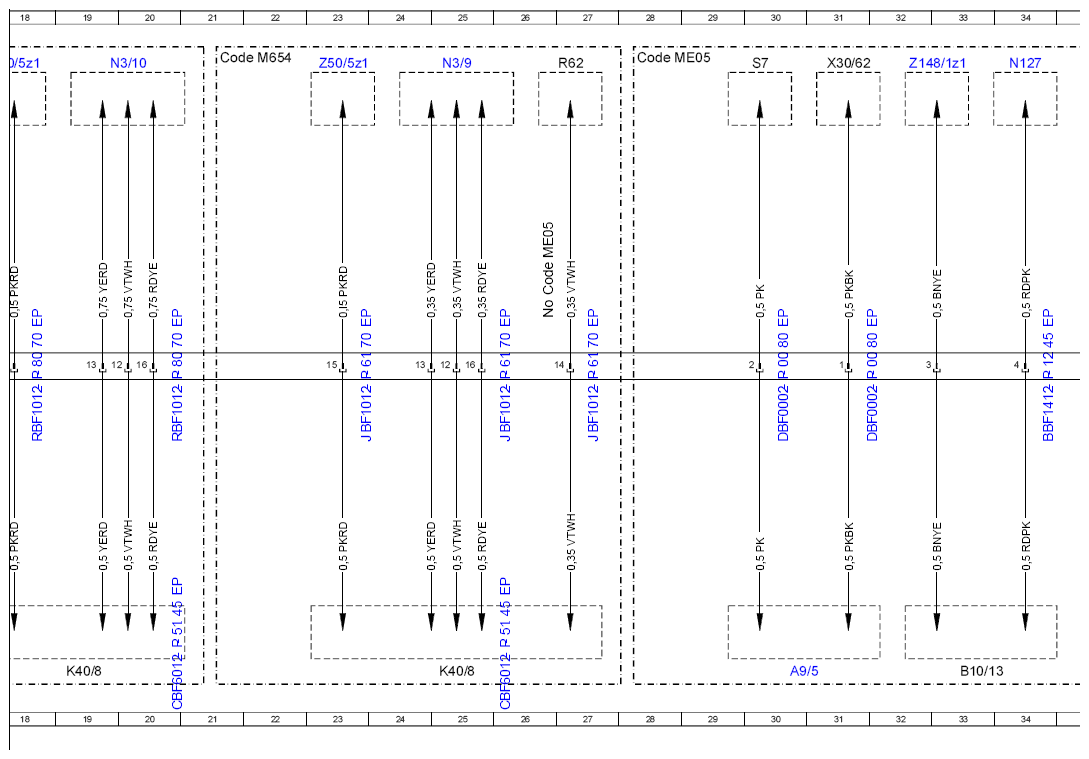

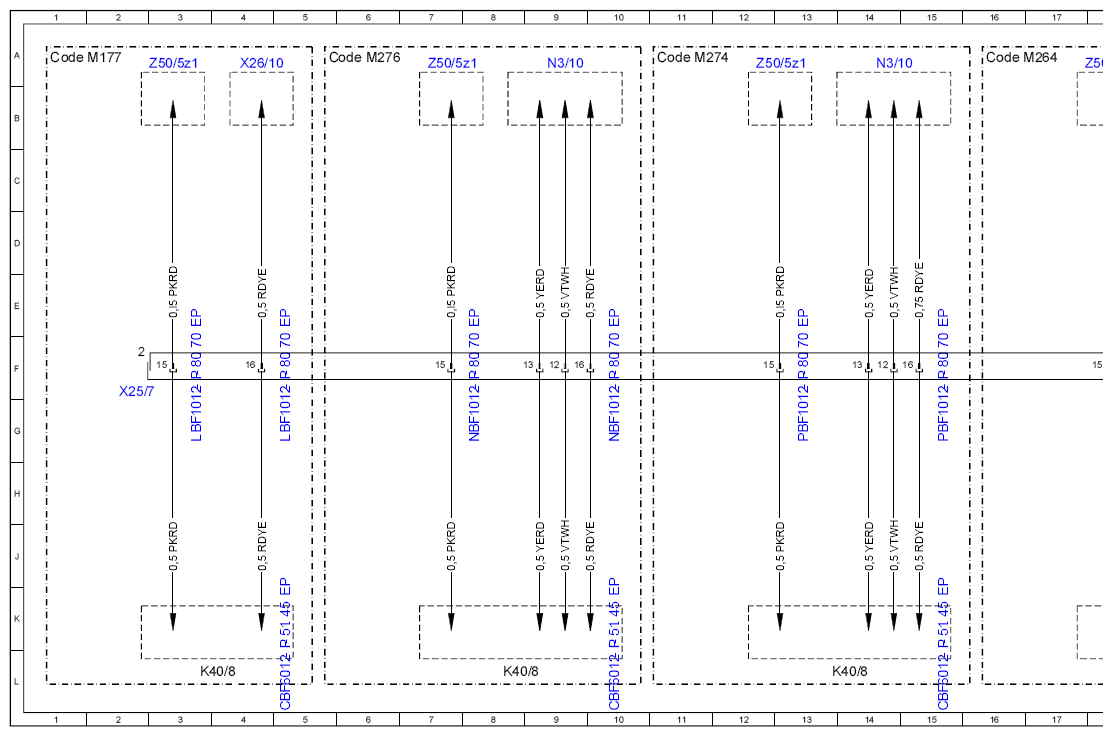

| X25/7 | Engine compartment/frame floor assembly electrical connector | 2F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 53F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 121F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 124F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 127F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 131F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 134F |
| X26 | Interior and engine wiring harness electrical connector | 131A |
| X26 | Interior and engine wiring harness electrical connector | 124A |
| X26 | Interior and engine wiring harness electrical connector | 128A |
| X26/10 | Vehicle interior/engine electrical connector | 4A |
| X26/10 | Vehicle interior/engine electrical connector | 121A |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 108A |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 113A |
| X30/62 | Power electronics control unit electrical connector | 31A |
| X40/1 | Roof sign lamp intermediate connector | 39L |
| X62/6 | Front axle electrical connector, right distributor | 41A |
| Y49/1 | Intake camshaft solenoid | 95A |
| Y73/2 | Low-temperature circuit switchover valve 2 | 92A |
| Z141/1z1 | Circuit 87 C1 connector sleeve | 84L |
| Z141/1z1 | Circuit 87 C1 connector sleeve | 92L |
| Z141/1z1 | Circuit 87 C1 connector sleeve | 93L |
| Z141/2z1 | Circuit 87C connector sleeve | 95L |
| Z142z1 | Powertrain control unit LIN connector sleeve | 101L |
| Z142z1 | Powertrain control unit LIN connector sleeve | 105L |
| Z148/1z1 | Drivetrain circuit 31 connector sleeve | 32A |
| Z50/5z1 | Tml. 15 connector sleeve | 3A |
| Z50/5z1 | Tml. 15 connector sleeve | 7A |
| Z50/5z1 | Tml. 15 connector sleeve | 12A |
| Z50/5z1 | Tml. 15 connector sleeve | 18A |
| Z50/5z1 | Tml. 15 connector sleeve | 23A |
| Z6/56z1 | Circuit 31 connector sleeve | 39A |
| Z68/20z1 | Vehicle interior LIN bus connector sleeve | 101A |
| Z7/47z1 | Circuit 87/1 connector sleeve | 134A |
| Z7/48z1 | Circuit 87/2 connector sleeve | 58A |
| Z7/48z1 | Circuit 87/2 connector sleeve | 68A |
| Z7/48z1 | Circuit 87/2 connector sleeve | 63A |
| Z7/48z1 | Circuit 87/2 connector sleeve | 72A |
| Z7/48z1 | Circuit 87/2 connector sleeve | 77A |
| Z7/59z1 | Circuit 30 power supply connector sleeve | 38A |
| Z7/73z1 | Circuit 87/4 connector sleeve | 74A |
| Z7/73z1 | Circuit 87/4 connector sleeve | 59A |
| Z7/73z1 | Circuit 87/4 connector sleeve | 64A |
| Z7/73z1 | Circuit 87/4 connector sleeve | 69A |
| Z7/73z1 | Circuit 87/4 connector sleeve | 78A |
| Z7/75z1 | Circuit 87/3 connector sleeve | 136A |
