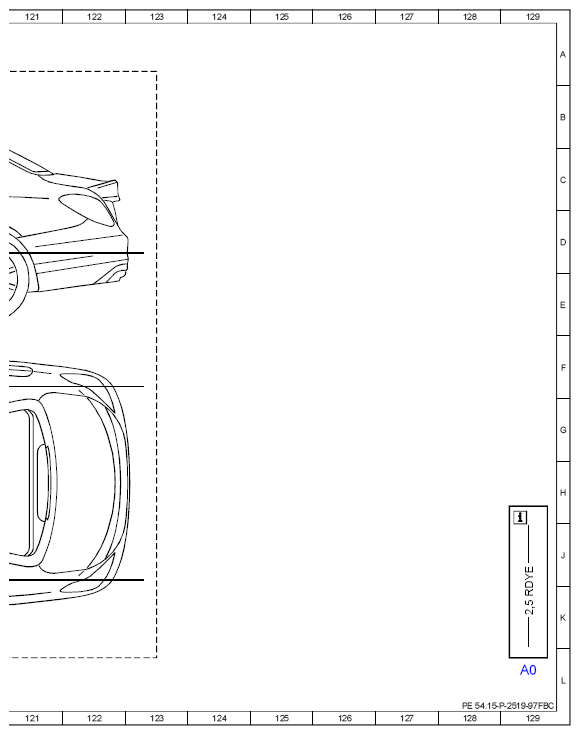

Wiring Diagram Of Passenger-Side A-Pillar Fuse Box - PE54.15-P-2519-97FBC
Model 205
as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 129L |
| A1 | Instrument cluster | 95L |
| A1 | Instrument cluster | 96L |
| A105 | Touchpad | 61L |
| A2/155 | Telephone and stationary heater antenna changeover switch | 75L |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 92L |
| A26/17 | Head unit | 16L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 73L |
| A40/12 | Head-up display | 65L |
| A40/8 | Audio/COMAND display | 49L |
| A40/9 | Audio/COMAND control panel | 62L |
| A40/9 | Audio/COMAND control panel | 61L |
| A6 | Stationary heater unit | 27L |
| A76 | Left front reversible emergency tensioning retractor | 60L |
| A76/1 | Right front reversible emergency tensioning retractor | 64L |
| A9/5 | Electric refrigerant compressor | 68L |
| A90/5 | Multimedia connection unit | 67L |
| A98 | Panoramic sliding roof control module | 45L |
| A98/1 | Sliding roof control module | 46L |
| B38/2 | Rain/light sensor with additional functions | 52L |
| B44/1 | Left front door interior protection sensor | 24K |
| B44/2 | Right front door interior protection sensor | 24K |
| B44/3 | Left rear interior protection sensor | 24L |
| B44/4 | Right rear interior protection sensor | 24L |
| B92/12 | Short and long-range radar sensor | 31L |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 19J |
| Code 222 | Electrically adjustable right front seat | 22J |
| Code 228 | Stationary heater | 27J |
| Code 233 | AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS | 31J |
| Code 241 | All-electric front passenger seat with memory (left) | 19J |
| Code 242 | All-electric front passenger seat with memory (right) | 22J |
| Code 275 | Memory package | 19J |
| Code 275 | Memory package | 23J |
| Code 299 | PRE-SAFE® | 64J |
| Code 299 | PRE-SAFE® | 60J |
| Code 362 | HERMES LTE | 28J |
| Code 364 | HERMES UMTS communications module for Russia | 29J |
| Code 401 | Seat climate control for driver and front passenger | 21J |
| Code 401 | Seat climate control for driver and front passenger | 18J |
| Code 413 | Panoramic sliding sunroof | 45J |
| Code 414 | Sliding roof | 46J |
| Code 448 | Touchpad | 62J |
| Code 448 | Touchpad | 61J |
| Code 459 | DYNAMIC BODY CONTROL suspension with adjustment damping | 41J |
| Code 463 | Head-up display | 65J |
| Code 464 | Digital instrument cluster full display | 80J |
| Code 464 | Digital instrument cluster full display | 95J |
| Code 466 | Active engine mount | 8J |
| Code 466 | Active engine mount | 30J |
| Code 488 | Chassis with steel/air suspension | 40J |
| Code 489 | AIRMATIC | 40J |
| Code 506 | Audio 20 NTG 5.5 radio | 17J |
| Code 531 | COMAND APS | 17J |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 24J |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 89J |
| Code 581 | THERMOTRONIC automatic air conditioning | 79J |
| Code 830 | Additional parts for China vehicles | 76J |
| Code 873 | Seat heater for driver and front passenger | 18J |
| Code 873 | Seat heater for driver and front passenger | 21J |
| Code 882 | Interior protection and tow-away protection | 24J |
| Code 882 | Interior protection and tow-away protection | 89J |
| Code 889 | KEYLESS-GO | 90J |
| Code 897 | Wireless mobile phone charging | 73J |
| Code 899 | Multifunction telephony | 74J |
| Code 899 | Multifunction telephony | 73J |
| Code B01 | 48V technology | 10J |
| Code B01 | 48V technology | 39J |
| Code B24 | Radio remote control for stationary heater | 75J |
| Code FA | CABRIOLET | 15J |
| Code FA | CABRIOLET | 34J |
| Code FC | COUPE | 15J |
| Code FC | COUPE | 34J |
| Code FS | STATION WAGON | 13J |
| Code FS | STATION WAGON | 33J |
| Code FV | LONG SEDAN | 13J |
| Code FV | LONG SEDAN | 33J |
| Code FW | SEDAN | 13J |
| Code FW | SEDAN | 32J |
| Code L | LEFT-HAND DRIVE | 11L |
| Code L | LEFT-HAND DRIVE | 12J |
| Code L | LEFT-HAND DRIVE | 22J |
| Code L | LEFT-HAND DRIVE | 111F |
| Code M177 | SPARK-IGNITION ENGINE M177 | 30J |
| Code M177 | SPARK-IGNITION ENGINE M177 | 36J |
| Code M276 | SPARK-IGNITION ENGINE M276 | 36J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 7J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 26J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 37J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 1E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 68J |
| Code R | RIGHT-HAND DRIVE | 11L |
| Code R | RIGHT-HAND DRIVE | 12J |
| Code R | RIGHT-HAND DRIVE | 18J |
| Code R | RIGHT-HAND DRIVE | 111K |

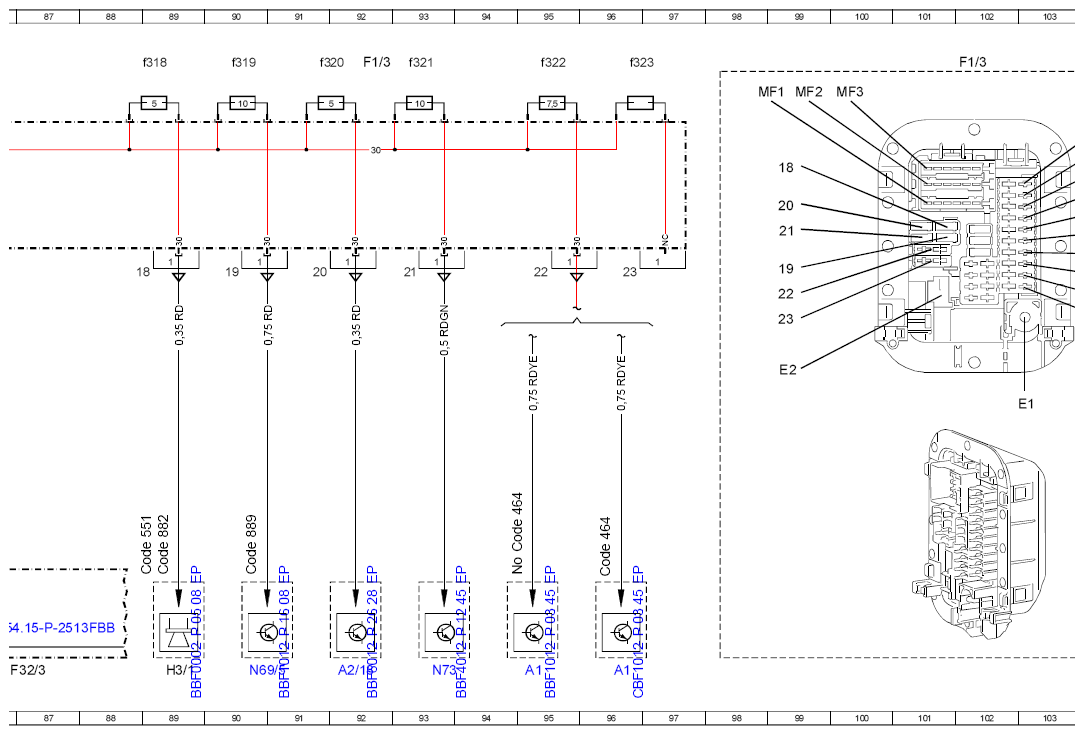

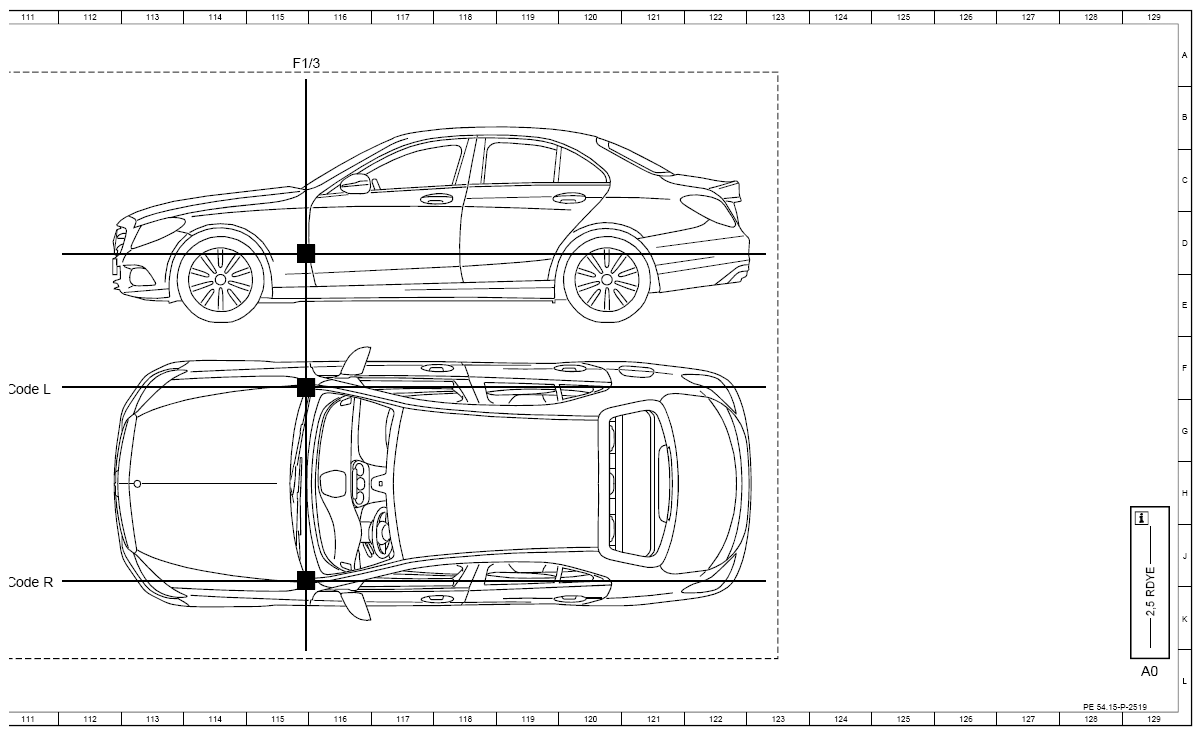

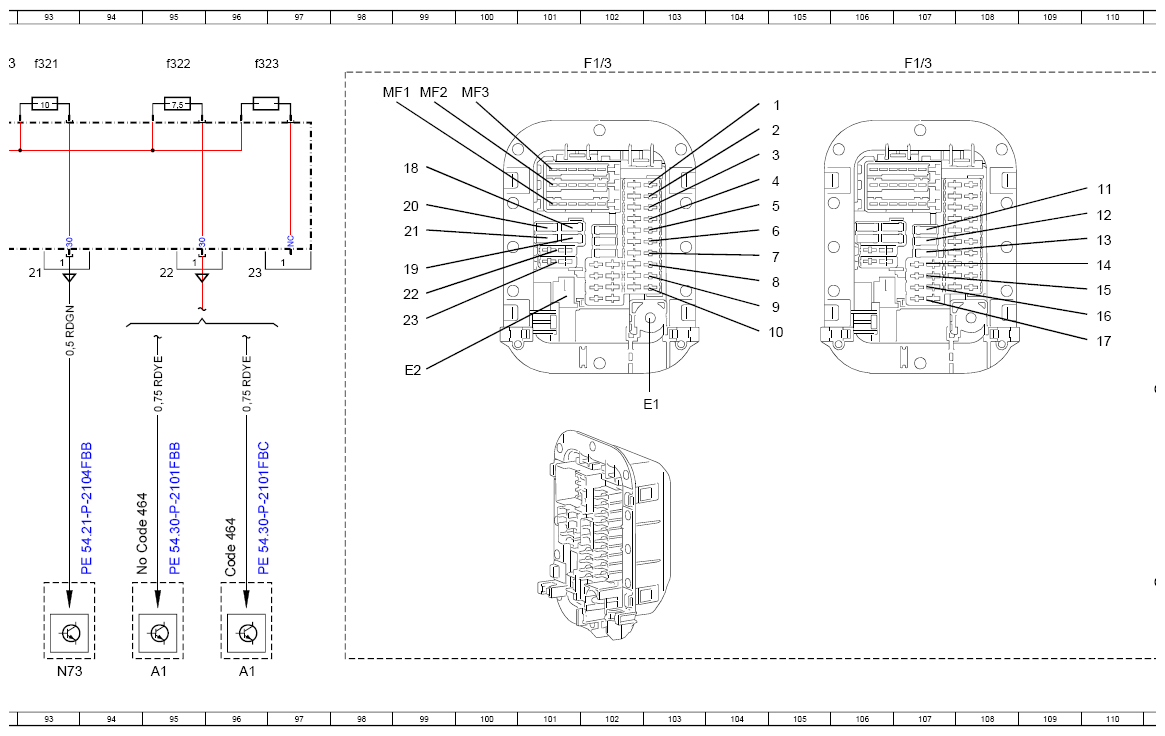

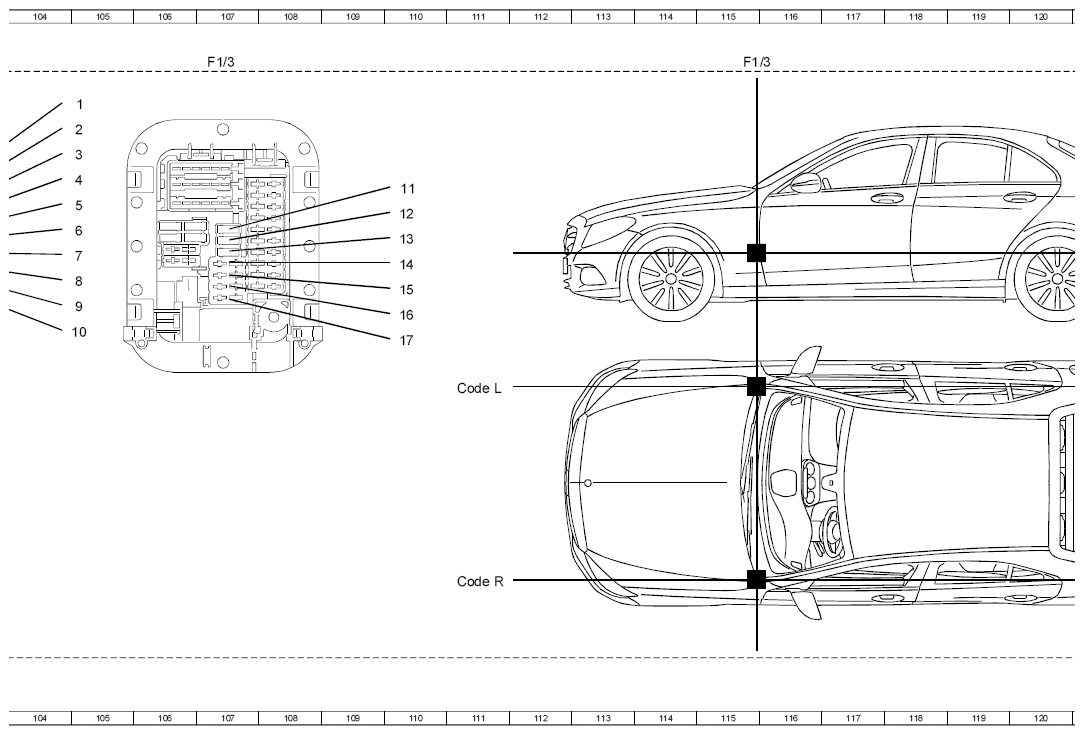

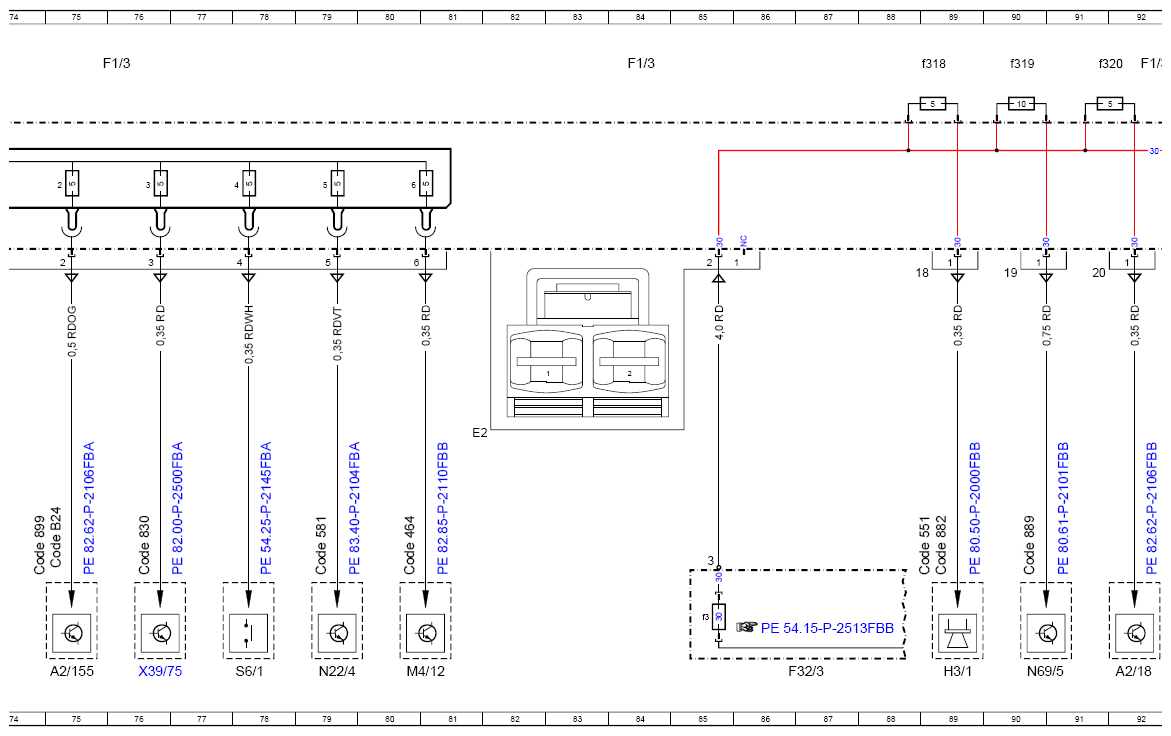

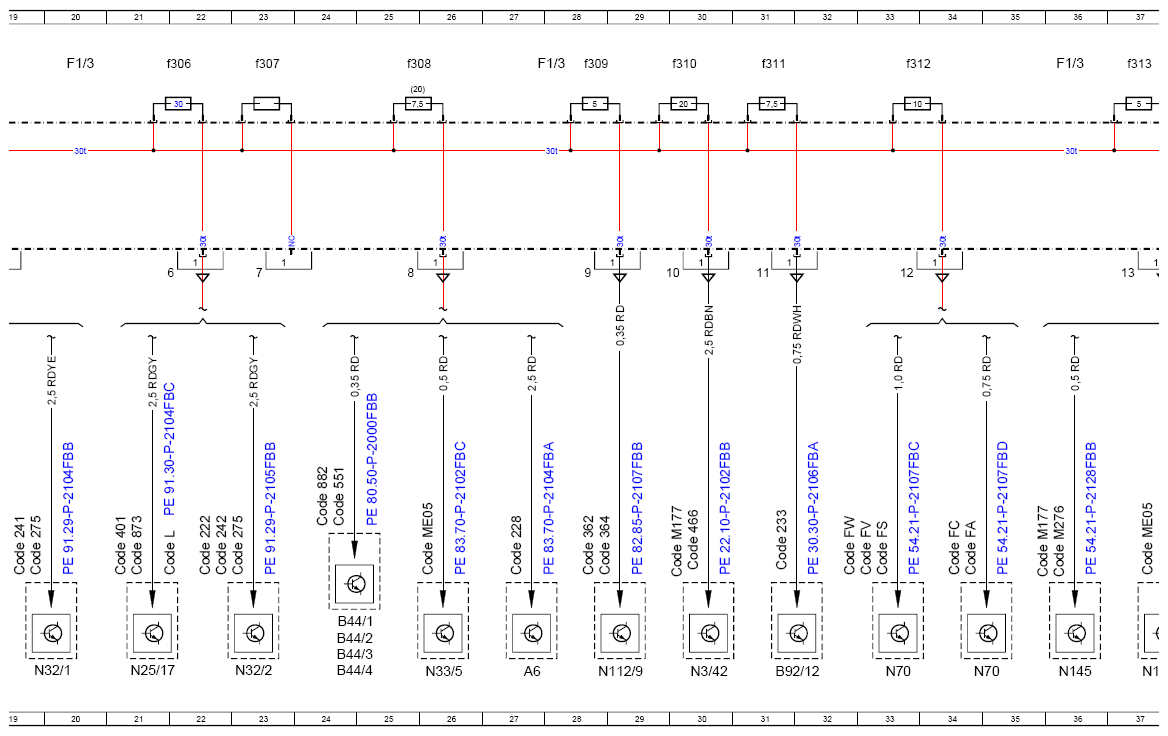

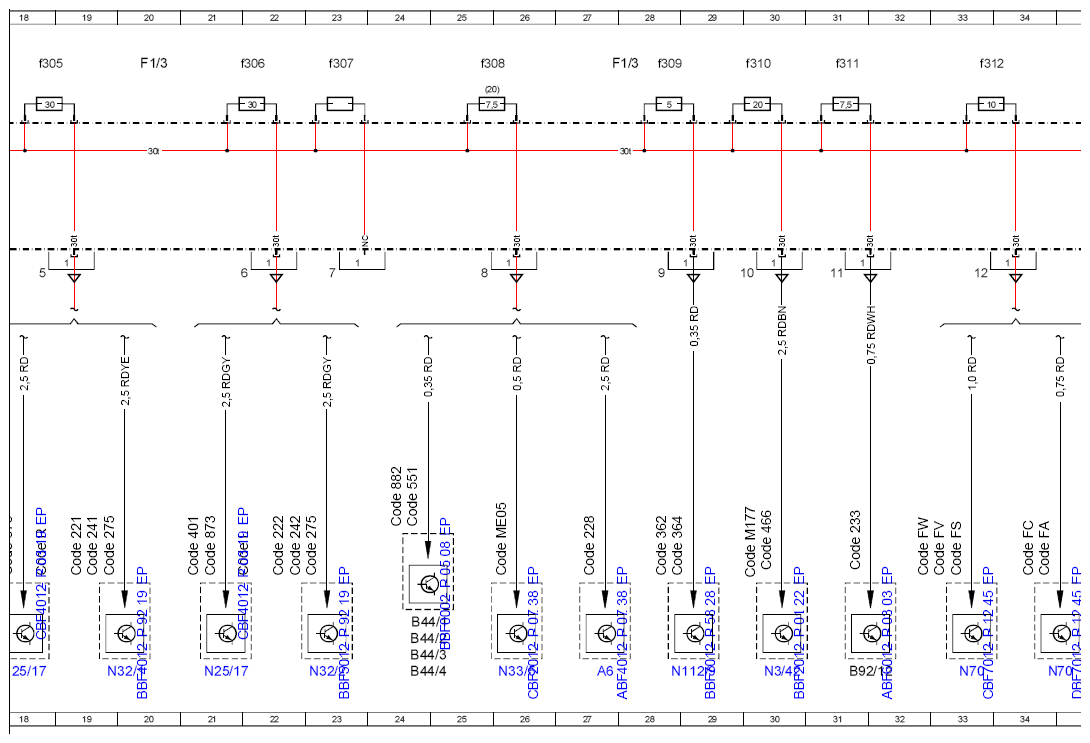

| F1/3 | Passenger-side A-pillar fuse box | 4A |
| F1/3 | Passenger-side A-pillar fuse box | 12A |
| F1/3 | Passenger-side A-pillar fuse box | 20A |
| F1/3 | Passenger-side A-pillar fuse box | 28A |
| F1/3 | Passenger-side A-pillar fuse box | 36A |
| F1/3 | Passenger-side A-pillar fuse box | 43A |
| F1/3 | Passenger-side A-pillar fuse box | 51A |
| F1/3 | Passenger-side A-pillar fuse box | 57A |
| F1/3 | Passenger-side A-pillar fuse box | 59A |
| F1/3 | Passenger-side A-pillar fuse box | 68A |
| F1/3 | Passenger-side A-pillar fuse box | 76A |
| F1/3 | Passenger-side A-pillar fuse box | 84A |
| F1/3 | Passenger-side A-pillar fuse box | 92A |
| F1/3 | Passenger-side A-pillar fuse box | 102A |
| F1/3 | Passenger-side A-pillar fuse box | 107A |
| F1/3 | Passenger-side A-pillar fuse box | 115A |

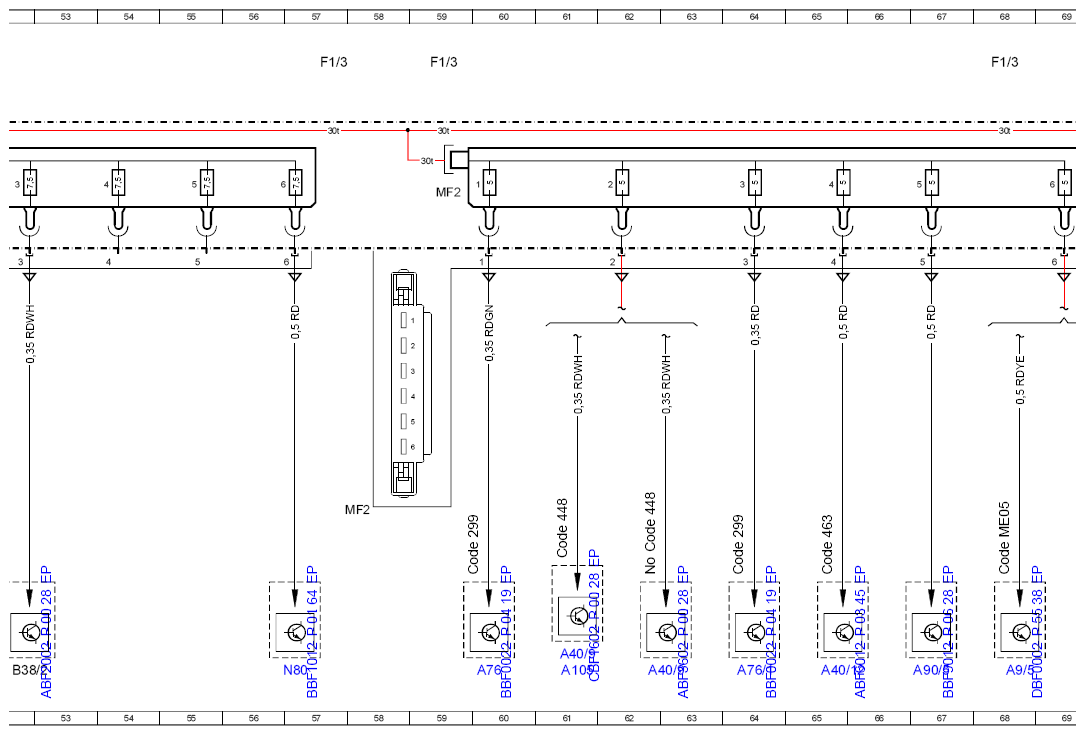

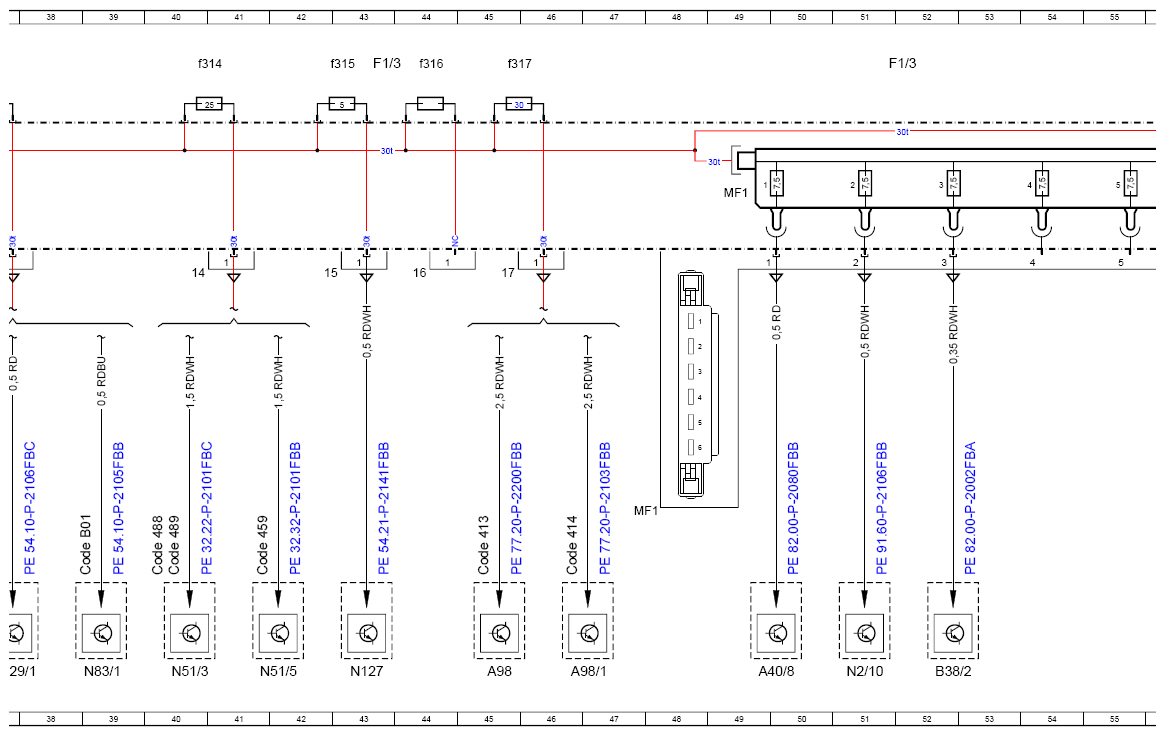

| F1/3MF1 | Multiple fuse 1 | 49C |

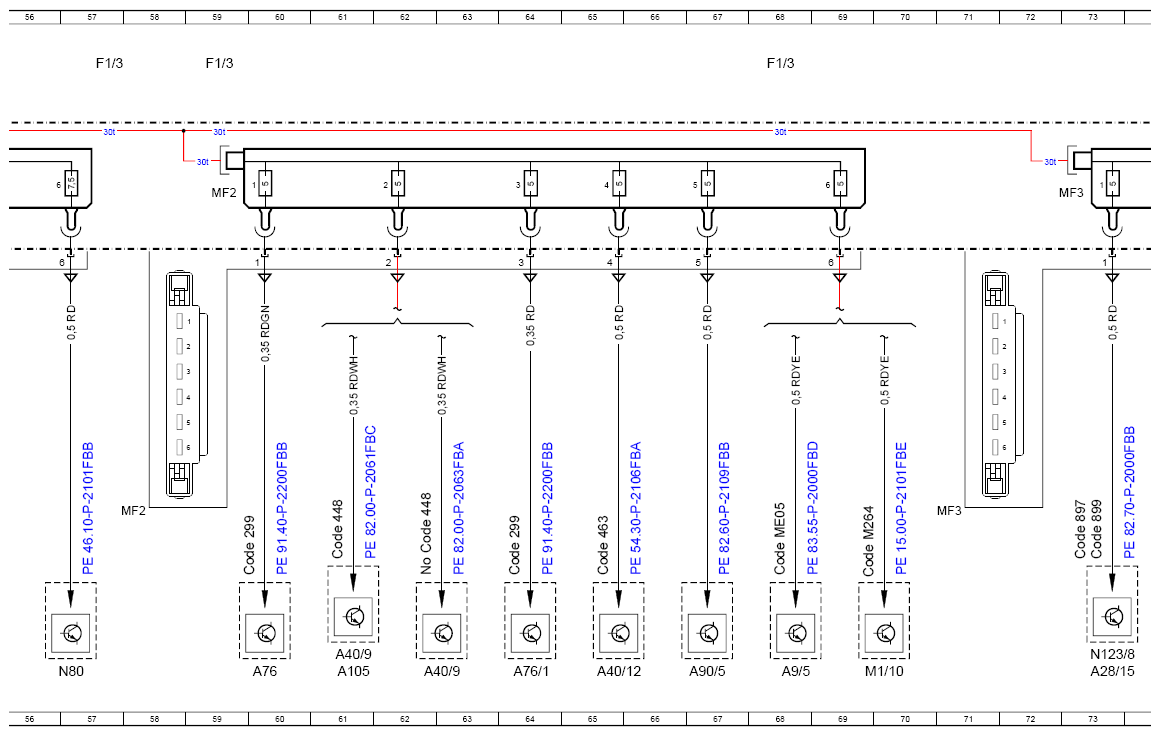

| F1/3MF2 | Multiple fuse 2 | 59C |

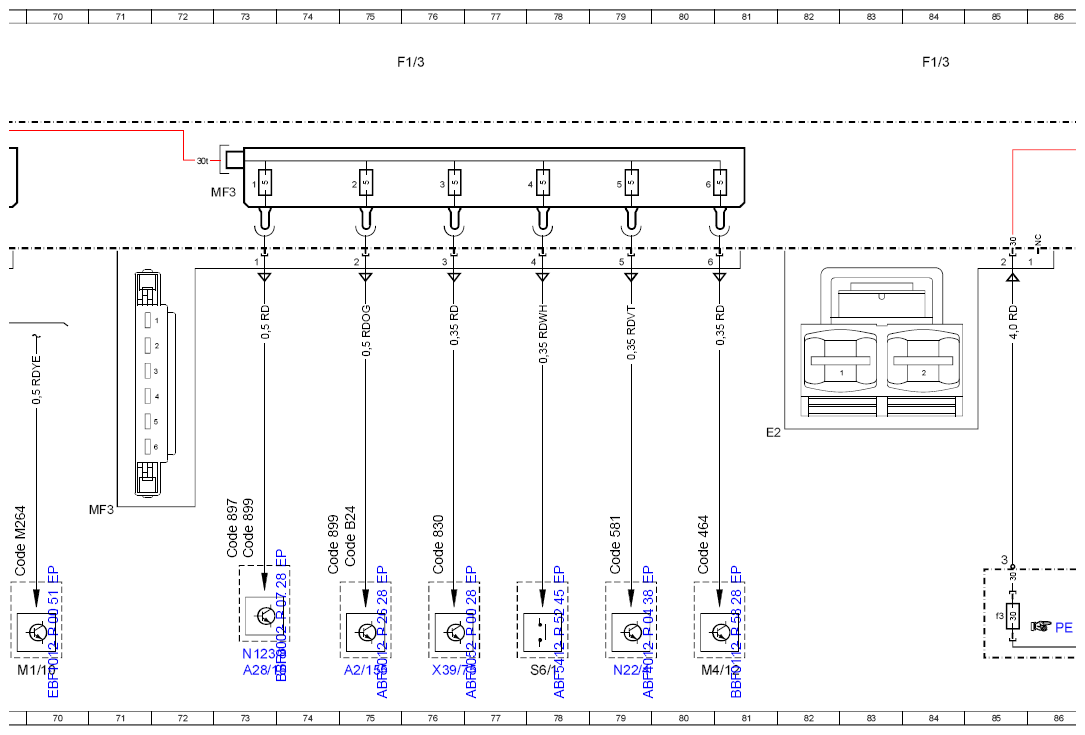

| F1/3MF3 | Multiple fuse 3 | 73C |

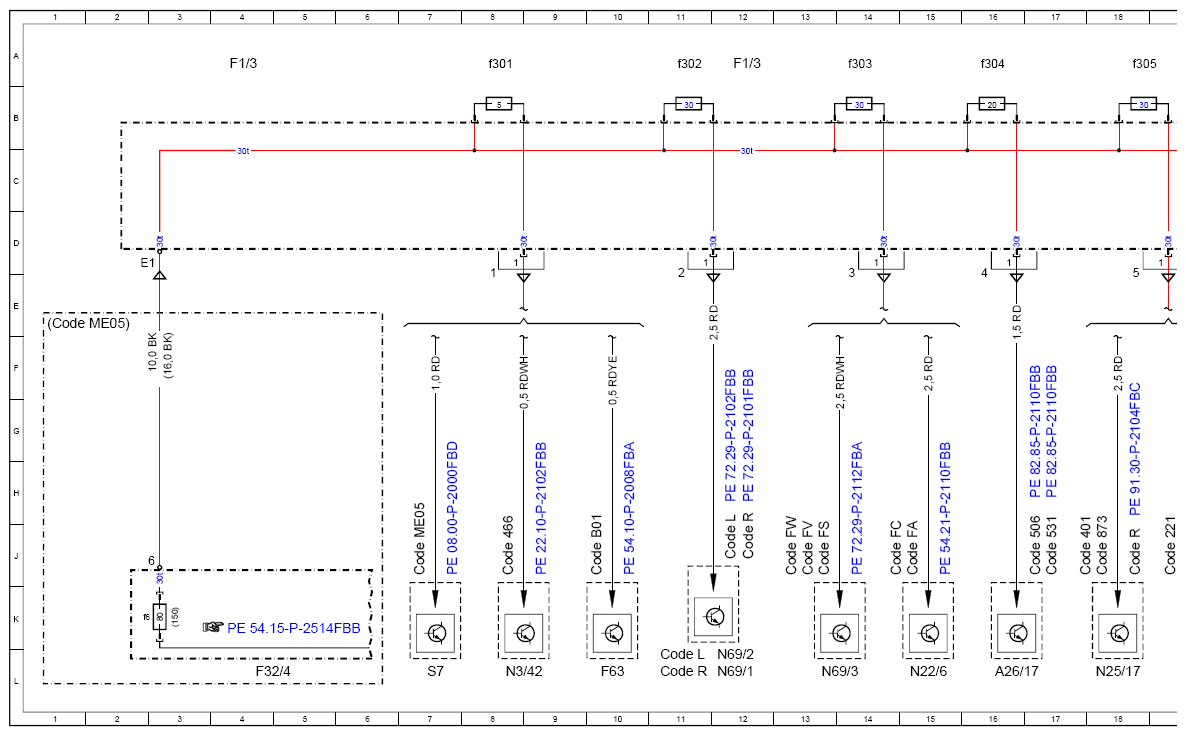

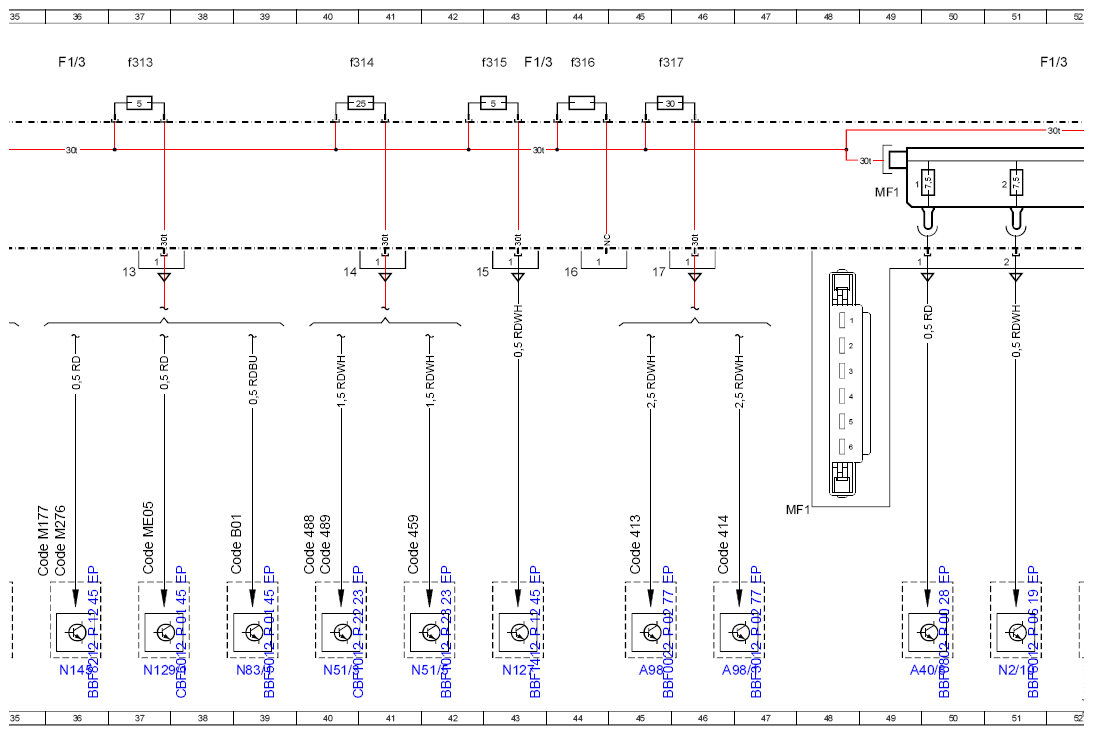

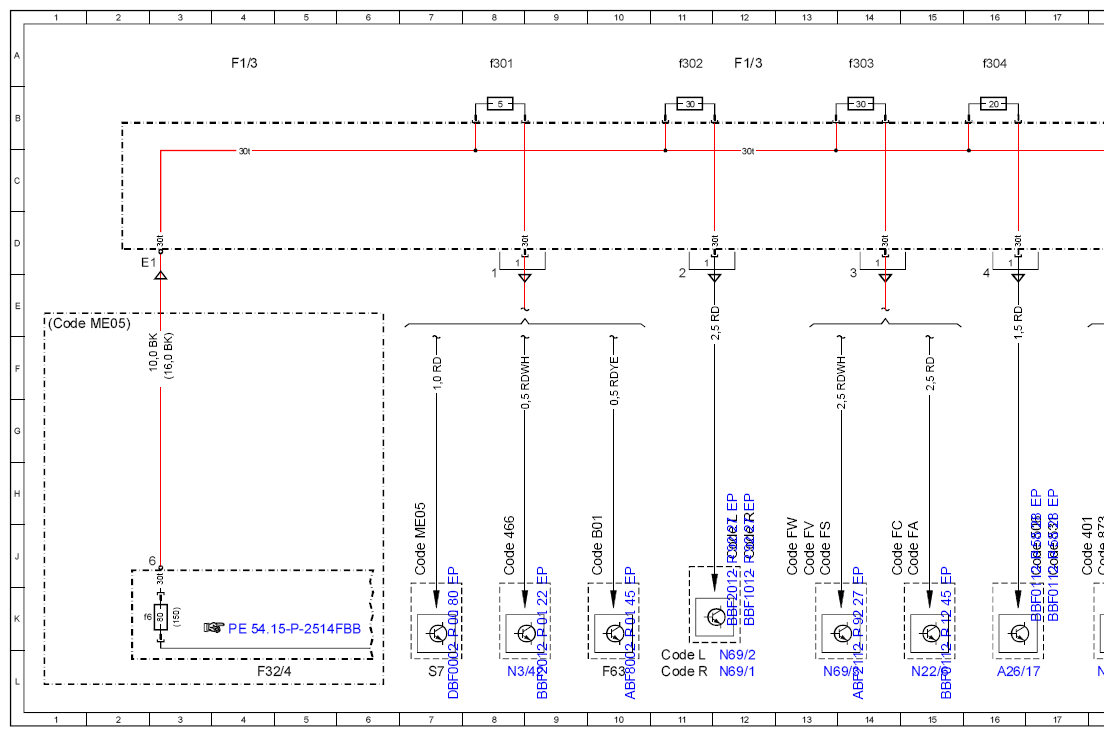

| F1/3f301 | Fuse 301 | 8A |
| F1/3f302 | Fuse 302 | 11A |
| F1/3f303 | Fuse 303 | 14A |
| F1/3f304 | Fuse 304 | 16A |
| F1/3f305 | Fuse 305 | 18A |
| F1/3f306 | Fuse 306 | 22A |
| F1/3f307 | Fuse 307 | 23A |
| F1/3f308 | Fuse 308 | 25A |
| F1/3f309 | Fuse 309 | 28A |
| F1/3f310 | Fuse 310 | 30A |
| F1/3f311 | Fuse 311 | 31A |
| F1/3f312 | Fuse 312 | 33A |
| F1/3f313 | Fuse 313 | 37A |
| F1/3f314 | Fuse 314 | 40A |
| F1/3f315 | Fuse 315 | 43A |
| F1/3f316 | Fuse 316 | 44A |
| F1/3f317 | Fuse 317 | 45A |
| F1/3f318 | Fuse 318 | 89A |
| F1/3f319 | Fuse 319 | 90A |
| F1/3f320 | Fuse 320 | 91A |
| F1/3f321 | Fuse 321 | 93A |
| F1/3f322 | Fuse 322 | 95A |
| F1/3f323 | Electrical fuse 323 | 96A |
| F32/3 | Engine compartment prefuse box | 87L |
| F32/3f3 | Fuse 3 | 85K |
| F32/4 | Vehicle interior prefuse box | 4L |
| F32/4f6 | Fuse 6 | 2K |
| F63 | Pyrofuse | 10L |
| H3/1 | Alarm siren | 89L |
| M1/10 | Starter-alternator | 70L |
| M4/12 | Audio equipment fan motor | 80L |
| N112/9 | HERMES control unit | 29L |
| N123/8 | Mobile phone cradle control unit | 73L |
| N127 | Drivetrain control unit | 43L |
| N129/1 | Power electronics control unit | 37L |
| N145 | Transmission mode control unit | 36L |
| N2/10 | Supplemental restraint system control unit | 51L |
| N22/4 | Rear air conditioning operating unit | 79L |
| N22/6 | Rear control unit | 15L |
| N25/17 | Front seat heater control unit | 21L |
| N25/17 | Front seat heater control unit | 18L |
| N3/42 | Active engine mounts control unit | 8L |
| N3/42 | Active engine mounts control unit | 30L |
| N32/1 | Driver seat control unit | 19L |
| N32/2 | Front passenger seat control unit | 23L |
| N33/5 | High-voltage PTC heater | 26L |
| N51/3 | AIRMATIC control unit | 40L |
| N51/5 | Adaptive damping system control unit | 41L |
| N69/1 | Left front door control unit | 12L |
| N69/2 | Right front door control unit | 12L |
| N69/3 | Left rear door control unit | 13L |
| N69/5 | KEYLESS-GO control unit | 90L |
| N70 | Overhead control panel control unit | 34L |
| N70 | Overhead control panel control unit | 33L |
| N73 | Electronic ignition switch control unit | 93L |
| N80 | Steering column module control unit | 57L |
| N83/1 | DC/DC converter control unit | 39L |
| S6/1 | Driver-side instrument panel button group | 78L |
| S7 | High-voltage disconnect device | 7L |
| X39/75 | Rear USB electrical connector | 76L |
