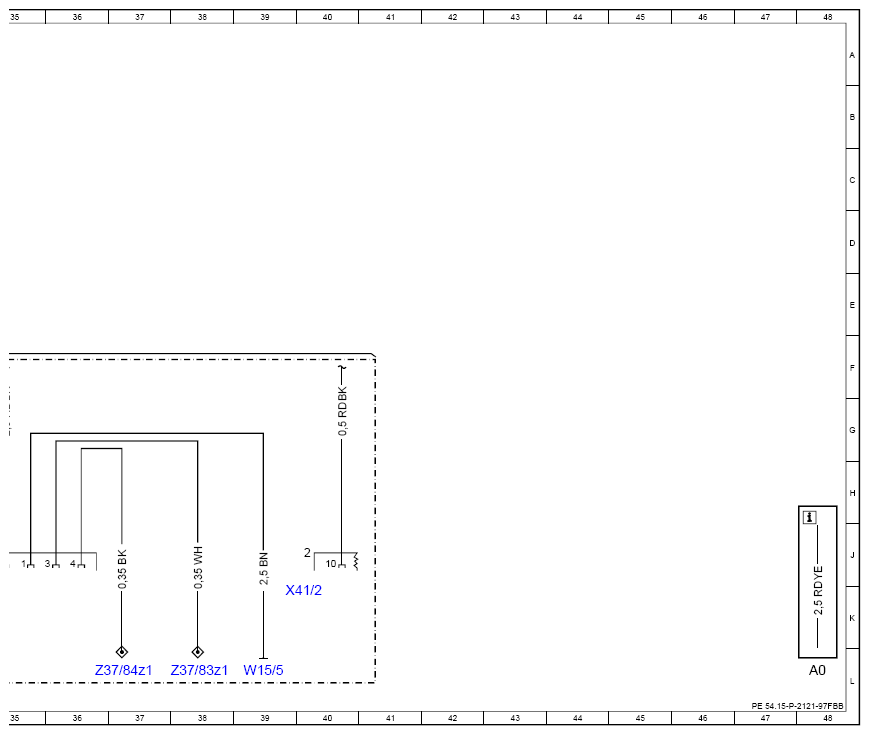

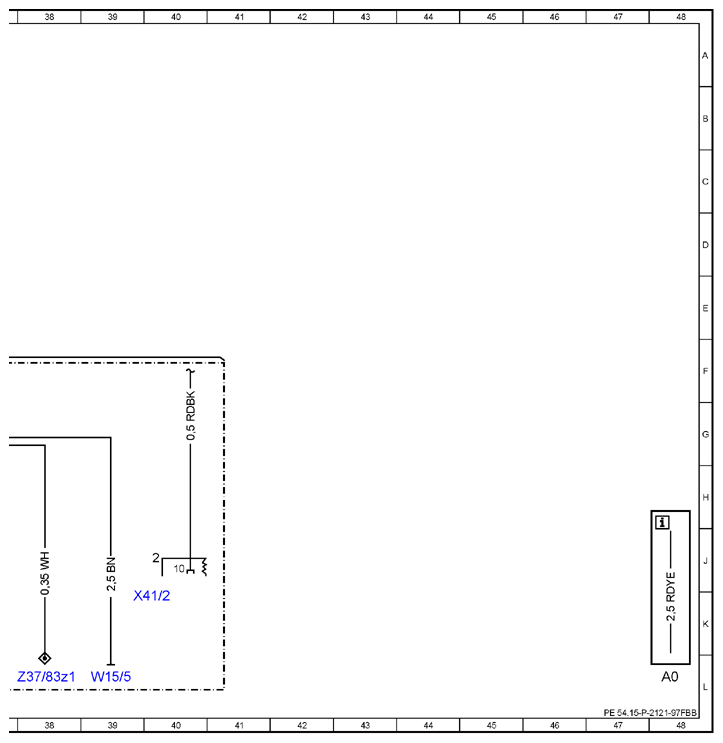

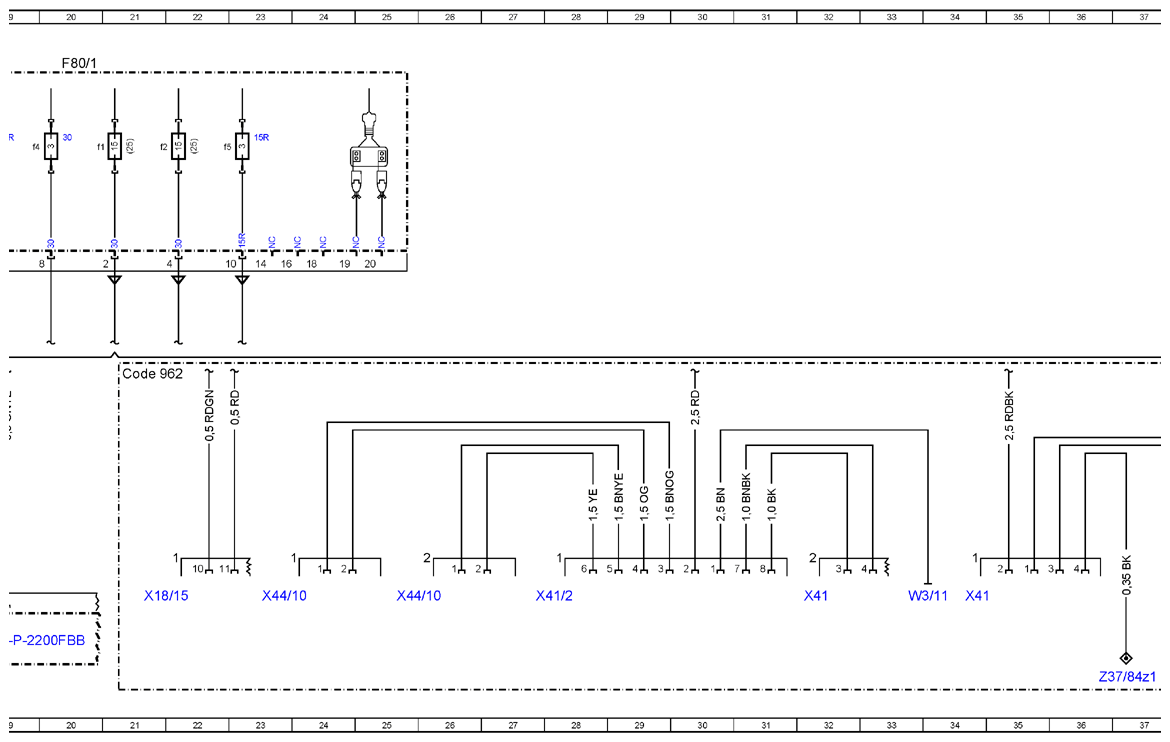

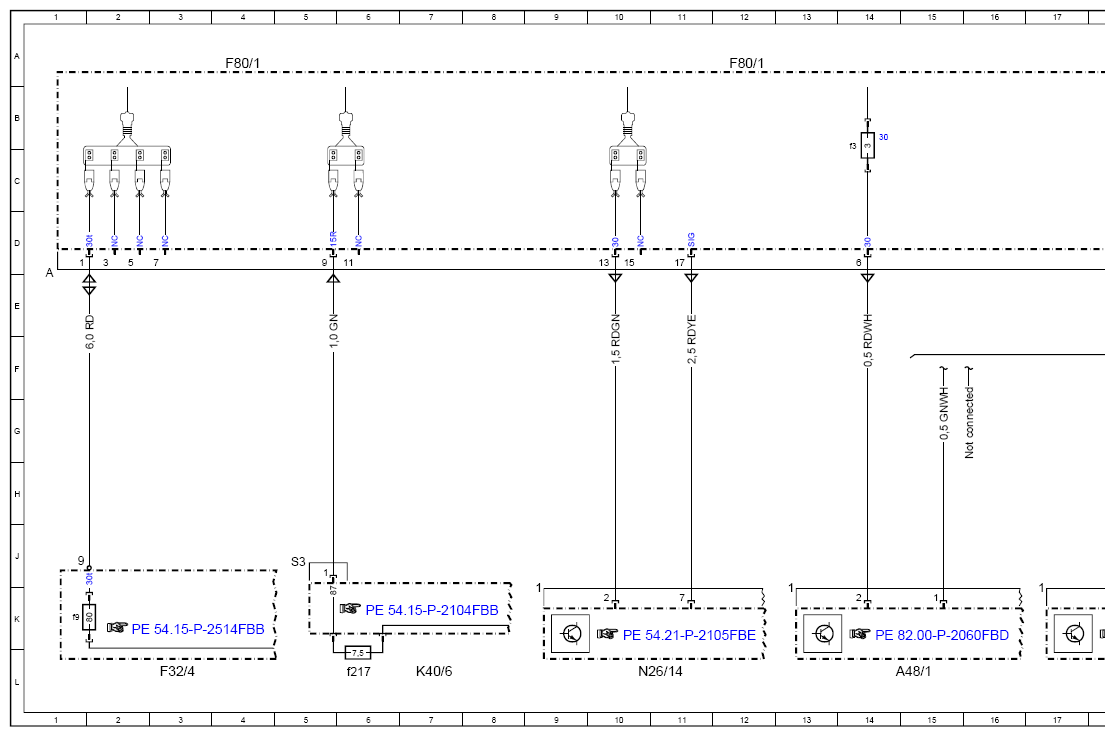

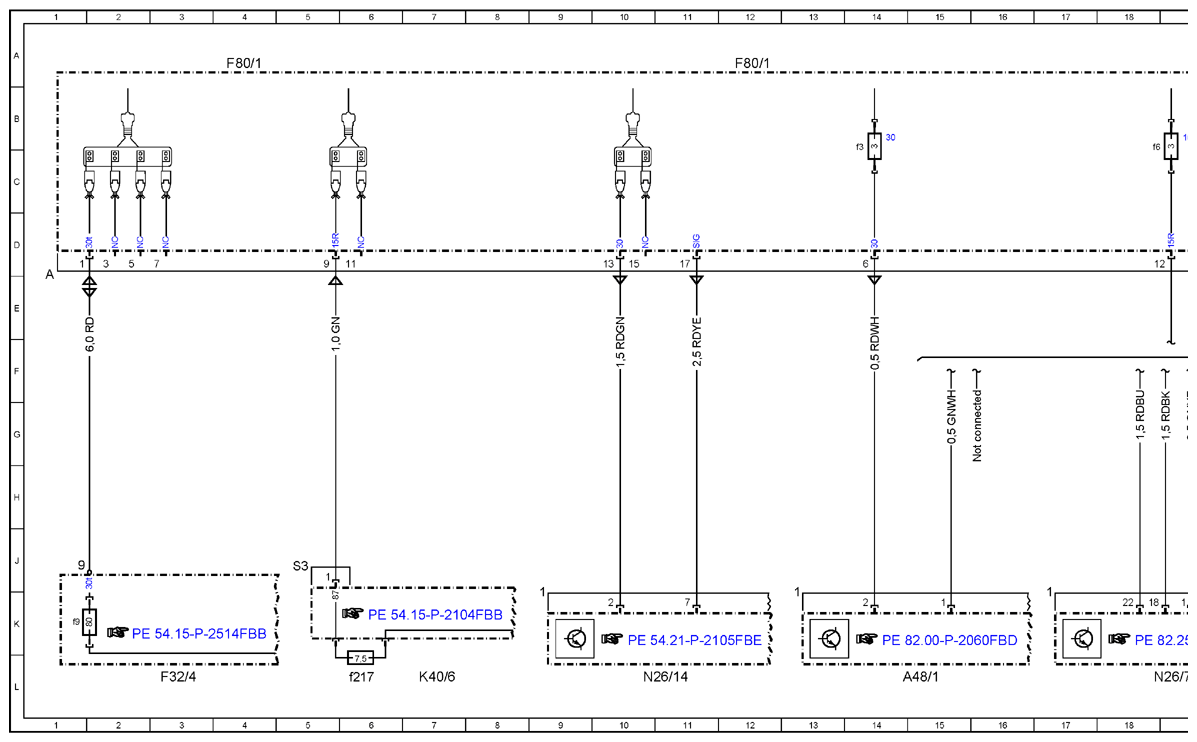

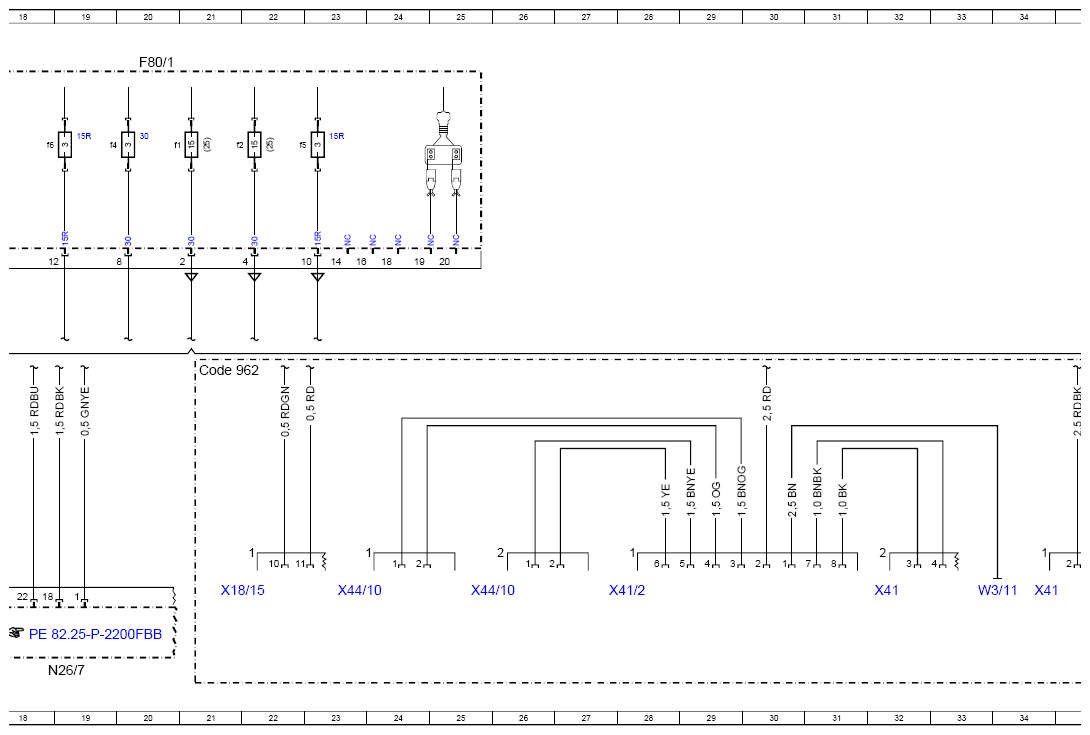

Special-Purpose Vehicle Fuse Block 1 Wiring Diagram - PE54.15-P-2121-97FBB
Model 205
as of model year 2019
with code 970 (Police emergency vehicle)
with code 974 (Preparation for fire service command vehicle)
with code 975 (Preparation for emergency doctor vehicle)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A48/1 | Special signal system operating unit | 15L |
| Code 962 | Hella roof attachment | 21F |
| F32/4 | Vehicle interior prefuse box | 3L |
| F32/4f9 | Fuse 9 | 1K |
| F80/1 | Special-purpose vehicle fuse block 1 | 4A |
| F80/1 | Special-purpose vehicle fuse block 1 | 12A |
| F80/1 | Special-purpose vehicle fuse block 1 | 20A |
| F80/1f1 | Fuse 1 | 20C |
| F80/1f2 | Fuse 2 | 21C |
| F80/1f3 | Fuse 3 | 14C |
| F80/1f4 | Fuse 4 | 19C |
| F80/1f5 | Fuse 5 | 22C |
| F80/1f6 | Fuse 6 | 18C |
| K40/6 | Driver-side fuse and relay module | 7L |
| K40/6f217 | Fuse 217 | 6L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 11L |
| N26/7 | Special signal system control unit | 19L |
| W15/5 | Left front footwell ground point | 39L |
| W3/11 | Left rear wheel well ground point | 33K |
| X18/15 | German Association of the Automotive Industry connecting point | 22K |
| X41 | Roof light bar separation point | 32K |
| X41 | Roof light bar separation point | 34K |
| X41/2 | Roof light bar separation point | 40K |
| X41/2 | Roof light bar separation point | 28K |
| X44/10 | Outside speaker electrical connector | 23K |
| X44/10 | Outside speaker electrical connector | 26K |
| Z37/83z1 | Multifunction CAN high connector sleeve | 38L |
| Z37/84z1 | Multifunction CAN low connector sleeve | 37L |
