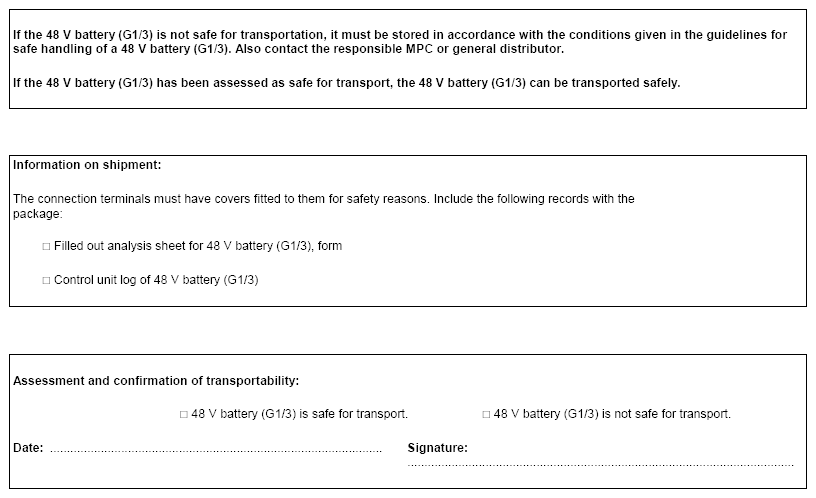

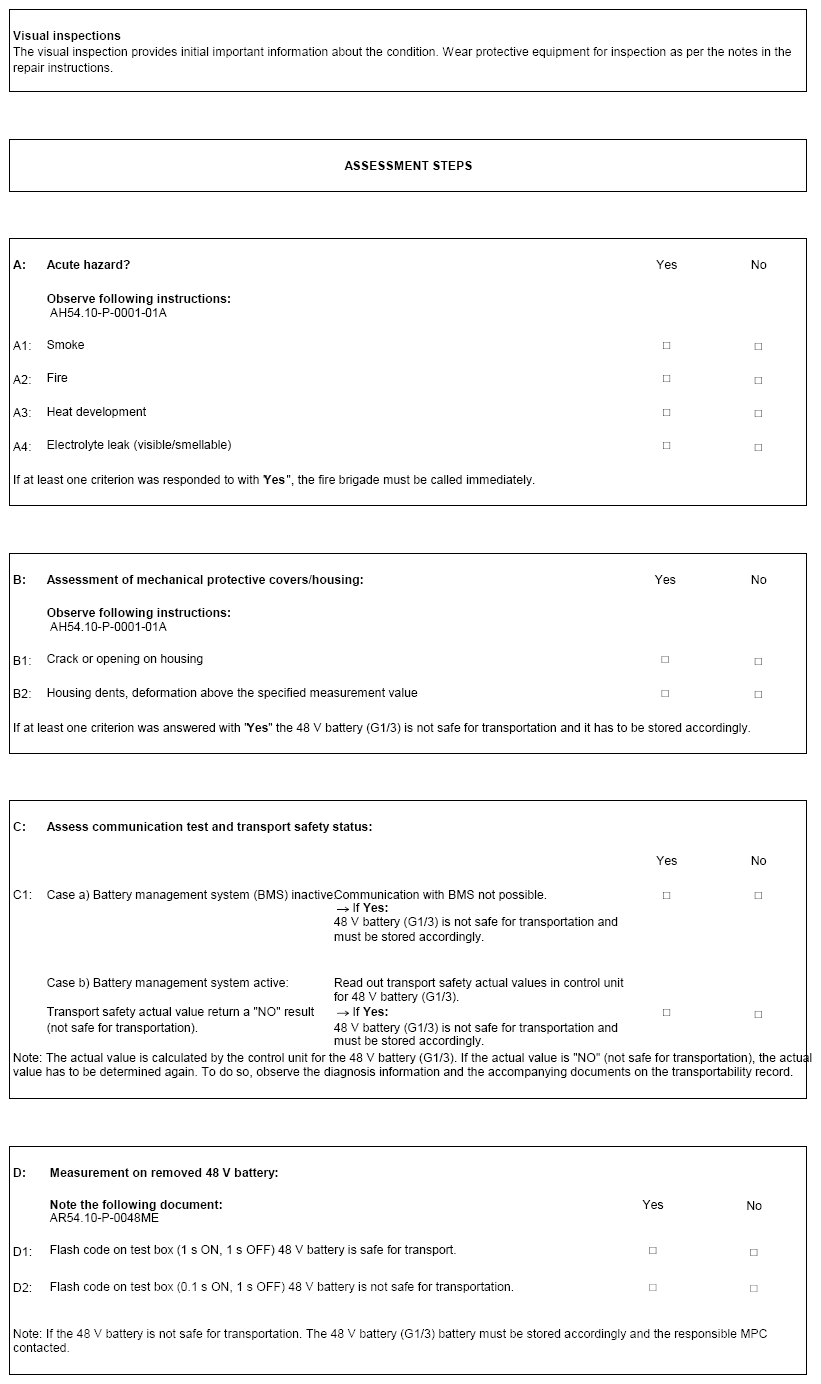

Analysis Sheet For 48 V Lithium-Ion Battery, Form - OF54.10-P-3000-15FR
Model 167, 205, 206, 213, 223, 232, 238, 253, 254, 257, 290 with code B01 (48V technology)
 Courtesy of MERCEDES-BENZ USA
|

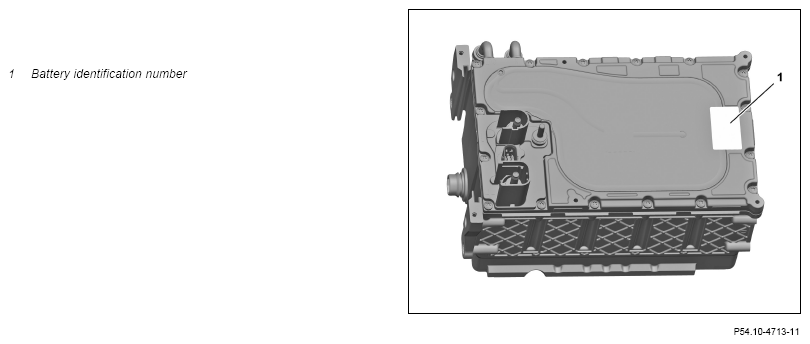

Shown on model 206
 Courtesy of MERCEDES-BENZ USA
|

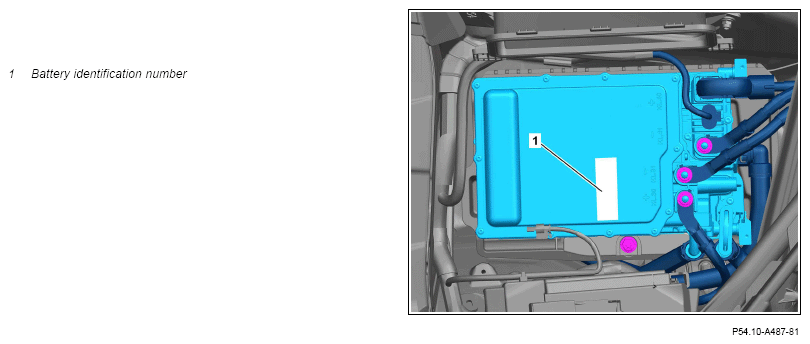

Shown on model 254
 Courtesy of MERCEDES-BENZ USA
|
 Courtesy of MERCEDES-BENZ USA
|
 Courtesy of MERCEDES-BENZ USA
|
