Remove/Install Park Pawl Capacitor - AR54.10-P-1126LW
Model 205 with transmission 722
Model 205 with transmission 725
Model 213 with transmission 725
Model 253 with transmission 724
Model 253 with transmission 725
Model 293

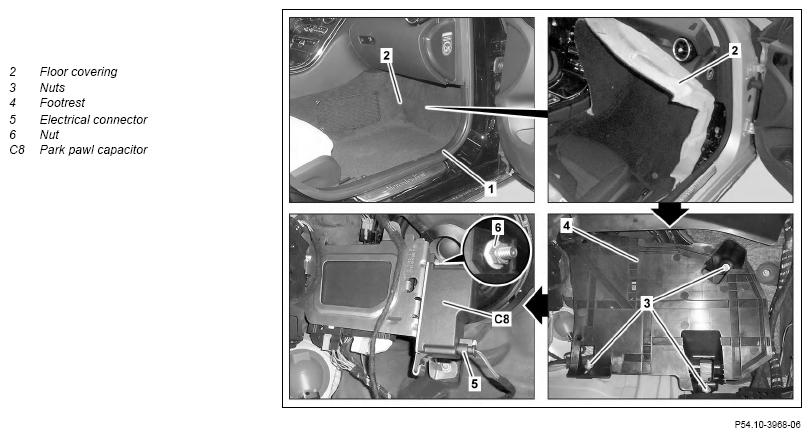

Shown on model 205
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove floor covering (2) from front passenger footwell. | Model 205 with transmission 722 Model 205, 253 with transmission 725 Model 253 with transmission 724 |
AR68.20-P-2070LW |
| Model 213 with transmission 725 | AR68.20-P-2065LWE | ||
| Model 293 | AR68.80-P-0008EQ | ||
| 3 | Unscrew nuts (3). | ||
| 4 | Remove footrest (4). | ||
| 5 | Disconnect electrical connector (5). | ||
| 6 | Unscrew nut (6) and unhook park pawl condenser (C8) from bracket and remove. | ||
| 7 | Install in the reverse order. |
