Remove/Install Cockpit Clock - AR54.30-P-1000LW
MODEL 205
with CODE 246 (Analogue clock)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove upper control panel control unit (N72/1) | AR54.21-P-1262LW | |

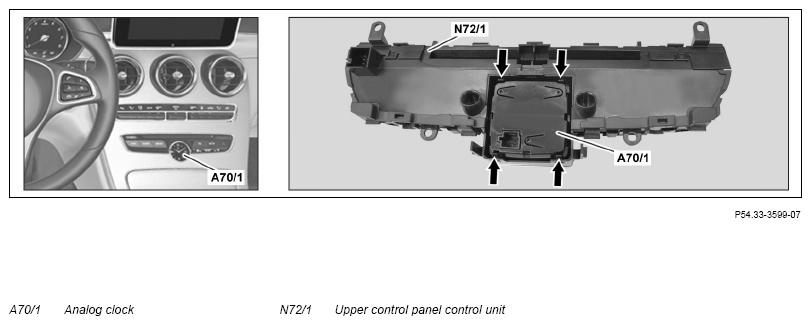

| 2 | Unclip analog clock (A70/1) from the catch hooks (arrows) on the upper control panel control unit (N72/1) | ||
| 3 | Install in the reverse order |
