(Remove/Install Battery - AR54.10-P-0005LWH)
Model 205.012/212
Modification notes
| 06.04.2021 | Sequence of operation steps revised. | Operation step 1 |
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on battery | AH54.10-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Confirm change of on-board electrical system battery (G1) using diagnosis system in signal acquisition and actuation module under Actuation menu item. | When replacing the on-board electrical system battery (G1). | |
| AD00.00-P-2000-04B | |||
| 2 | Disconnect the ground line for the on-board electrical system battery (G1). | AR54.10-P-0003LW | |

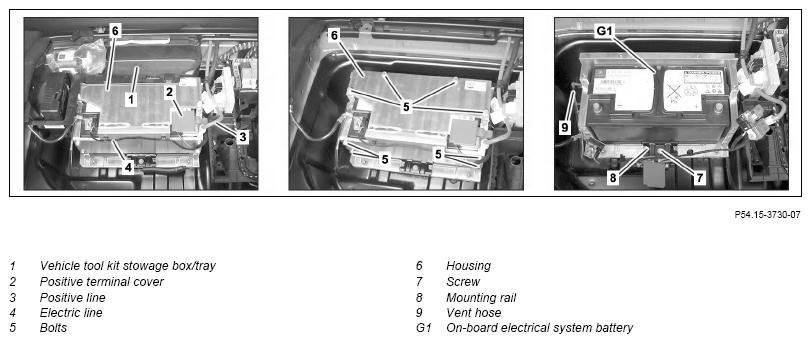

| 3 | Remove vehicle tool kit stowage box/tray (1). | ||
| 4 | Unclip electric line (4) from housing (6). | ||
| 5 | Unclip positive terminal cover (2). | ||
| 6 | Disconnect positive line (3) of on-board electrical system battery (G1). | *BA54.10-P-1004-01A | |
| 7 | Disconnect vent hose (9) from on-board electrical system battery (G1). | Otherwise leaking battery vapor may damage the vehicle. |
|
| 8 | Remove bolts (5). | *BA54.10-P-1008-01A | |
| 9 | Remove housing (6). | ||
| 10 | Remove screw (7). | *BA54.10-P-1001-01A | |
| 11 | Remove mounting rail (8). | ||
| 12 | Remove on-board electrical system battery (G1) from vehicle. | ||
| 13 | Install in the reverse order. |
BATTERY
| Number | Designation | Model 205 | |
|---|---|---|---|
| BA54.10-P-1001-01A | Screw/bolt, battery mounting rail to battery frame | Nm | 23 |
BATTERY
| Number | Designation | Model 205 | |
|---|---|---|---|
| BA54.10-P-1004-01A | Nut, electrical line to negative terminal/positive terminal of on-board electrical system battery | Nm | 6 |
BATTERY
| Number | Designation | Model 205 | |
|---|---|---|---|
| BA54.10-P-1008-01A | Screw/bolt/nut, battery bracket/retaining bracket to battery frame | Nm | 23 |
