(Remove/Install Battery - AR54.10-P-0005LWA)

Model 205.047/147/247

Modification notes

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205.2

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205.2

	Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment		AH00.00-Z-0300-01A
Notice	Notes on battery		AH54.10-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Perform disable for high-voltage on-board electrical system.		AR54.10-P-1150LW

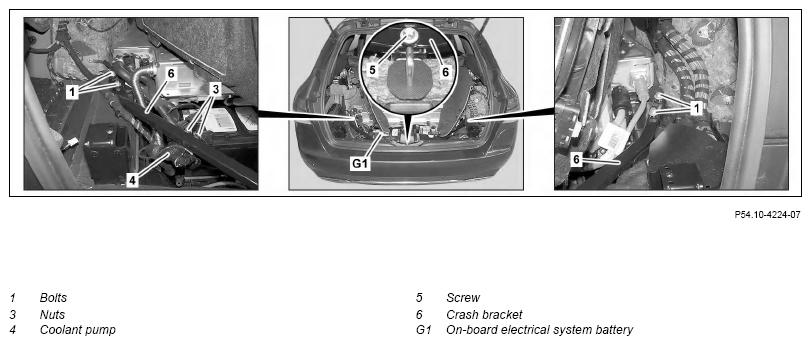

2.1	Loosen left and right trunk lining until the screws (1) are accessible.	Model 205.047/147	AR68.30-P-4600LW
2.2	Detach load compartment trim at left and right side in rear area until the screws (1) are accessible.	Model 205.247	AR68.30-P-1180LWS
3	Confirm change of on-board electrical system battery (G1) using diagnosis system in signal acquisition and actuation module under Actuation menu item.	When replacing the on-board electrical system battery (G1).
		This updates the charging characteristic for the on-board electrical system battery (G1)	AD00.00-P-2000-04B
4	Disconnect the ground line for the on-board electrical system battery (G1).		AR54.10-P-0003LW
5	Release and disconnect electrical connector (2).
6	Remove nuts (3).
7	Remove coolant pump (4) with connected electric lines and coolant hoses and place to one side.
8	Remove screw (5).	Screw/bolt, crash bar to crash bar bracket	*BA64.20-P-1003-01H
9	Remove bolts (1).	Screw/bolt, crash bar to longitudinal member	*BA64.20-P-1002-01H
10	Remove crash bracket (6).
11	Unfasten nuts (7).	Nut, crash strut to protective rail	*BA64.20-P-1005-01H
12	Remove bolts (8).	Screw/bolt, crash bar bracket to crash strut	*BA64.20-P-1004-01H
13	Pull crash strut (9) in rear area upwards and fix in place using long wedge (10), as shown.	Long wedge	Fig 1
14	Remove screw (11).	Screw/bolt, battery mounting rail to battery frame	*BA54.10-P-1001-01A
15	Remove mounting rail (12).

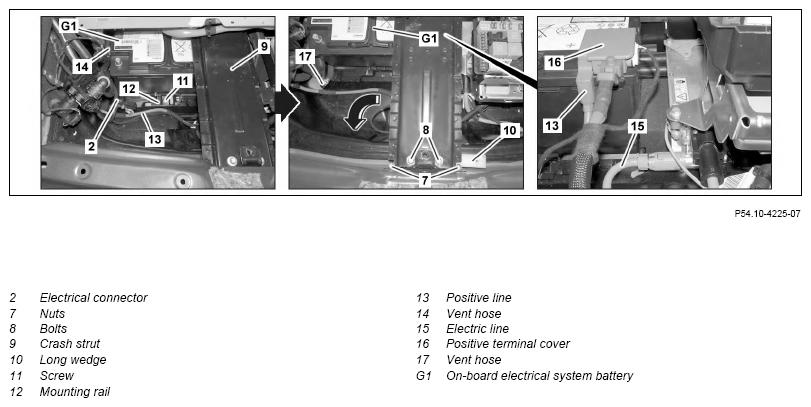

16	Unclip positive line (13) from body.
17	Disconnect vent hose (14) from on-board electrical system battery (G1).	Check that the vent hose (14) is correctly seated. Otherwise, escaping battery vapors may damage the vehicle.
18	Lift on-board electrical system battery (G1) in area of previously-removed mounting rail (12), turn in direction of arrow and pull out under crash strut (9).	When turning the on-board electrical system battery (G1), do not subject the electric line (15) and its connection to tension. They can be damaged otherwise.
19	Unclip positive terminal cover (16).
20	Disconnect positive line (13) from on-board electrical system battery (G1).	Nut, electrical line to negative terminal/positive terminal of on-board electrical system battery	*BA54.10-P-1004-01A
21	Remove on-board electrical system battery (G1) from vehicle.	Check bleed hose (17) is correctly seated.
22	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)
