Remove/Install Additional Fan For Instrument Cluster - AR54.30-P-0003LWM
Model 205
with code 464 (Full display digital instrument cluster)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove cover below instrument panel on driver's side. | AR68.10-P-1500LW | |
| 2 | Remove driver kneebag. | Model 205 with code 294 (Kneebag) with code 464 (Full display digital instrument cluster) | AR91.60-P-0200LW |

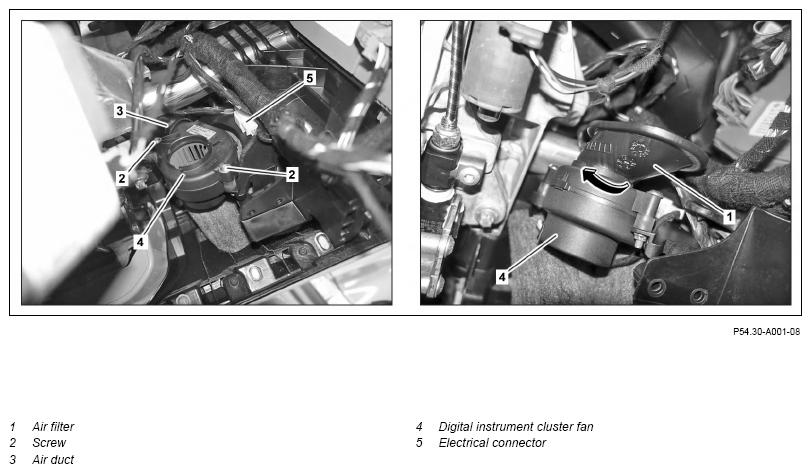

| 3 | Turn air filter (1) clockwise (arrow) and remove from digital instrument cluster fan (4). | ||
| 4 | Disconnect electrical connector (5). | ||
| 5 | Unscrew bolts (2). | ||
| 6 | Remove digital instrument cluster fan (4) from air duct (3). | ||
| 7 | Install in the reverse order. |
