(Remove/Install Sensors For Blind Spot Assist - AR54.71-P-0100LW)
Model 205
up to model year 2019
with code 234 (Blind Spot Monitoring)
Model 205
up to model year 2019
with code 237 (Active Blind Spot Assist)

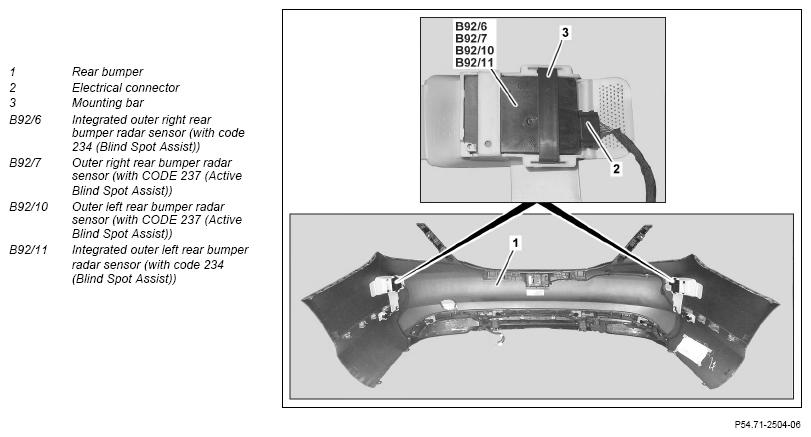

Shown on model 205.0
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | |
| Remove/install | |||
| 1 | Remove rear bumper (1). | Model 205.2 up to model year 2019 with code 234 (Blind Spot Monitoring) Model 205.2 up to model year 2019 with code 237 (Active Blind Spot Assist) |
AR88.20-P-2200LWS |
| Model 205.0/1/3/4 up to model year 2019 with code 234 (Blind Spot Monitoring) Model 205.0/1/3/4 up to model year 2019 with code 237 (Active Blind Spot Assist) |
AR88.20-P-2200LW | ||
| 2 | Disconnect electrical connector (2) from radar sensors (B92/6, B92/7, B92/10 or B92/11). | ||
| 3.1 | Remove mounting bracket (3) and remove radar sensors (B92/6, B92/7, B92/10 or B92/11). | Model 205.0/1/2 up to model year 2019 with code 234 (Blind Spot Monitoring) Model 205.0/1/2 up to model year 2019 with code 237 (Active Blind Spot Assist) |
|
| 3.2 | Release and remove radar sensors (B92/6, B92/7, B92/10 or B92/11) from rear bumper (1). | Model 205.3/4 up to model year 2019 with code 234 (Blind Spot Monitoring) Model 205.3/4 up to model year 2019 with code 237 (Active Blind Spot Assist) |
|
| 4 | Install in the reverse order. |
