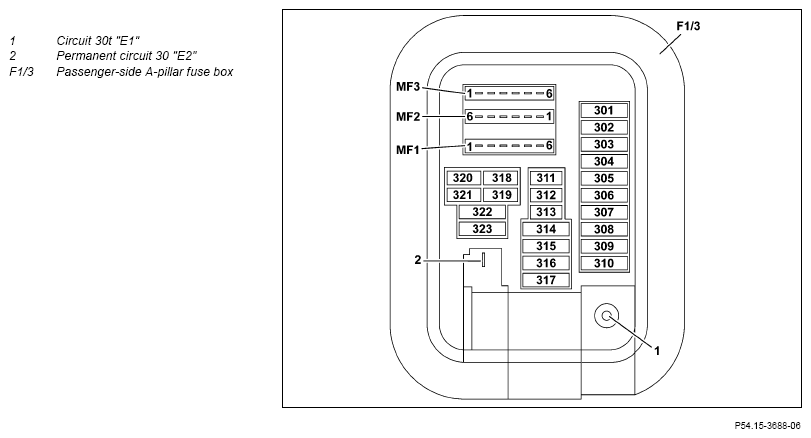

Assignment Of Passenger-Side A-Pillar Fuse Box - GF54.15-P-1256-48RFM
Model 205
as of model year 2019
Model 253.99
| Slot | Fuse Identification | Circuit | Wire Identification | Fused component | Fuse rating (A) |
|---|---|---|---|---|---|
| 301 | Electrical fuse 301 (F1/3f301) | 30t | 1.0 RD | With code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Pyrofuse (F63) via high-voltage disconnect device (S7) |
5 |
| 0.5 RDWH | With code 466 (Active engine mount): Active engine mounts control unit (N3/42) |
||||
| 0.5 RDYE | With code B01 (48V technology): Pyrofuse (F63) |
||||
| 2.5 RD | Model 253.99: Right rear door control unit (N69/4) |
30 | |||
| 302 | Electrical fuse 302 (F1/3f302) | 30t | 2.5 RD | Model 205 left-hand drive vehicle, model 253.99 right-hand drive vehicle: Right front door control unit (N69/2) |
30 |
| Model 205 right-hand drive vehicle, model 253.99 left-hand drive vehicle: Left front door control unit (N69/1) |
|||||
| 303 | Electrical fuse 303 (F1/3f303) | 30t | 2.5 RDWH | Model 205.0/1/2: Left rear door control unit (N69/3) |
30 |
| 2.5 RD | Model 205.3 with code U02 (Electric seat belt extender), model 205.4: Rear control unit (N22/6) |
||||
| Model 253.99: Driver's seat control unit (N32/1) |
|||||
| 304 | Electrical fuse 304 (F1/3f304) | 30t | 1.5 RD | Model 205: Head unit (A26/17) |
20 |
| 2.5 RD | Model 253.99: Front passenger seat control unit (N32/2) |
30 | |||
| 305 | Electrical fuse 305 (F1/3f305) | 30t | 2.5 RDYE | Model 205 with code 221 (Electrically adjustable left driver's seat) or code 241 (Memory switch for electrically adjustable left front passenger seat) or code 275 (Memory Package): Driver's seat control unit (N32/1) |
30 |
| 2.5 RD | Model 205 with code 401 (Seat heater for driver and front passenger) or code 873 (Seat heater for driver and front passenger): Front seat heater control unit (N25/17) |
||||
| 0.35 RDWH | Model 253.99: Rain/light sensor with additional functions (B38/2) |
5 | |||
| 306 | Electrical fuse 306 (F1/3f306) | 30t | 2.5RDGY | Model 205 with code 401 (Seat heater for driver and front passenger) or code 873 (Seat heater for driver and front passenger): Front seat heater control unit (N25/17) |
30 |
| 2.5RDGY | Model 205 with code 222 (Electrically adjustable right front seat) or code 242 (Electrically adjustable front passenger seat with memory function) or code 275 (Memory Package): Front passenger seat control unit (N32/2) |
||||
| 307 | Electrical fuse 307 (F1/3f307) | 30t | 0.35 RD | Model 253.99 with code 362 (HERMES LTE): HERMES control unit (N112/9) |
5 |
| 308 | Electrical fuse 308 (F1/3f308) | 30t | 0.35 RD | Model 205.4 with code 551 (Anti-theft alarm system (ATA)) and code 882 (Interior protection and tow-away protection): Left front door interior protection sensor (B44/1) Right front door interior protection sensor (B44/2) Left rear interior protection sensor (B44/3) Right rear interior protection sensor (B44/4) |
7, 5 |
| 0.5 RD | Model 205 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): High-voltage PTC heater (N33/5) |
||||
| 2.5 RD | Model 205 with code 228 (Stationary heater): Stationary heater unit (A6) |
20 | |||
| 309 | Electrical fuse 309 (F1/3f309) | 30t | 0.35 RD | Model 205 with code 362 (HERMES LTE): HERMES control unit (N112/9) |
5 |
| 2.5 RDWH | Model 253.99 with code 413 (Panoramic sliding sunroof): Panoramic sliding sunroof control module (A98) |
30 | |||
| 310 | Electrical fuse 310 (F1/3f310) | 30t | 2.5 RDBN | Model 205 with code 466 (Active engine mount): Active engine mounts control unit (N3/42) |
20 |
| 4.0 RDBK | Model 253.99 left-hand drive vehicle with code 299 (PRE-SAFE® system): Right front reversible emergency tensioning retractor (A76/1) |
30 | |||
| 4.0 RDGN | Model 253.99 right-hand drive vehicle with code 299 (PRE-SAFE® system): Left front reversible emergency tensioning retractor (A76) |
||||
| 311 | Electrical fuse 311 (F1/3f311) | 30t | 0.75 RDWH | Model 205 with code 23P (Driving Assistance Package): Short-range and long-range radar sensor (B92/12) |
7, 5 |
| 0.5 RDWH | Model 253.99: Powertrain control unit (N127) |
5 | |||
| 312 | Electrical fuse 312 (F1/3f312) | 30t | 0.75 RD | Model 205.3/4: Overhead control panel control unit (N70) |
10 |
| 1.0 RD | Model 205.0/1/2: Overhead control panel control unit (N70) |
||||
| 0.75 RDWH | Model 253.99: Supplemental Restraint System control unit (N2/10) |
7, 5 | |||
| 313 | Electrical fuse 313 (F1/3f313) | 30t | 0.5 RD | Model 205 with engine 177: Transmission mode control unit (N145) |
5 |
| Model 205 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Power electronics control unit (N129/1) |
|||||
| 0.5 RDBU | Model 205 with code B01 (48V technology): DC/DC converter control unit (N83/1) |
||||
| 0.5 RD | Model 253.99 with code 531 (COMAND APS): Multimedia connection unit (A90/5) |
||||
| 314 | Electrical fuse 314 (F1/3f314) | 30t | 1.5 RDWH | Model 205 with code 488 (Steel/air suspension) or code 489 (AIRMATIC): AIRMATIC control unit (N51/3) |
25 |
| Model 205 with code 459 (DYNAMIC BODY CONTROL suspension with adjustable damping): Adaptive damping system control unit (N51/5) |
|||||
| 0.5 RD | Model 253.99: High-voltage PTC heater (N33/5) |
5 | |||
| 315 | Electrical fuse 315 (F1/3f315) | 30t | 0.5 RDWH | Model 205: Powertrain control unit (N127) |
5 |
| 2.5 RD | Model 253.99: High-voltage disconnect device (S7) |
20 | |||
| 316 | Electrical fuse 316 (F1/3f316) | 30t | 1.0 RD | Model 253.99: Overhead control panel control unit (N70) |
10 |
| 317 | Electrical fuse 317 (F1/3f317) | 30t | 2.5 RDWH | Model 205 with code 413 (Panoramic sliding sunroof): Panoramic sliding sunroof control module (A98) |
30 |
| Model 205 with code 414 (Sliding roof): Sliding roof control module (A98/1) |
|||||
| 2.5 RD | Model 253.99 with code 531 (COMAND APS): Head unit (A26/17) |
15 | |||
| 318 | Electrical fuse 318 (F1/3f318) | 30 | 0.35 RD | With code 551 (Anti-theft alarm system (ATA)) and code 882 (Interior protection and tow-away protection): Alarm siren (H3/1) |
5 |
| 319 | Electrical fuse 319 (F1/3f319) | 30 | 0.75 RD | With code 889 (KEYLESS-GO): KEYLESS-GO control unit (N69/5) |
10 |
| 320 | Electrical fuse 320 (F1/3f320) | 30 | 0.35 RD | FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier (A2/18) | 5 |
| 321 | Electrical fuse 321 (F1/3f321) | 30 | 0.5 RDGN | Electronic ignition lock control unit (N73) | 10 |
| 322 | Electrical fuse 322 (F1/3f322) | 30 | 0.75RDYE | Instrument cluster (A1) | 7, 5 |
| 323 | Electrical fuse 323 (F1/3f323) | 30 | 0.5 RDGN | Model 253.99: Diagnostics connection (X11/4) |
10 |
| MF1 | Electric multicircuit fuse 1 (F1/3MF1), pin 1 | 30t | 0.5 RD | Model 205: Audio/COMAND display (A40/8) |
7, 5 |
| MF1 | Electric multicircuit fuse 1 (F1/3MF1), pin 2 | 30t | 0.5 RDWH | Model 205: Supplemental Restraint System control unit (N2/10) |
7, 5 |
| 0.5 RDYE | Model 253.99: Mono multifunction camera (A40/11) |
||||
| MF1 | Electric multicircuit fuse 1 (F1/3MF1), pin 3 | 30t | 0.35 RDWH | Model 205: Rain/light sensor with additional functions (B38/2) |
7, 5 |
| MF1 | Electric multicircuit fuse 1 (F1/3MF1), pin 4 | 30t | 0.5 RDWH | Model 253.99: Driver's seat lumbar support electropneumatic controller unit (N32/23) |
7, 5 |
| MF1 | Electric multicircuit fuse 1 (F1/3MF1), pin 5 | 30t | 0.5 RDWH | Model 253.99: Front passenger seat lumbar support electropneumatic controller unit (N32/24) |
7, 5 |
| MF1 | Electric multicircuit fuse 1 (F1/3MF1), pin 6 | 30t | 0.5 RD | Model 205: Steering column tube module control unit (N80) |
7, 5 |
| MF2 | Electric multicircuit fuse 2 (F1/3MF2), pin 1 | 30t | 0.35 RDGN | Model 205 with code 299 (PRE-SAFE® system): Left front reversible emergency tensioning retractor (A76) |
5 |
| MF2 | Electric multicircuit fuse 2 (F1/3MF2), pin 2 | 30t | 0.35 RDWH | Model 205 except code 448 (Touchpad): Audio/COMAND control panel (A40/9) |
5 |
| Model 205 with code 448 (Touchpad): Touchpad (A105) Audio/COMAND control panel (A40/9) |
|||||
| MF2 | Electric multicircuit fuse 2 (F1/3MF2), pin 3 | 30t | 0.35 RD | Model 205 with code 299 (PRE-SAFE® system): Right front reversible emergency tensioning retractor (A76/1) |
5 |
| 0.5 RD | Model 253.99: Crash sensor, high-voltage control unit (N2/1) |
5 | |||
| MF2 | Electric multicircuit fuse 2 (F1/3MF2), pin 4 | 30t | 0.5 RD | With code 463 (Head-up display): Head-up Display (A40/12) |
5 |
| MF2 | Electric multicircuit fuse 2 (F1/3MF2), pin 5 | 30t | 0.5 RD | Model 205: Multimedia connection unit (A90/5) |
5 |
| MF2 | Electric multicircuit fuse 2 (F1/3MF2), pin 6 | 30t | 0.5 RDYE | With code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Electric refrigerant compressor (A9/5) |
5 |
| With code B01 (48V technology): Starter alternator (M1/10) |
|||||
| 0.5 RDBU | Model 253.99: Hydrogen tank control unit (N3/19) |
||||
| MF3 | Electric multicircuit fuse 3 (F1/3MF3), pin 1 | 30t | 0.5 RD | Model 205 with code 897 (Wireless mobile phone charging) or code 899 (Multifunction telephony): Mobile phone cradle control unit (N123/8) |
5 |
| Model 205 with code 899 (Multifunction telephony): Cellular telephone system antenna amplifier/compensator (A28/15) |
|||||
| MF3 | Electric multicircuit fuse 3 (F1/3MF3), pin 2 | 30t | 0.5 RDOG | Model 205 with code 899 (Multifunction telephony) and code B24 (Remote control for stationary heater): Antenna changeover switch for telephone and stationary heater (A2/155) |
5 |
| MF3 | Electric multicircuit fuse 3 (F1/3MF3), pin 3 | 30t | 0.35 RD | Model 205 with code 830 (Additional parts for China vehicles): Rear USB electrical connection (X39/75) |
5 |
| 0.35 RDWH | Model 253.99 with code 446 (Touchpad only): Touchpad (A105) |
||||
| MF3 | Electric multicircuit fuse 3 (F1/3MF3), pin 4 | 30t | 0.35 RDWH | With code 235 (Parking Pilot with PARKTRONIC), code 238 (Active Lane Keeping Assist), code 266 (DISTRONIC PLUS with Steering Assist and Stop & Go Pilot), code 463 (Head-up Display) or code 501 (360° camera): Driver side instrument panel button group (S6/1) |
5 |
| MF3 | Electric multicircuit fuse 3 (F1/3MF3), pin 5 | 30t | 0.35 RDVT | Model 205 with code 581 (Automatic air conditioning): Rear air conditioning operating unit (N22/4) |
5 |
| MF3 | Electric multicircuit fuse 3 (F1/3MF3), pin 6 | 30t | 0.35 RD | Model 205 with code 464 (Digital instrument cluster, full display): Audio equipment fan motor (M4/12) |
5 |
