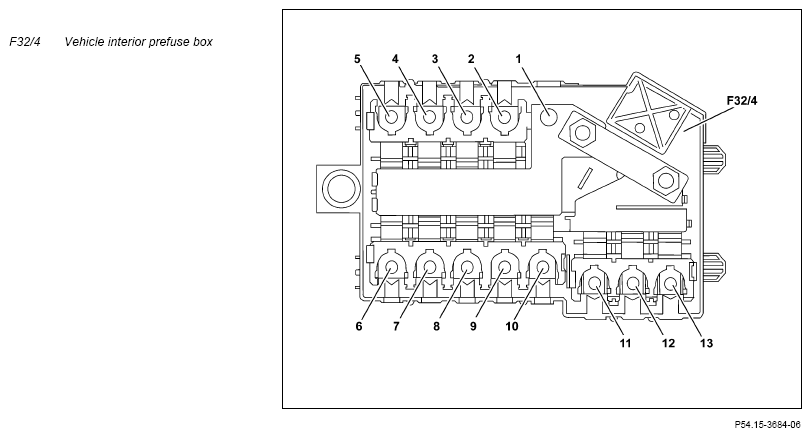

Fuse Assignment On Interior Pre-Fuse Box - GF54.15-P-1256-26RFM
Model 205
as of model year 2019
Model 253.99
| Connection | Fuse Identification | Circuit | Wire Identification | Fused component | Fuse rating (A) |
|---|---|---|---|---|---|
| 1 | - | 30t | 35.0 RD | Circuit 30t from engine compartment prefuse box (F32/3) | - |
| 2 | Electrical fuse 2 (F32/4f2) | 30t | 16.0 BK | Model 205 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Auxiliary battery relay for ECO start/stop function (K114) |
150 |
| 3 | Electrical fuse 3 (F32/4f3) | 30t | 4.0 RD | Air conditioner housing (A32) | 40 |
| 4 | Electrical fuse 4 (F32/4f4) | - | - | Spare | - |
| 5 | Electrical fuse 5 (F32/4f5) | 30t | Unknown | Model 205 with engine 264, 274 and code 401 (Seat climate control for driver and front passenger), code 463 (Head-up display), code 824 (Additional parts for countries with cold temperatures) or code 873 (Seat heating for driver and front passenger), engine 654: PTC heater booster (R22/3) |
150 |
| 6 | Electrical fuse 6 (F32/4f6) | 30t | 10.0 BK | Model 205 except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Passenger-side A-pillar fuse box (F1/3) |
80 |
| 16.0 BK | Model 205 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)), model 253.99: Passenger-side A-pillar fuse box (F1/3) |
150 | |||
| 7 | Electrical fuse 7 (F32/4f7) | 30t | 27.0 RD | Model 205: Rear fuse and relay module (K40/5) |
200 |
| 25.0 RD | Model 253.99: Rear fuse and relay module (K40/5) |
150 | |||
| 8 | Electrical fuse 8 (F32/4f8) | - | - | Spare | - |
| 9 | Electrical fuse 9 (F32/4f9) | 30t | 6.0 RD | Model 205 with code 970 (Police emergency vehicles) or code 974 (Fire brigade lead emergency vehicle pre-installation) or code (975 (Emergency physician vehicle pre-installation): Special-purpose vehicle fuse block 1 (F80/1) |
80 |
| 6.0 RDBU | Model 293.99: Center fuel cell cooling coolant pump (M43/13) |
60 | |||
| 10 | Electrical fuse 10 (F32/4f10) | 30t | 10.0 RD | Model 205 with transmission 725 except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Fully integrated transmission control controller unit (Y3/8) |
60 |
| Transmission 725 and code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Fully integrated transmission control controller unit (Y3/8) |
100 | ||||
| 6.0 RDGY | Model 253.99: Left fuel cell cooling coolant pump (M43/12) |
60 | |||
| 11...13 | Electrical fuse 11 (F32/4f11) - Electrical fuse 13 (F32/4f13) | 30t | - | Spare | - |
