(Fuse Assignment Of Pre-Fuse Box In Engine Compartment - GF54.15-P-1256-25RF)
Model 205
up to model year 2019
Model 253 (except 253.99)
up to model year 2020

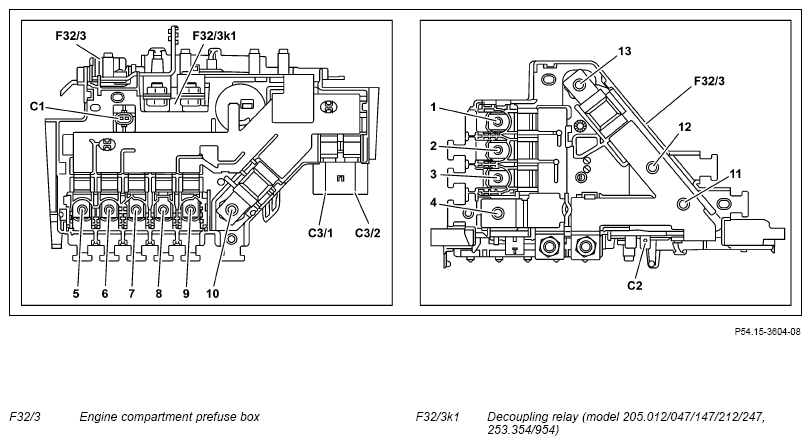

Side view, viewed from top
| Connection | Fuse | Circuit | Line ID (line fused) | Fused component | Rating in amperes (A) |
|---|---|---|---|---|---|
| 1 | Electrical fuse 1 (F32/3f1) | 30 | 6.0 RD | As of 01.12.2016: Electronic Stability Program control unit (N30/4) |
60 |
| 2 | Electrical fuse 2 (F32/3f2) | 30 | 10.0 RDBK | Diesel engine: Glow output stage (N14/3) |
60 |
| 3 | Electrical fuse 3 (F32/3f3) | 30 | 6.0 RD | Up to 30.11.2016, model 205: Motor fuse and relay module (K40/8) |
60 |
| 12.0 RD | Up to 31.05.2016, model 253: Motor fuse and relay module (K40/8) |
||||
| 6.0 RD | As of 01.06.2016, model 253: Motor fuse and relay module (K40/8) |
||||
| 4.0 RD | As of 01.12.2016, engine 177: Electronic Stability Program control unit (N30/4) |
||||
| 4 | - | 30 | 35.0 RD | On-board electrical system battery connection (G1) | - |
| 5 | Electrical fuse 5 (F32/3f5) | 30 | 16.0 RD | Motor fuse and relay module (K40/8) | 150 |
| 6 | Electrical fuse 6 (F32/3f6) | 30 | 16.0 RD | Driver-side fuse and relay module (K40/6) | 125 |
| 7 | Electrical fuse 7 (F32/3f7) | 30 | 10.0 RD | Fan motor 600 W: Fan motor (M4/7) |
80 |
| 12.0 RD | Fan motor 850 W: Fan motor (M4/7) |
||||
| 16.0 RD | Engine 177, fan motor 1000 W: Fan motor (M4/7) |
150 | |||
| 8 | Electrical fuse 8 (F32/3f8) | 30 | 12.0 RD | Electrical power steering control unit (N68) | 125 |
| 9 | Electrical fuse 9 (F32/3f9) | 30 | 16.0 RD | Engine 177, fan motor 1000 W: Fan motor (M4/7) |
150 |
| 6.0 RD | As of 01.12.2016, model 205: Motor fuse and relay module (K40/8) |
60 | |||
| 10 | Electrical fuse 10 (F32/3f10) | 30 | 35.0 BK | Vehicle interior prefuse box (F32/4) | 200 |
| 11 | - | 30 | - | Model 205 right-hand drive vehicle with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)): Power electronics control unit (N129/1) |
- |
| 12 | - | 30 | 35.0 BK | Model 205 left-hand drive vehicle with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)): Power electronics control unit (N129/1) |
- |
| 25.0 BK | With code 460 (Canada version) or code 494 (USA version): Catalytic converter heater control unit (N33/3) |
||||
| 13 | Electrical fuse 13 (F32/3f13) | 30 | 50.0 RD | Except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Alternator (G2) |
400 |
| With code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): DC/DC converter control unit (N83/1) |
350 | ||||
| C1/1 | - | 30 | 0.5 RDBN | Model 205 with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)), model 205, 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Front SAM control unit (N10/6) |
- |
| C1/2 | - | 31 | 0.5 BN | Left-hand drive vehicle model 205 with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)), model 205, 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Left major assembly compartment ground point (W16/3) |
- |
| Right-hand drive vehicle, model 205 with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)), model 205, 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Right major assembly compartment electronics ground point (W16/7) |
|||||
| C2 | - | 31 | 1.0 BN | Left-hand drive vehicle model 205 with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)), model 205, 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Left major assembly compartment ground point (W16/3) |
- |
| Right-hand drive vehicle, model 205 with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)), model 205, 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Right major assembly compartment electronics ground point (W16/7) |
|||||
| C3/1 | Electrical fuse C3/1 (F32/3fC3/1) | 30 | 4.0 RD | Engine 177: Electronic Stability Program control unit (N30/4) |
40 |
| 6.0 RD (6.0 RDBU) | Except engine 177: Electronic Stability Program control unit (N30/4) |
||||
| C3/2 | Electrical fuse C3/2 (F32/3fC3/2) | 30 | 6.0 RD | Except engine 177: Electronic Stability Program control unit (N30/4) |
60 |
