(Telephone (TEL) Wiring Diagram - PE82.70-P-2000-97FBA)
Model 205
up to model year 2019
with code 386 (Comfort telephony)
Contact plate X237/1
Model 253 (except 253.99)
up to model year 2020
with code 386 (Comfort telephony)
Contact plate X237/1
| Code: | Designation: | Position: |
|---|---|---|

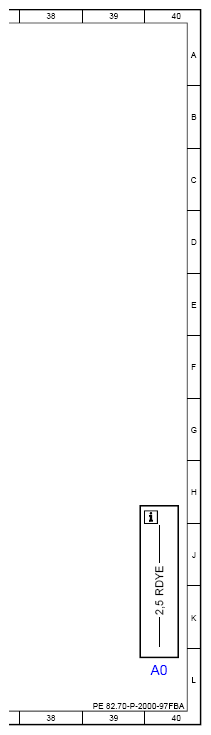

| A0 | Use of wiring diagrams | 40L |

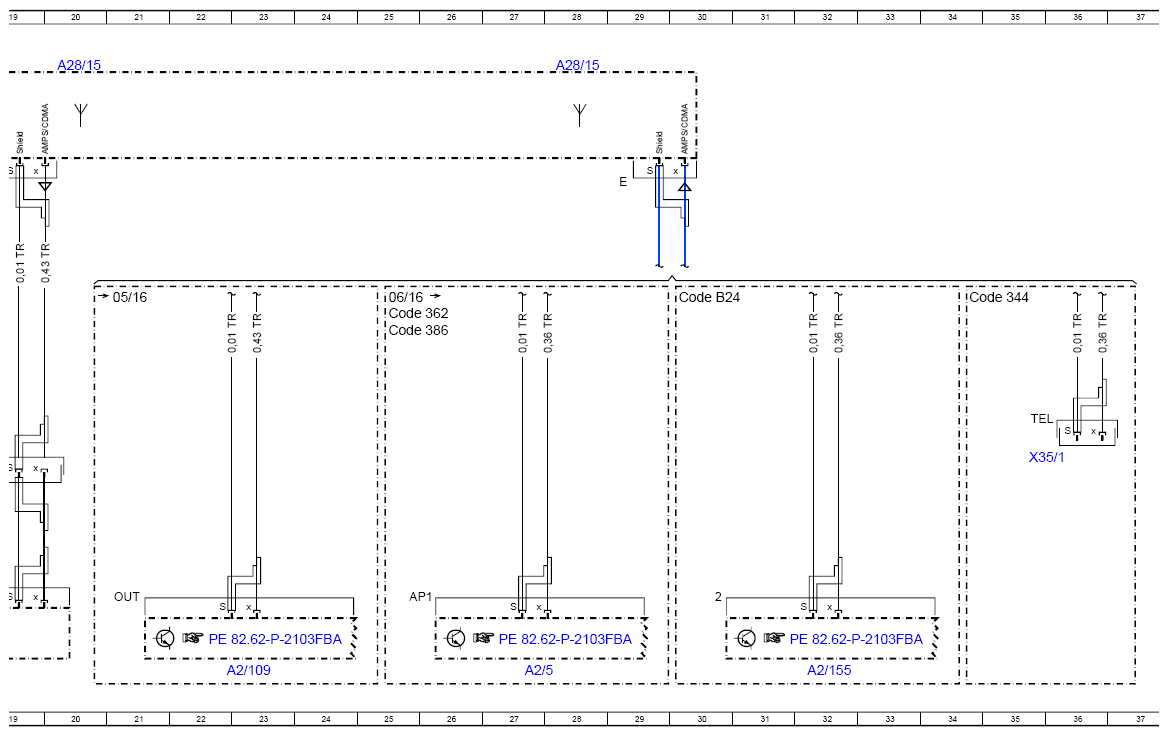

| A2/109 | Telephone antenna splitter | 23L |
| A2/155 | Telephone and stationary heater antenna changeover switch | 32L |
| A2/5 | Global positioning system antenna splitter | 27L |

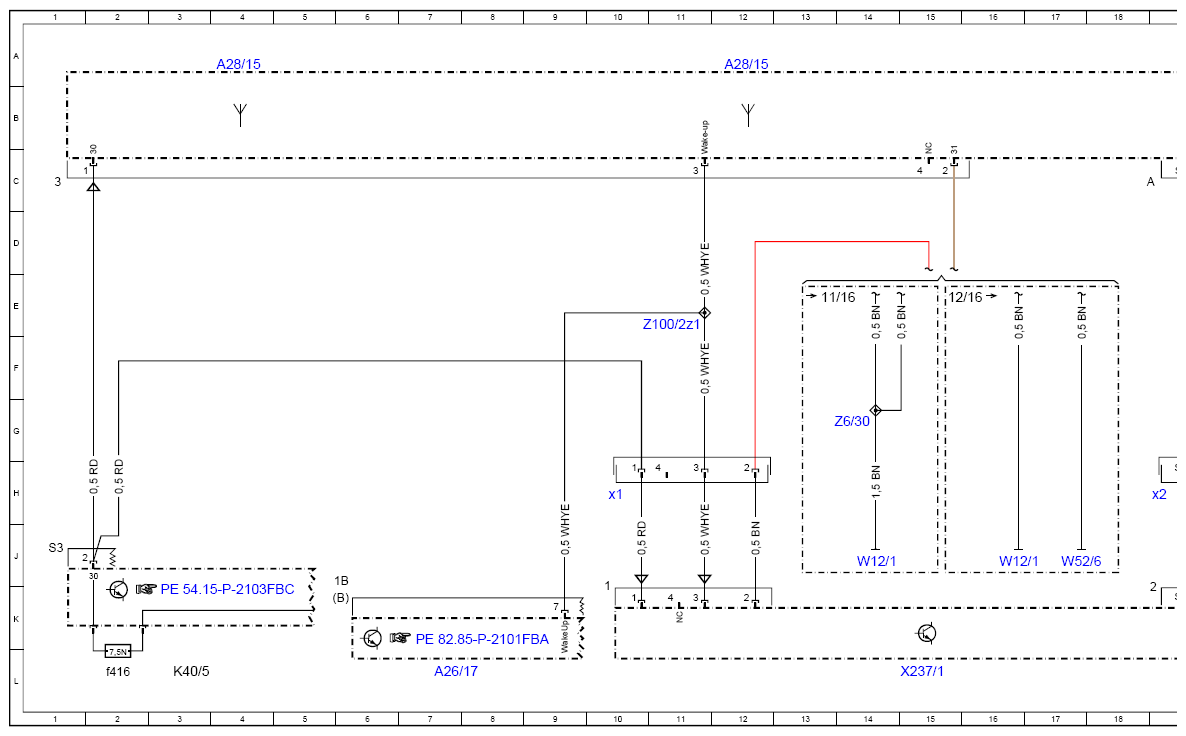

| A26/17 | Head unit | 7L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 4A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 12A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 20A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 28A |
| Code 344 | Antenna preinstallation for taxi | 34E |
| Code 362 | HERMES LTE | 25E |
| Code 386 | Comfort telephony | 25E |
| Code B24 | Radio remote control for stationary heater | 30E |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f416 | Fuse 416 | 2L |
| W12/1 | Right center console ground point | 14J |
| W12/1 | Right center console ground point | 16J |
| W52/6 | Right center longitudinal member ground point | 17J |
| X237/1 | Mobile phone contact plate | 15L |
| X237/1x1 | Mobile phone contact plate electrical connector 1 | 10H |
| X237/1x2 | Mobile phone contact plate electrical connector 2 | 19H |
| X35/1 | Driver door electrical connector | 36H |
| Z100/2z1 | Wake-up signal connector sleeve | 11E |
| Z6/30 | Circuit 31 connector sleeve | 14G |
