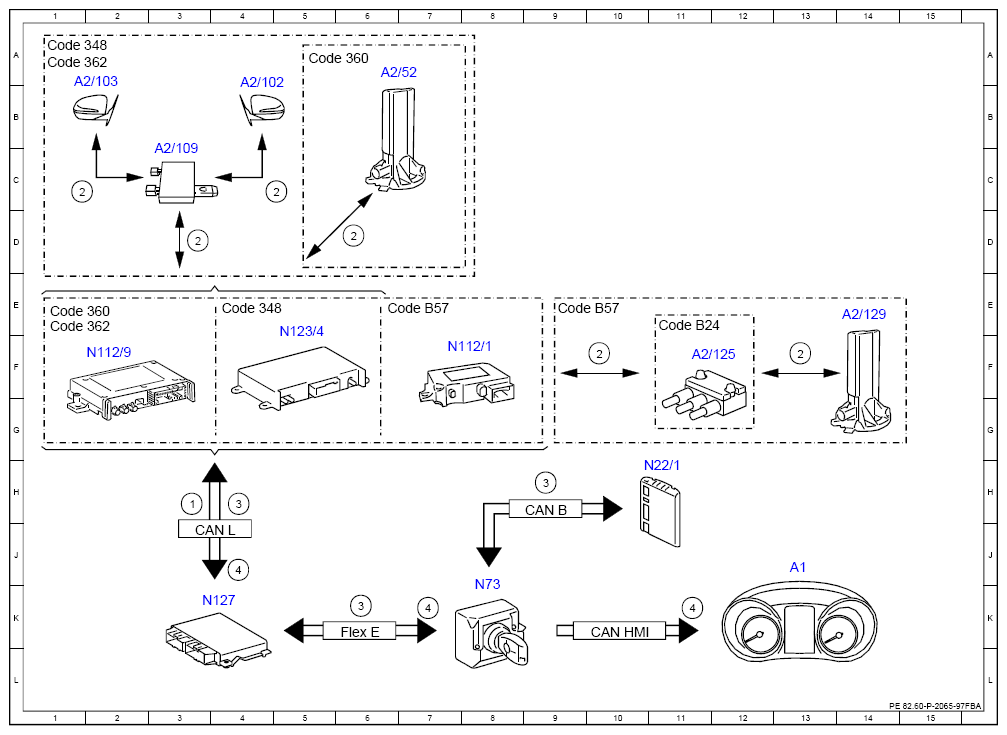

Electrical Function Schematic For Hybrid Vehicle Telematics Services Function - PE82.60-P-2065-97FBA
Model 205.047
with code 348 (Emergency call/assistant system)
Model 205
up to model year 2019
with code 360 (HERMES UMTS)
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 205
up to model year 2019
with code 360 (HERMES UMTS)
with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Model 205
with code 362 (HERMES communications module LTE)
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 205
with code 362 (HERMES communications module LTE)
with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Model 205
with code B57 (KOM Module battery charging)
Model 253 (except 253.99)
up to model year 2019
with code 360 (HERMES UMTS)
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 253 (except 253.99)
up to model year 2020
with code 362 (HERMES communications module LTE)
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 253.99
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Charging voltage and charging current, signal | 3H |
| 2 | Telephone, signal | 3D |
| 2 | Telephone, signal | 10F |
| 2 | Telephone, signal | 1C |
| 2 | Telephone, signal | 5C |
| 2 | Telephone, signal | 6D |
| 2 | Telephone, signal | 13F |
| 3 | Pre-air conditioning, status | 3H |
| 3 | Pre-air conditioning, status | 8H |
| 3 | Pre-air conditioning, status | 6K |
| 4 | Instrument cluster, message | 7K |
| 4 | Instrument cluster, message | 4J |
| 4 | Instrument cluster, message | 11K |
| A1 | Instrument cluster | 13J |
| A2/102 | Left telephone antenna | 4B |
| A2/103 | Right telephone antenna | 1B |
| A2/109 | Telephone antenna splitter | 3C |
| A2/125 | Communications module/stationary heater antenna splitter | 11F |
| A2/129 | Communications module/stationary heater antenna | 14E |
| A2/52 | Emergency call system antenna | 6A |
| CAN B | Interior CAN | 9H |
| CAN HMI | User interface CAN | 10K |
| CAN L | Hybrid CAN | 3J |
| Code 348 | Emergency call/assistance system | 4E |
| Code 348 | Emergency call/assistance system | 1A |
| Code 360 | HERMES UMTS | 1E |
| Code 360 | HERMES UMTS | 5A |
| Code 362 | HERMES LTE | 1E |
| Code 362 | HERMES LTE | 1A |
| Code B24 | Radio remote control for stationary heater | 11E |
| Code B57 | COM MODULE battery status | 6E |
| Code B57 | COM MODULE battery status | 9E |
| Flex E | Chassis FlexRay | 6K |
| N112/1 | Telematics services communication module | 7F |
| N112/9 | HERMES control unit | 2F |
| N123/4 | Emergency call system control unit | 5F |
| N127 | Drivetrain control unit | 4K |
| N22/1 | Climate control control unit | 11H |
| N73 | Electronic ignition switch control unit | 8K |
