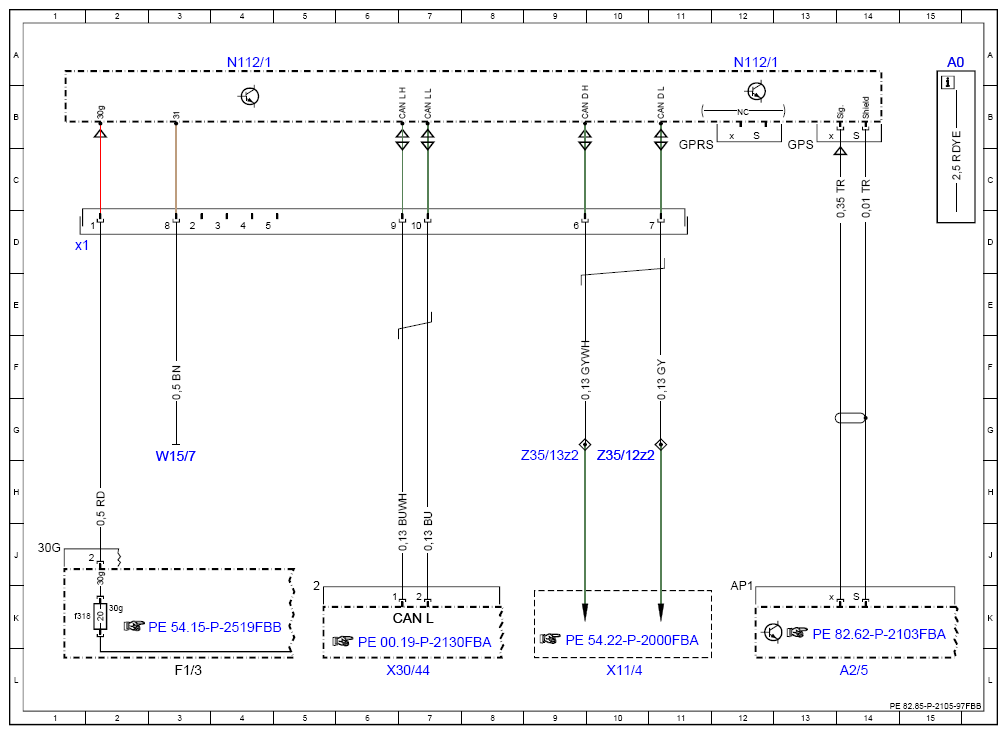

(Wiring Diagram for Telematics Services Communications Module Control Unit - PE82.85-P-2105-97FBB)
Model 205
up to model year 2019
with code 700 (Vehicle production location China)
with code B57 (KOM Module battery charging)
except code B54 (Live Traffic Information)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15A |
| A2/5 | Global positioning system antenna splitter | 14L |
| CAN L | Hybrid CAN | 7K |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3f318 | Fuse 318 | 1K |
| N112/1 | Telematics services communication module | 4A |
| N112/1 | Telematics services communication module | 12A |
| N112/1x1 | Telematics services communication module electrical connector | 1D |
| W15/7 | Right front footwell ground point | 3H |
| X11/4 | Diagnostic connector | 10L |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 6L |
| Z35/12z2 | Diagnostic CAN (CAN D) low connector sleeve | 10G |
| Z35/13z2 | Diagnostic CAN (CAN D) high connector sleeve | 9G |
