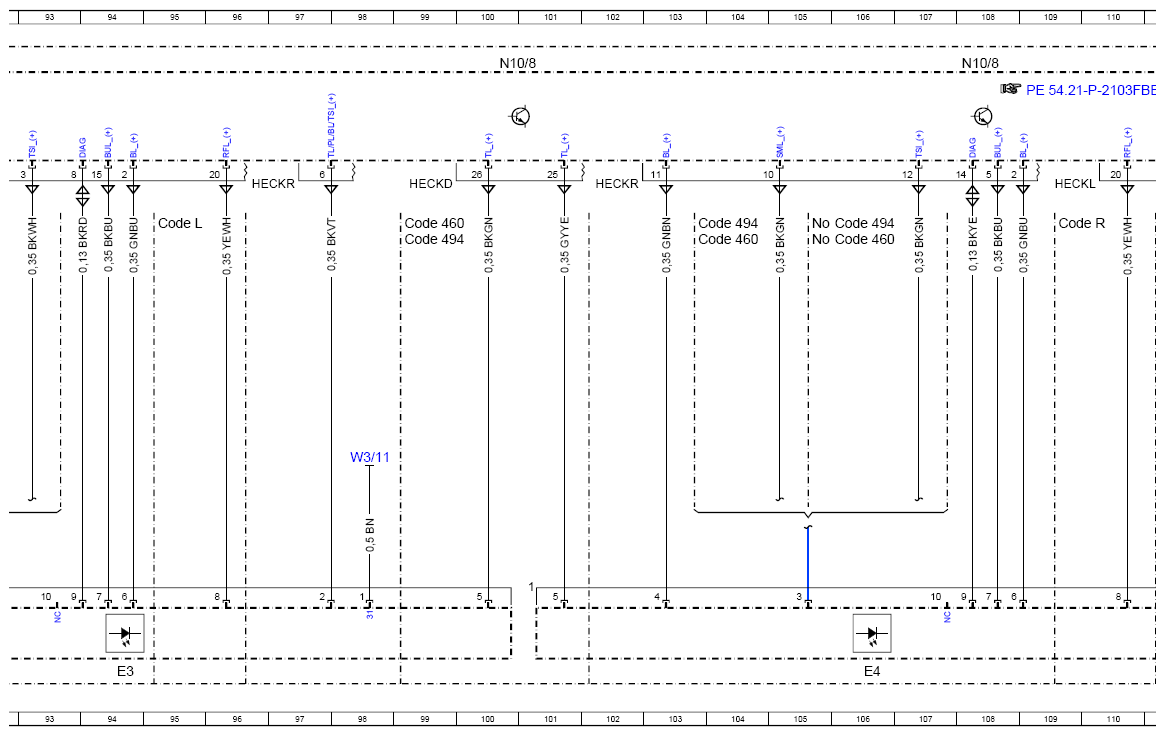

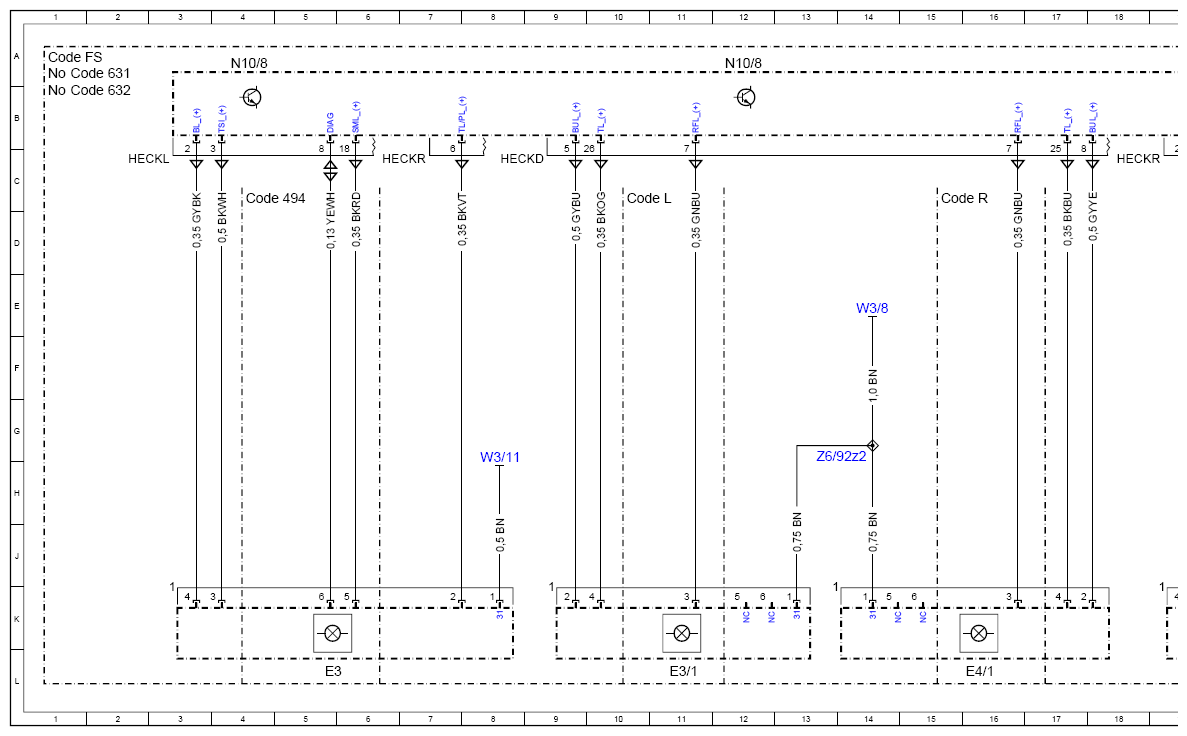

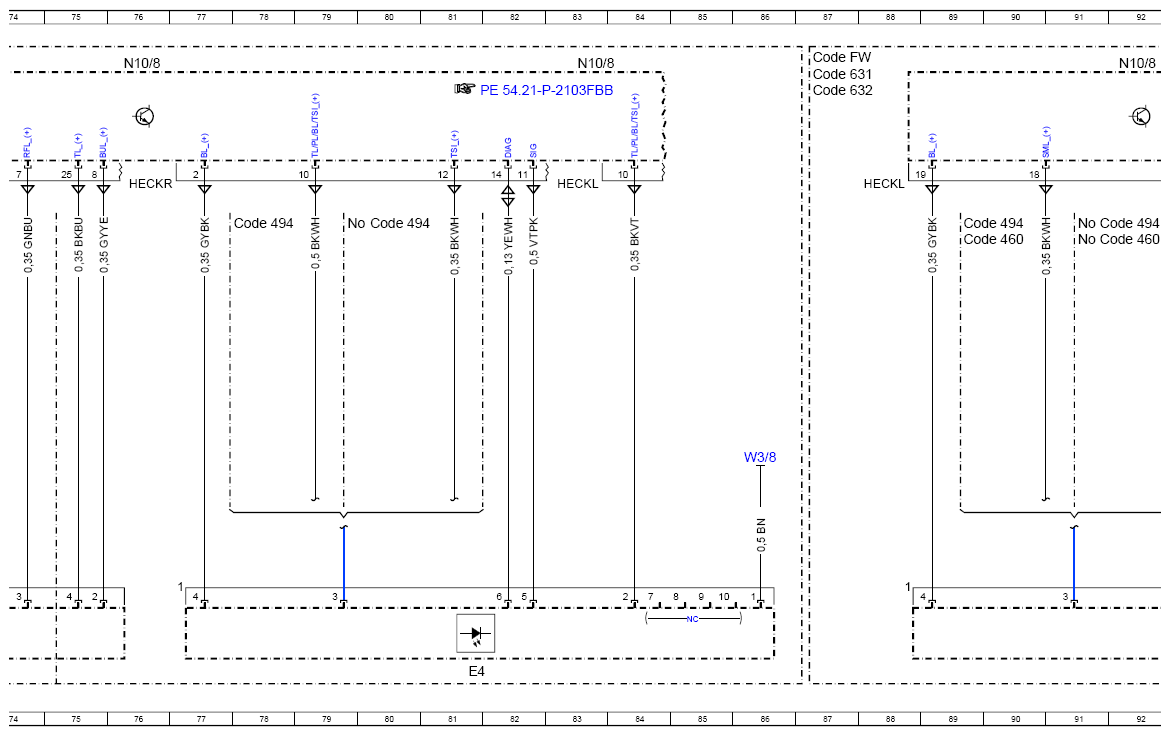

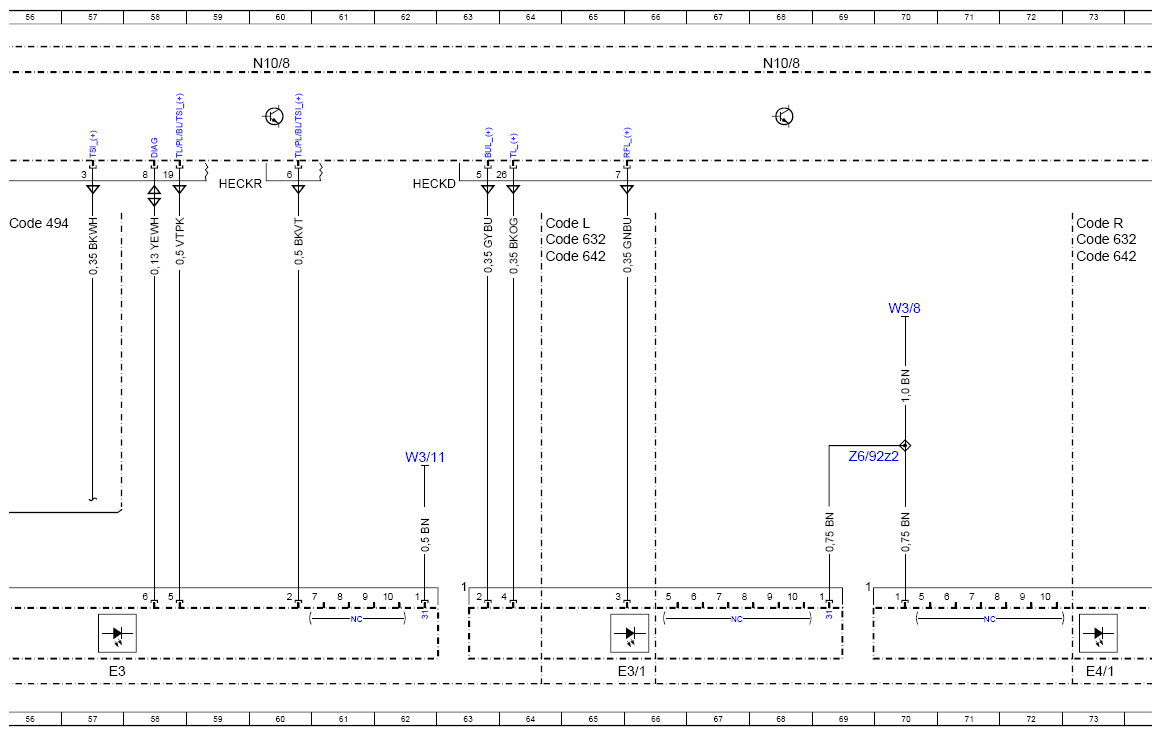

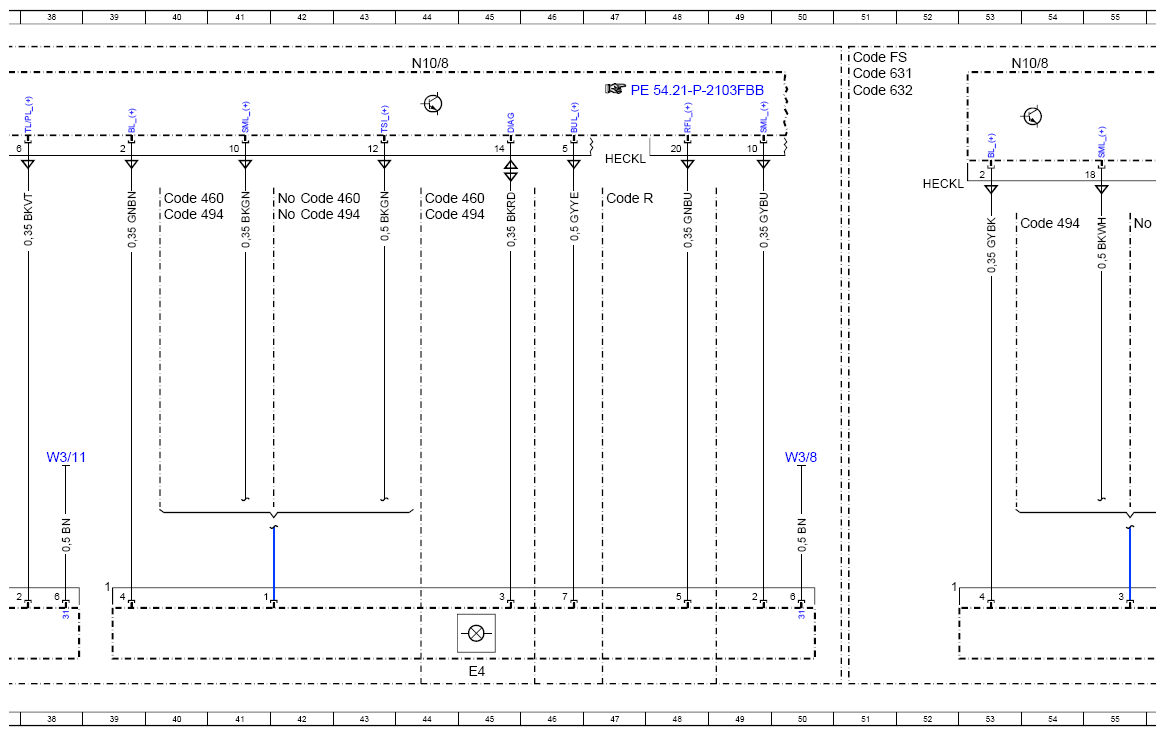

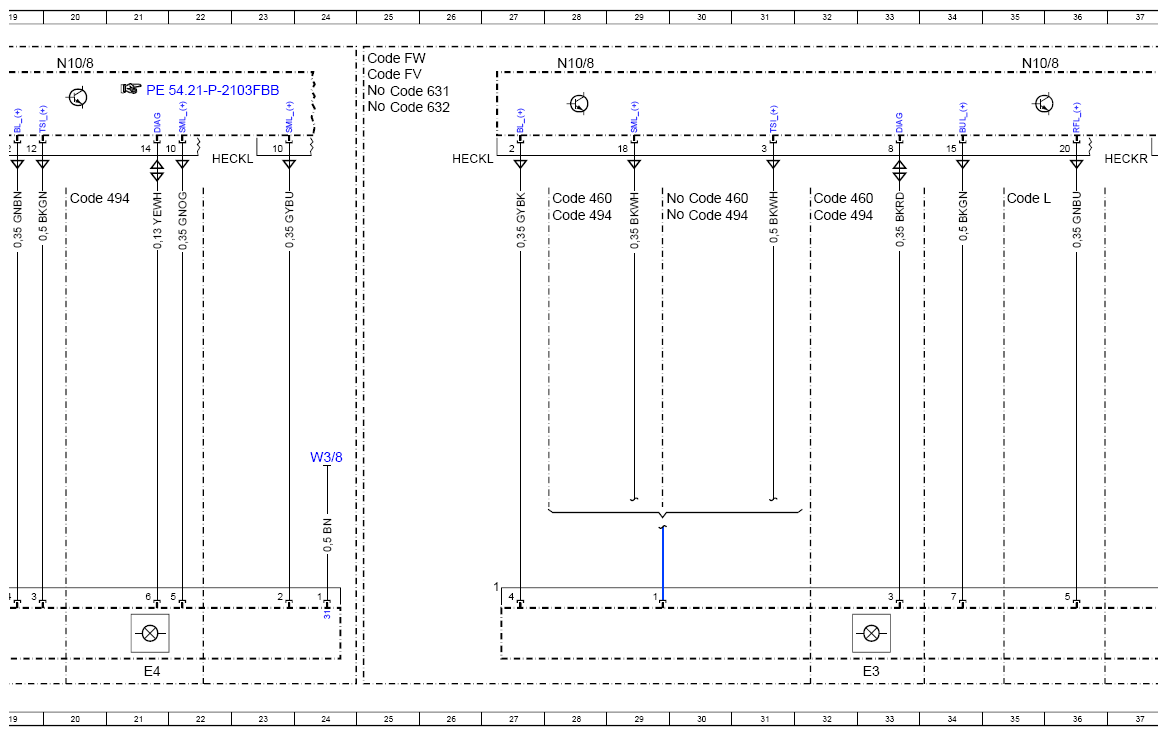

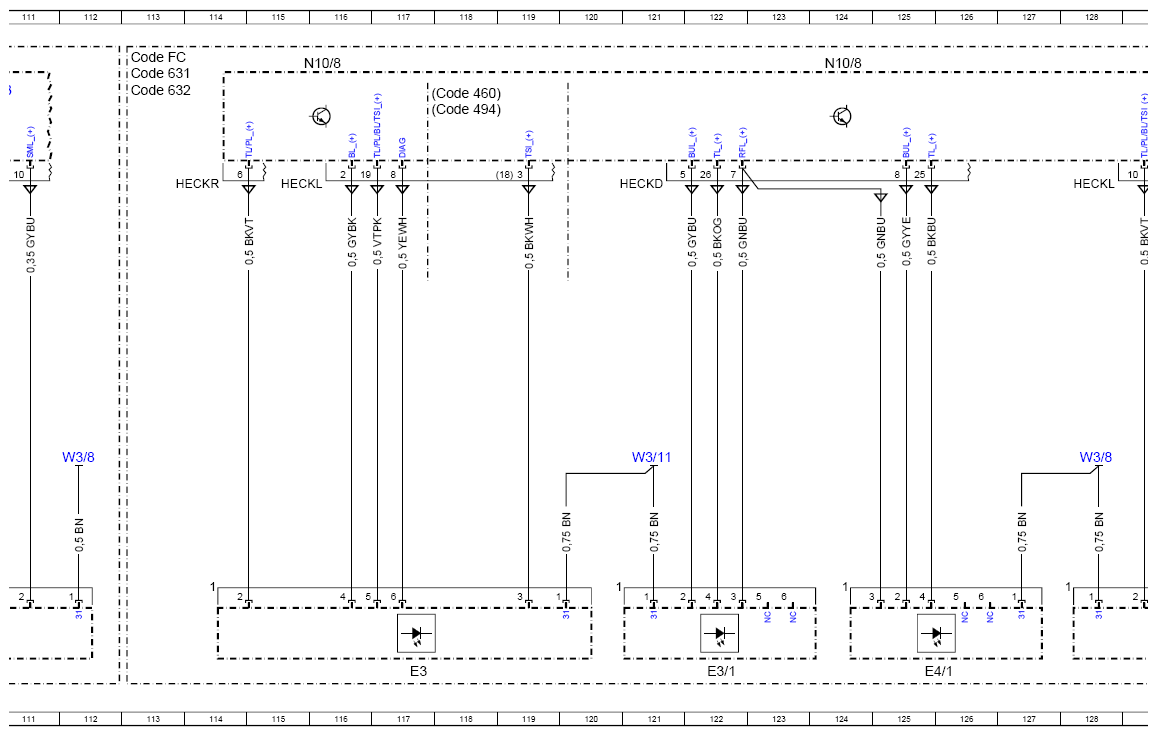

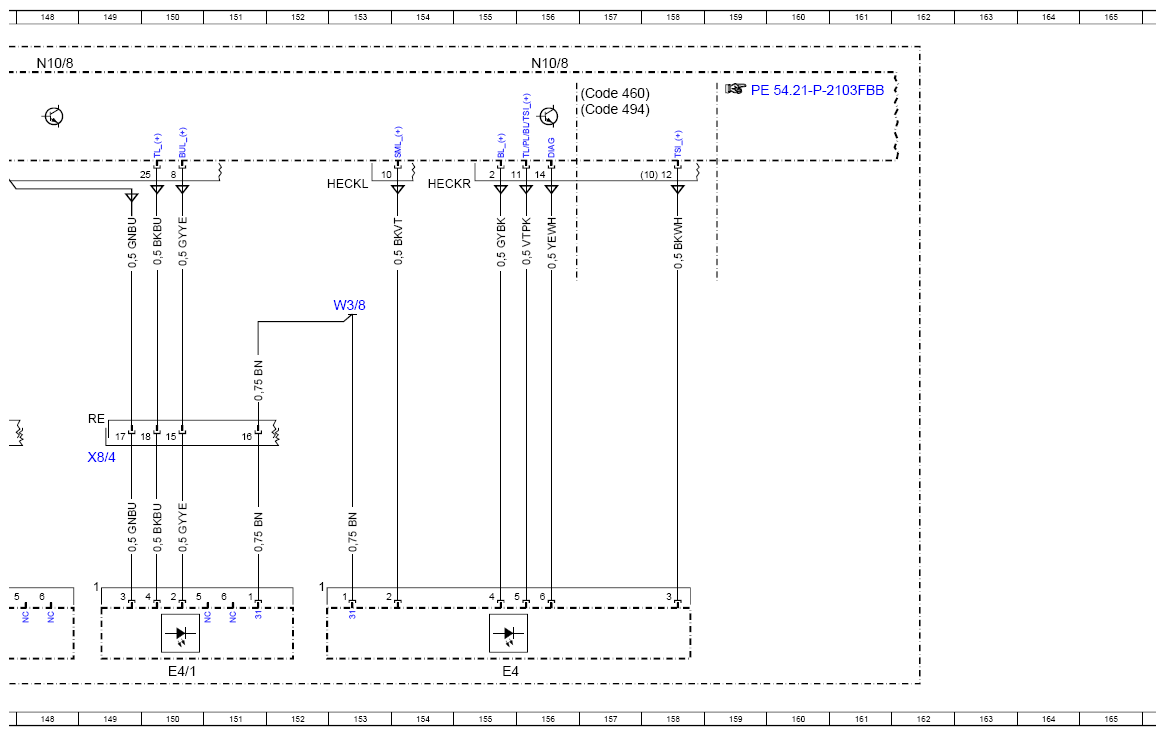

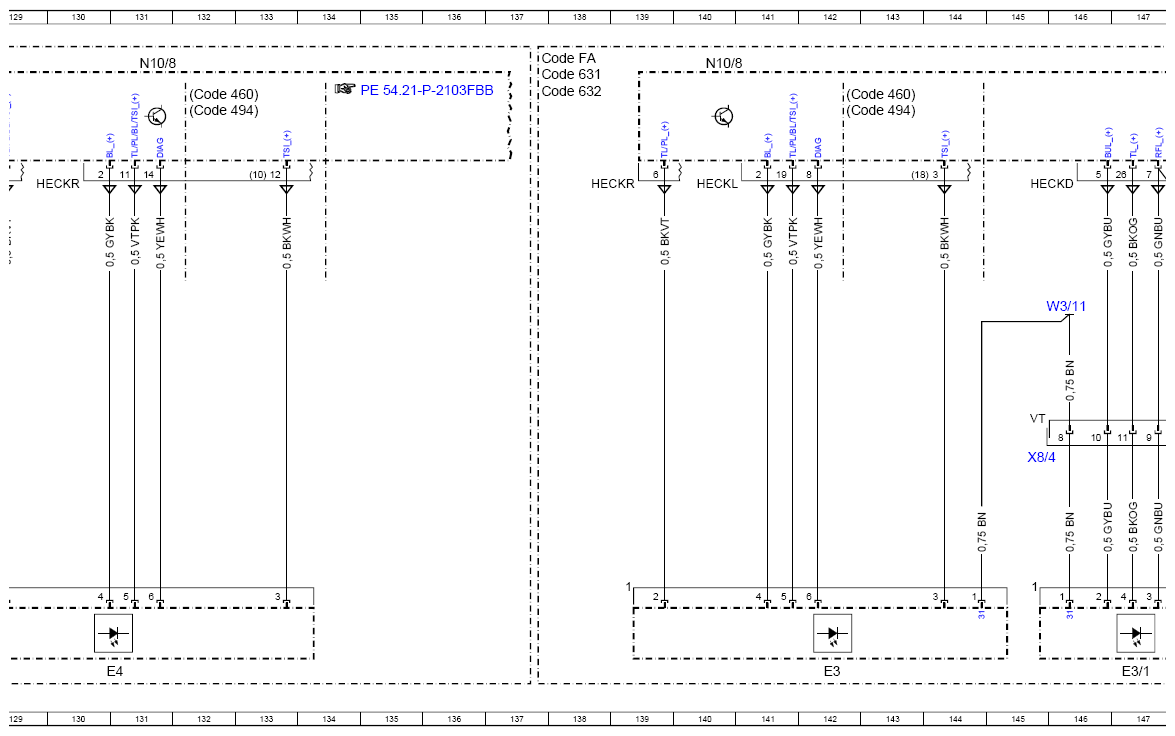

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FBO
Model 205
as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|

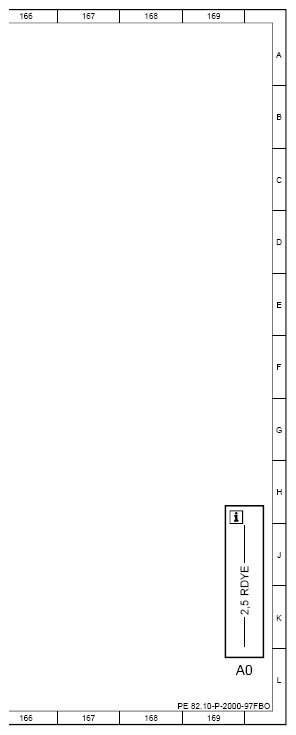

| A0 | Use of wiring diagrams | 169L |
| Code 460 | Canada version | 32C |
| Code 460 | Canada version | 30C |
| Code 460 | Canada version | 28C |
| Code 460 | Canada version | 42C |
| Code 460 | Canada version | 44C |
| Code 460 | Canada version | 40C |
| Code 460 | Canada version | 99D |
| Code 460 | Canada version | 91D |
| Code 460 | Canada version | 89D |
| Code 460 | Canada version | 103D |
| Code 460 | Canada version | 106D |
| Code 460 | Canada version | 117B |
| Code 460 | Canada version | 132B |
| Code 460 | Canada version | 142B |
| Code 460 | Canada version | 157B |
| Code 494 | USA version | 32D |
| Code 494 | USA version | 4C |
| Code 494 | USA version | 20C |
| Code 494 | USA version | 28D |
| Code 494 | USA version | 30D |
| Code 494 | USA version | 42D |
| Code 494 | USA version | 40D |
| Code 494 | USA version | 44D |
| Code 494 | USA version | 56D |
| Code 494 | USA version | 53D |
| Code 494 | USA version | 78D |
| Code 494 | USA version | 80D |
| Code 494 | USA version | 99D |
| Code 494 | USA version | 91D |
| Code 494 | USA version | 89D |
| Code 494 | USA version | 103D |
| Code 494 | USA version | 106D |
| Code 494 | USA version | 117B |
| Code 494 | USA version | 132B |
| Code 494 | USA version | 142B |
| Code 494 | USA version | 157B |
| Code 631 | Static LED headlamp, left-hand traffic | 1A |
| Code 631 | Static LED headlamp, left-hand traffic | 25B |
| Code 631 | Static LED headlamp, left-hand traffic | 51A |
| Code 631 | Static LED headlamp, left-hand traffic | 87A |
| Code 631 | Static LED headlamp, left-hand traffic | 113A |
| Code 631 | Static LED headlamp, left-hand traffic | 137A |
| Code 632 | Static LED headlamp, right-hand traffic | 1B |
| Code 632 | Static LED headlamp, right-hand traffic | 25B |
| Code 632 | Static LED headlamp, right-hand traffic | 64D |
| Code 632 | Static LED headlamp, right-hand traffic | 73D |
| Code 632 | Static LED headlamp, right-hand traffic | 51B |
| Code 632 | Static LED headlamp, right-hand traffic | 87B |
| Code 632 | Static LED headlamp, right-hand traffic | 113B |
| Code 632 | Static LED headlamp, right-hand traffic | 137B |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 73D |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 64D |
| Code FA | CABRIOLET | 137A |
| Code FC | COUPE | 113A |
| Code FS | STATION WAGON | 1A |
| Code FS | STATION WAGON | 51A |
| Code FV | LONG SEDAN | 25A |
| Code FW | SEDAN | 25A |
| Code FW | SEDAN | 87A |
| Code L | LEFT-HAND DRIVE | 10C |
| Code L | LEFT-HAND DRIVE | 35C |
| Code L | LEFT-HAND DRIVE | 64D |
| Code L | LEFT-HAND DRIVE | 95D |
| Code R | RIGHT-HAND DRIVE | 15C |
| Code R | RIGHT-HAND DRIVE | 47C |
| Code R | RIGHT-HAND DRIVE | 73D |
| Code R | RIGHT-HAND DRIVE | 109D |
| E3 | Left rear lamp unit | 5L |
| E3 | Left rear lamp unit | 33L |
| E3 | Left rear lamp unit | 57L |
| E3 | Left rear lamp unit | 94L |
| E3 | Left rear lamp unit | 117L |
| E3 | Left rear lamp unit | 142L |
| E3/1 | Inner left rear lamp unit | 11L |
| E3/1 | Inner left rear lamp unit | 65L |
| E3/1 | Inner left rear lamp unit | 122L |
| E3/1 | Inner left rear lamp unit | 147L |
| E4 | Right rear lamp unit | 21L |
| E4 | Right rear lamp unit | 45L |
| E4 | Right rear lamp unit | 81L |
| E4 | Right rear lamp unit | 106L |
| E4 | Right rear lamp unit | 131L |
| E4 | Right rear lamp unit | 155L |
| E4/1 | Inner right rear lamp unit | 16L |
| E4/1 | Inner right rear lamp unit | 73L |
| E4/1 | Inner right rear lamp unit | 125L |
| E4/1 | Inner right rear lamp unit | 150L |
| N10/8 | Rear SAM control unit | 4A |
| N10/8 | Rear SAM control unit | 12A |
| N10/8 | Rear SAM control unit | 20A |
| N10/8 | Rear SAM control unit | 28A |
| N10/8 | Rear SAM control unit | 35A |
| N10/8 | Rear SAM control unit | 44A |
| N10/8 | Rear SAM control unit | 54A |
| N10/8 | Rear SAM control unit | 60A |
| N10/8 | Rear SAM control unit | 68A |
| N10/8 | Rear SAM control unit | 76A |
| N10/8 | Rear SAM control unit | 83A |
| N10/8 | Rear SAM control unit | 92A |
| N10/8 | Rear SAM control unit | 100A |
| N10/8 | Rear SAM control unit | 108A |
| N10/8 | Rear SAM control unit | 116A |
| N10/8 | Rear SAM control unit | 124A |
| N10/8 | Rear SAM control unit | 131A |
| N10/8 | Rear SAM control unit | 140A |
| N10/8 | Rear SAM control unit | 148A |
| N10/8 | Rear SAM control unit | 156A |
| W3/11 | Left rear wheel well ground point | 8H |
| W3/11 | Left rear wheel well ground point | 38H |
| W3/11 | Left rear wheel well ground point | 62H |
| W3/11 | Left rear wheel well ground point | 98H |
| W3/11 | Left rear wheel well ground point | 121H |
| W3/11 | Left rear wheel well ground point | 146E |
| W3/8 | Right rear wheel well ground point | 24H |
| W3/8 | Right rear wheel well ground point | 50H |
| W3/8 | Right rear wheel well ground point | 14E |
| W3/8 | Right rear wheel well ground point | 70E |
| W3/8 | Right rear wheel well ground point | 86H |
| W3/8 | Right rear wheel well ground point | 112H |
| W3/8 | Right rear wheel well ground point | 128H |
| W3/8 | Right rear wheel well ground point | 153E |
| X8/4 | Trunk lid/liftgate electrical connector | 145H |
| X8/4 | Trunk lid/liftgate electrical connector | 149H |
| Z6/92z2 | Trunk lid ground connection connector sleeve | 14G |
| Z6/92z2 | Trunk lid ground connection connector sleeve | 70G |
