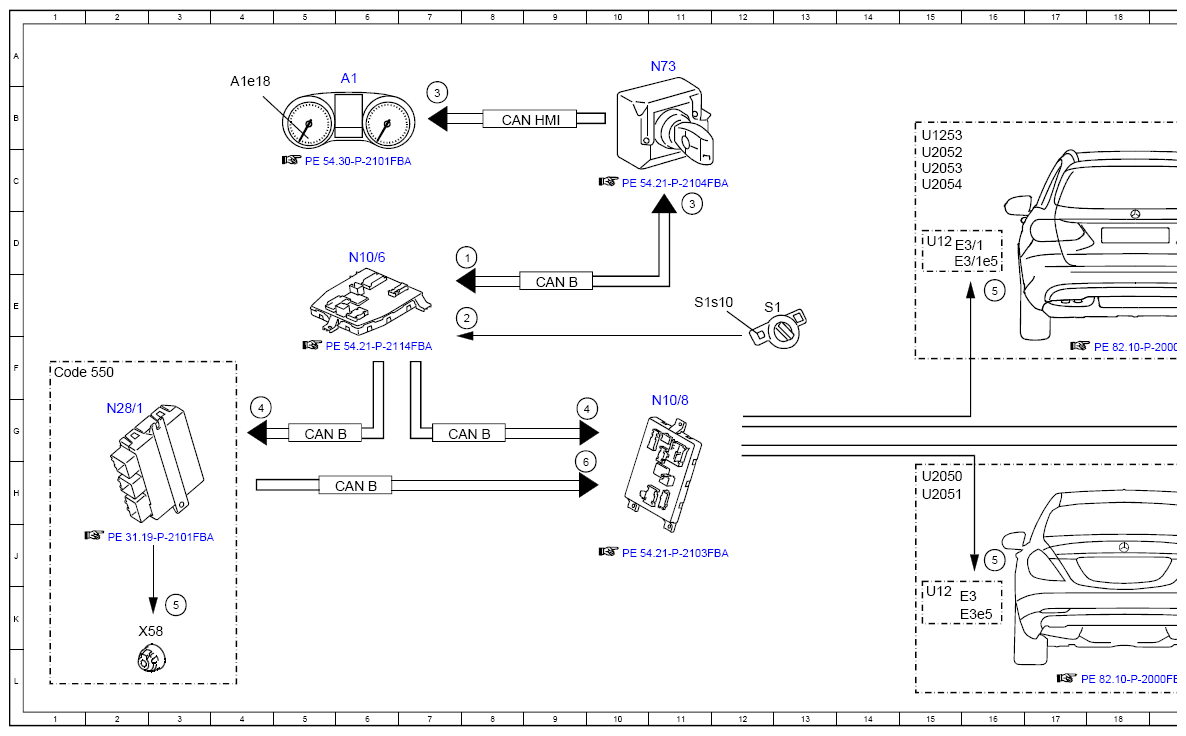

Electrical Function Schematic For Front Fog Light Actuation - PE82.10-P-2056-97FBA
Model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8D |
| 2 | Rear fog light button, status | 8E |
| 3 | Rear fog light indicator lamp, request | 7B |
| 3 | Rear fog light indicator lamp, request | 11C |
| 4 | Rear fog light, request | 9G |
| 4 | Rear fog light, request | 4G |
| 5 | Rear fog light, actuation | 3K |
| 5 | Rear fog light, actuation | 20J |
| 5 | Rear fog light, actuation | 16J |
| 5 | Rear fog light, actuation | 16E |
| 5 | Rear fog light, actuation | 21E |
| 6 | Trailer recognition, status | 9H |
| A1 | Instrument cluster | 6A |
| A1e18 | Rear fog lamp indicator lamp | 4A |
| CAN B | Interior CAN | 6H |
| CAN B | Interior CAN | 9E |
| CAN B | Interior CAN | 5G |
| CAN B | Interior CAN | 7G |
| CAN MMI | User interface CAN | 8B |
| Code 550 | Trai1er hitch | 1F |
| E3 | Left rear lamp unit | 16K |
| E3/1 | Inner left rear lamp unit | 15D |
| E3/1e5 | Left rear fog lamp | 16D |
| E3e5 | Left rear fog lamp | 16K |
| E4 | Right rear lamp unit | 20K |
| E4/1 | Inner right rear lamp unit | 21D |
| E4/1e5 | Right rear fog lamp | 21D |
| E4e5 | Right rear fog lamp | 20K |
| N10/6 | Front SAM control unit | 6D |
| N10/8 | Rear SAM control unit | 11G |
| N28/1 | Trailer recognition control unit | 2G |
| N73 | Electronic ignition switch control unit | 11A |
| S1 | Exterior lights switch | 12E |
| S1s10 | Rear fog light button | 11E |
| U12 | Valid for left-hand drive vehicles | 15K |
| U12 | Valid for left-hand drive vehicles | 15D |
| U1253 | Valid for model 253 | 15B |
| U13 | Valid for right-hand drive vehicles | 21D |
| U13 | Valid for right-hand drive vehicles | 21K |
| U2050 | Valid for model 205. 0 | 15H |
| U2051 | Valid for model 205. 1 | 15H |
| U2052 | Valid for model 205. 2 | 15C |
| U2053 | Valid for model 205. 3 | 15C |
| U2054 | Valid for model 205. 4 | 15C |
| X58 | Trailer socket | 2K |
