Change Changeable Cover For Illuminated Door Sill Molding - AZ82.20-P-0009LW

Model 205.0/2

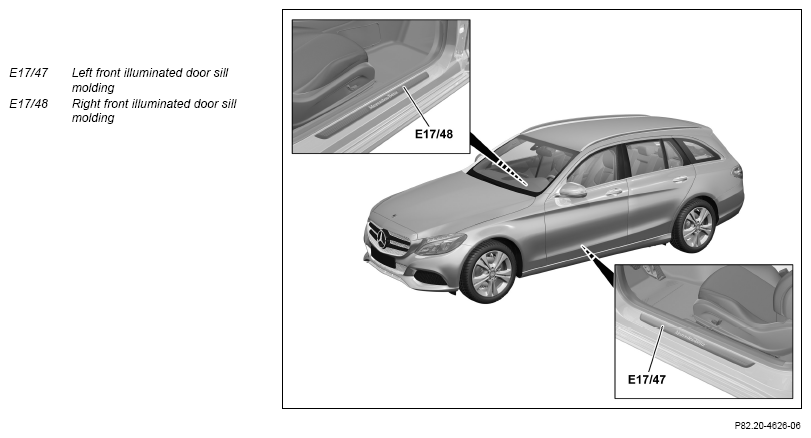

Shown on MODEL 205.2

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove

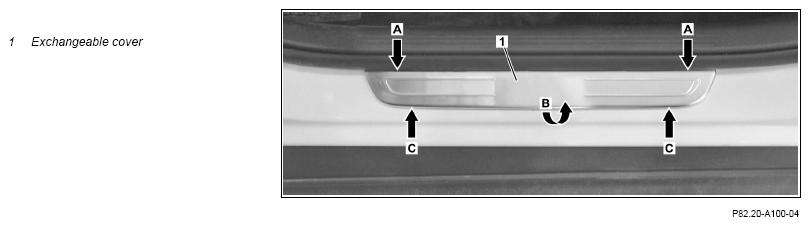

1	Carefully slide exchangeable cover (1) downwards (arrow A), pull downward from door sill (arrow B), then slide upwards (arrow C) and remove.	Carefully remove exchangeable cover (1). Otherwise, the paint at the entrance may be damaged.
		Long wedge	Fig 1
	Install

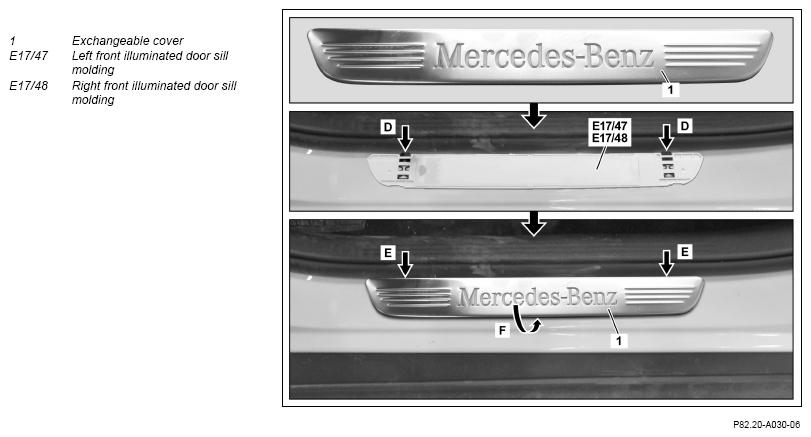

2	Hook retaining lugs of exchangeable cover (1) onto springs (arrow D) of front left illuminated door sill molding (E17/47) or right front illuminated door sill molding (/E17/48) and push towards the bottom against the spring force (arrow E), while doing so carefully press towards the door sill (arrow F) until the exchangeable cover (1) latches into place.	Carefully install exchangeable cover (1). Otherwise, the paint at the entrance may be damaged.
		Ensure that it is seated and arrest properly.
		Cleaner	*BR00.45-Z-1025-04A

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG98 (see XENTRY Portal Teileinformation)	Transmission cover parts kit	1
