Audio 30 APS Navigation System Startup - AN82.61-P-1002-08Q

MODEL 209.3## /4## 1#

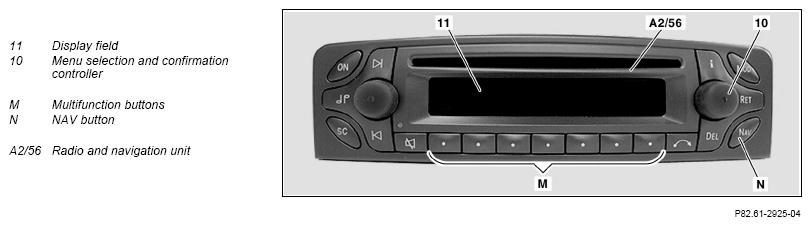

Audio 30 APS controls

Courtesy of MERCEDES-BENZ USA

	Startup step	Operation using multifunction buttons (M)	Feedback in display panel (11)
1	Switch on Audio 30 APS navigation system
2	Load navigation CD	Can take several minutes to load.
3	Initial startup	Park vehicle in open area with Audio 30 APS navigation system switched on (minimum time for receiving GPS satellite signals is approximately 30 minutes).	LANG POS DYN CLOCK RAD
4	Navigation menu	Call up navigation menu by pressing the NAV button (N)	Address input PREVIOUS TARGET SPECIAL TARGETS  LANG POS DYN CLOCK RAD
5	Select language	Call up voice menu by pressing the multifunction button LANG  " and select required language. Confirm by pressing menu selection and confirmation controller (10)
6	Call up calibration menu	Select "ADDRESS ENTRY"  menu by rotating menu selection and confirmation controller (10) and pressing menu selection and confirmation controller (10). Press multifunction buttons 2  and 7  in sequence and then release simultaneously.	CAL TA DEMO SENS
7	Calibration value entry	Press multifunction button "CAL"  . Select calibration value entry menu by rotating the menu selection and confirmation controller (10) and confirm by pressing the menu selection and confirmation controller (10).	AUTO CALIBRATION About  CALIBRATION VALUE ENTRY
8	Input of motor vehicle type	Select preset value "MB Car"  by rotating the menu selection and confirmation controller (10) and pressing the menu selection and confirmation controller (10).	MB passenger car V-CLASS/VITO DATA ENTRY
9	Enter tire size	Enter tire size (e.g. 205/055/016). Select numbers by rotating the menu selection and confirmation controller (10) and confirm by briefly pressing the menu selection and confirmation controller (10). Accept entry by pressing the menu selection and confirmation controller (10) for longer. The tire size must be read off of the tires on the front axle.	TIRE ENTRY: TIRE SIZE 0123456789
10	Enter tire tread values	Select tire tread value of "new"  or "used"  by rotating the menu selection and confirmation controller (10) and confirm by pressing the menu selection and confirmation controller.	TIRE TREAD NEW TREAD <> 5 MM USED TREAD << = 5  MM
11	Adopt parameters	Select "Accept values"  option and confirm by pressing the menu selection and confirmation controller (10). Calibration in progress, wait until the navigation menu reappears in the display field (11). Vehicle is now calibrated and read for use when GPS signal received. A calibration drive is no longer necessary.	ENTERED VALUES ACCEPT VALUES change
12	Enter destination in Audio 30 APS navigation system	See owner's manual.
13	Conduct a road test
