(Retrofit LED Taillamps - AZ82.10-P-0005LW)

Model 205.0## 1#

up to model year 2019

except code 460 (Canada version)

except code 494 (US version)

except code 498 (Japanese version)

except code 632 (Headlamps, LED, static, right-side traffic)

except code 642 (LED Intelligent Light System)

except code 830 (China version)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Switch off ignition and remove transmitter key from electronic ignition lock (EZS)
2	Remove trims in trunk
			AR68.30-P-4600LW
3	Remove speaker amplifier control unit and place to one side with lines connected	With CODE 810 (Sound system)
			AR82.62-P-7720LW
4	Remove power closing unit for trunk lid and place to one side with lines connected	With CODE 881 (Remote trunk closing)
			AR80.40-P-1000LW
5	Remove rear SAM control unit (N10/8)	Except CODE 401 (Seat climate control for driver and front passenger) or CODE 540 (Power roller sun blind for rear window) or CODE 873 (Seat heater for driver and front passenger) or CODE 877 (Ambiance illumination) or CODE 881 (Remote trunk closing)
		Except CODE ME06 (Hybrid drive 50 kW variant (including plug-in))	AR54.21-P-1269LW
		With CODE ME06 (Hybrid drive 50 kW variant (including plug-in)) The rear SAM control unit (N10/8) is no longer required and it must be replaced by a new rear SAM control unit (N10/8) compatible with the LED taillamps.	AR54.21-P-1269LWH
6	Remove taillamps
		The taillamps are no longer required and are replaced with LED taillamps.	AR82.10-P-4905LW
	Install
7	Install rear SAM control unit (N10/8)	Except CODE 401 (Seat climate control for driver and front passenger) or CODE 540 (Power roller sun blind for rear window) or CODE 873 (Seat heater for driver and front passenger) or CODE 877 (Ambiance illumination) or CODE 881 (Remote trunk closing)
		Except CODE ME06 (Hybrid drive 50 kW variant (including plug-in))	AR54.21-P-1269LW
		With CODE ME06 (Hybrid drive 50 kW variant (including plug-in)) Install a new rear SAM control unit (N10/8) compatible with the LED taillamps.	AR54.21-P-1269LWH

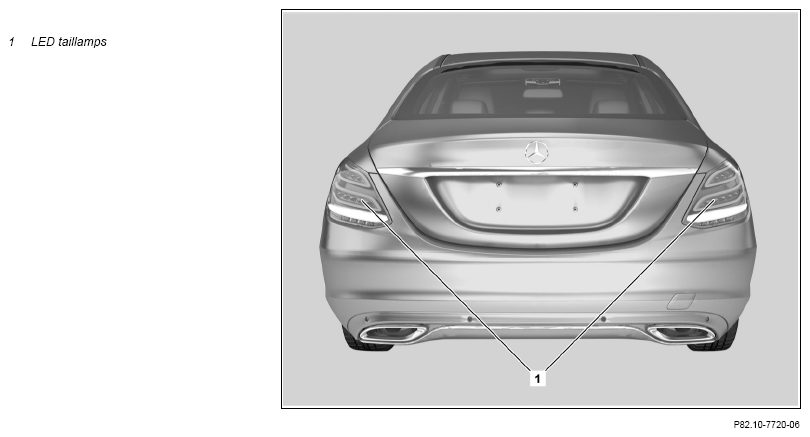

8	Install LED taillamps (1)
			AR82.10-P-4905LW
9	Install wiring harness for LED taillamps (1)		AZ82.10-P-0005-01LW
		Wiring harness repair kit, basic	Fig 2
		New passenger car wiring harness repair kit	Fig 1
10	Install speaker amplifier control unit	With CODE 810 (Sound system)
			AR82.62-P-7720LW
11	Install trunk lid power closing unit	With CODE 881 (Remote trunk closing)
			AR80.40-P-1000LW
12	Install paneling in trunk
			AR68.30-P-4600LW
13	Install remaining parts
	Update Vehicle Documentation (VeDoc)
14	Enter special equipment into the on-line vehicle data card	Code  38o (Retrofitting LED rear lamps) Here it must be noted that a letter must be used in third place.
15	Attach " LED taillamps retrofitted as per AN82.10-P-0005LW" note under field organization texts to DG 82.
16	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04B
17	Perform variant coding with XENTRY using the software calibration number (SCN)	"ezs" "Rear SAM control unit" "Instrument cluster"
18	Disconnect diagnostic system
			AD00.00-P-2000-04B
	Check
19	Perform function test

Fig 1: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
