Removing And Installing Loudspeaker In Instrument Panel - AR82.62-P-7833LW

Model 205, 253

Shown on model 205

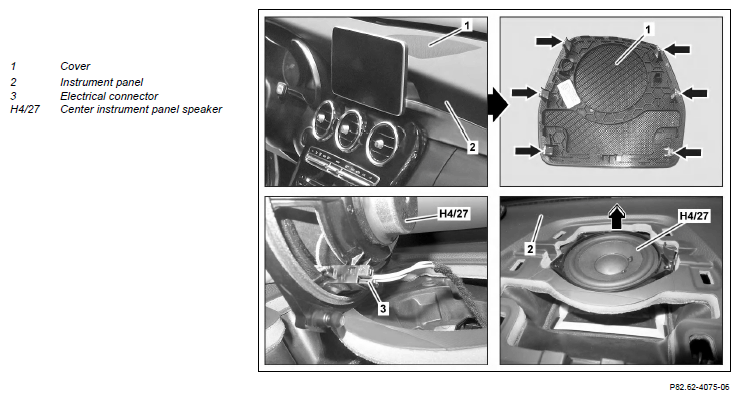

Fig 1: Instrument Panel Loudspeaker Component Location - Model 205

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and remove transmitter key
2	Unclip cover (1) at instrument panel (2) (arrows)	Clip remover	Fig 2
3	Pull center instrument panel speaker (H4/27) upwards out of mount in instrument panel (2)  until electrical connector (3) is accessible
4	Disconnect electrical connector (3) and remove center instrument panel speaker (H4/27)
5	Install in the reverse order

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
