Remove/Install Washer Fluid Reservoir Heat Exchanger - AR82.35-P-6006LW
Model 205, 213, 238, 253
with code 875 (Heated windscreen washer system)

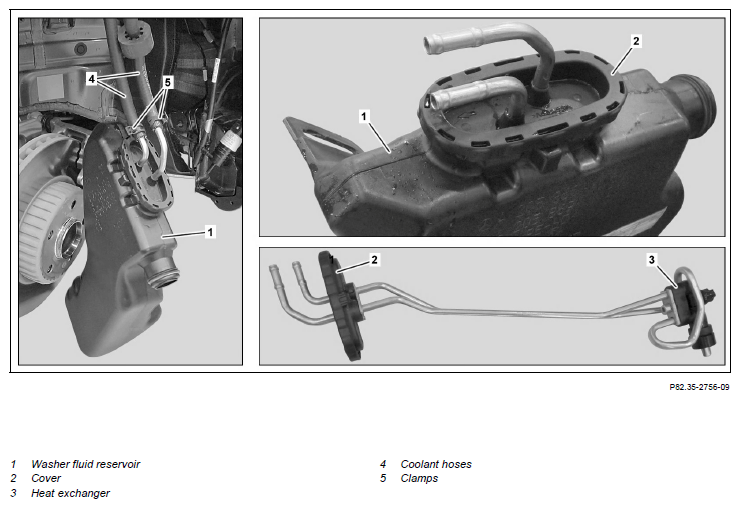

Shown on model 205
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Topical note | Notes on coolant | Model 205, 213, 238, 253 | AH20.00-P-2080-01KOA |
| Remove/install | |||
| 1 | Slowly open cap of coolant expansion reservoir and remove | ||
| 2 | Remove washer fluid reservoir (1) | AR82.35-P-6000LW | |
| 3 | Unclip cover (2) | ||
| 4 | Guide heat exchanger (3) out of washer fluid reservoir (1) | ||
| 5 | Pinch off coolant hoses (4) | Fig 2 | |
| 6 | Loosen clamps (5) and remove coolant hoses | ||
| 7 | Detach cover (2) | When replacing the heat exchanger (3). | |
| 8 | Install in the reverse order |
