Remove/Install TV Antenna Amplifier - AR82.62-P-8302LW

Model 205.0/1/2/3, 253

with code 865 (digital TV)

Shown on right side of vehicle

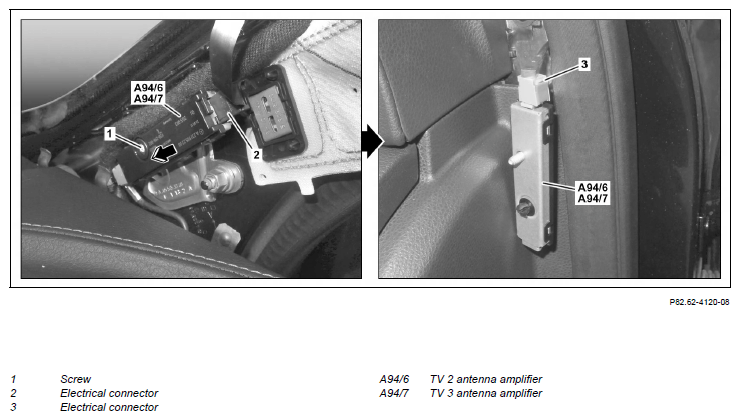

Fig 1: TV Antenna Amplifier Component Location - Model 205.0/3 With Code 865

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1.1	Remove paneling from left A-pillar	When removing the TV 2 antenna amplifier (A94/6)	AR68.30-P-4050LW
1.2	Remove paneling on right A-pillar	When removing the TV 3 antenna amplifier (A94/7)	AR68.30-P-4050LW
2	Disconnect electrical connector (2)
3	Remove bolt (1)	Screw/bolt (1) remains on TV 2 antenna amplifier (A94/6) and TV 3 antenna amplifier (A94/7).
4	Unclip TV 2 antenna amplifier (A94/6) or TV 3 antenna amplifier (A94/7) at A-pillar and disconnect electrical connector (3)
5	Install in the reverse order
