Remove/Install Microphone - AR82.62-P-7700LW
Model 205
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

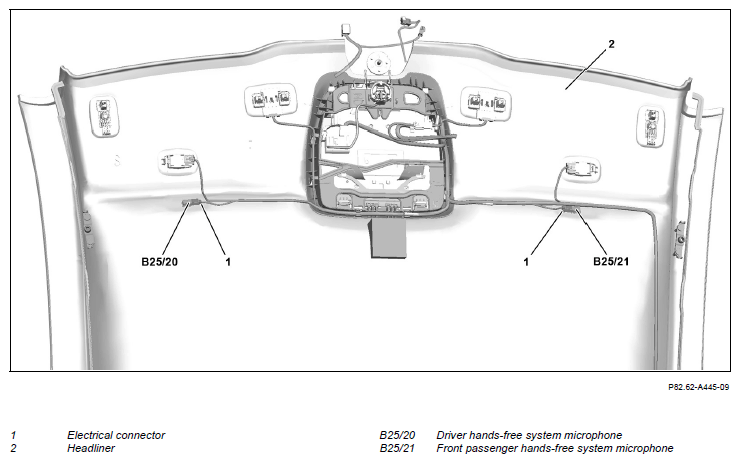

| 1 | Remove roof lining (2) and place in vehicle. | Model 205.4 | AR77.30-P-1013LWR |
| Model 205.2 | AR68.30-P-4300LWS | ||
| Model 205.3 | AR68.30-P-4300CLW | ||
| Model 205.0/1 | AR68.30-P-4300LW | ||
| 2 | Release and disconnect corresponding electrical connector (1). | ||
| 3 | Remove driver hands-free system microphone (B25/20) or front passenger hands-free system microphone (B25/21) at roof lining (2). | ||
| 4 | Install in the reverse order. |
