Remove/Install Front Door Speakers In Mirror Triangle - AR82.62-P-7850EQ
Model 205.0/1/2, 253, 293
with code 810 (Premium sound system)
Model 205.0/1/2, 253, 293
with code 853 ("Midline" sound system)

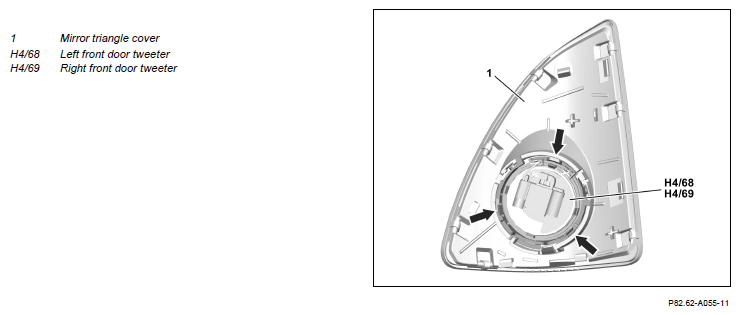

Fig 1: Front Door Mirror Triangle Speakers Component Location - Model 205.0 With Code(s) 810 And 853
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove cover for mirror triangle (1) on front door. | Model 205.0/1/2, 253, 293 with code 810 (Premium sound system) Model 205.0/1/2, 253, 293 with code 853 ("Midline" sound system) |
AR72.10-P-3001LW |
| 2 | Unclip front door tweeter (H4/68, H4/69) from mirror triangle (arrow). | Otherwise, the catch hooks (arrow) or the cover (1) may be damaged. |
|
| 3 | Install in the reverse order. |
