Remove/Install Driving Lights Actuation Module - AR82.10-P-4650LW

Model 205

with code 640 (High-performance LED)

Model 205

with code 641 (Headlamps, LED, dynamic, left-side traffic)

Model 205

with code 642 (Headlamps, LED, dynamic, right-side traffic)

Shown on left side of vehicle

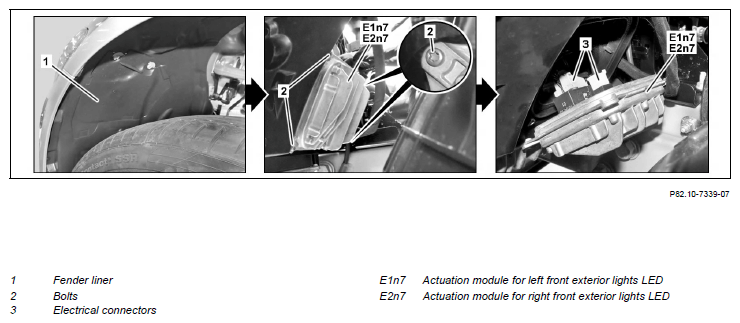

Fig 1: Driving Lights Actuation Module Component Location - Model 205 With Code(s) 640, 641, And 642

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Perform initial startup of left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7)	Only when replacing the left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7).
			AD00.00-P-2000-04B
		Note Data Matrix code on left front lamp unit or right front lamp unit.
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
3	Turn left or right front wheel towards the inside
4	Detach front section of fender liner (1) until left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) is accessible		AR88.10-P-1300LW
5	Remove screws/bolts (2) from left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7)
6	Remove left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) and disconnect electrical connectors (3)	Ensure gasket is correctly installed.
7	Install in the reverse order
