Remove/Install Antenna Splitter - AR82.70-P-8953LW
Model 205.0/2
with code 537 (DAB digital radio standard (Digital Audio Broadcast))
with code 865 (digital TV)
Model 205.0/2
with code B24 (Remote control for Auxiliary heating)
with code B54 (Live Traffic Information)
Shown on MODEL 205.0
Shown on MODEL 205.0

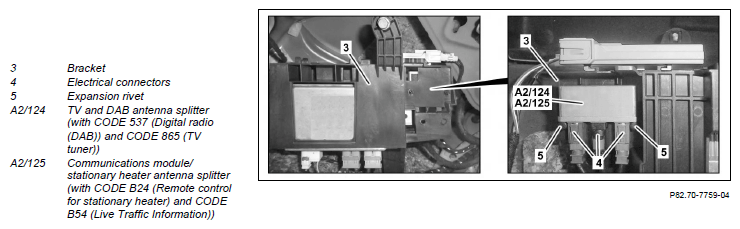

Fig 1: Antenna Splitter Component Location - Model 205.0 With Codes 537 And 865, Or With Code B24 And B54
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1.1 | Remove side paneling in left trunk | Model 205.0 with code 537 (DAB digital radio standard (Digital Audio Broadcast)) with code 865 (digital TV) Model 205.0 with code B24 (Remote control for Auxiliary heating) with code B54 (Live Traffic Information) |
AR68.30-P-4800LW |

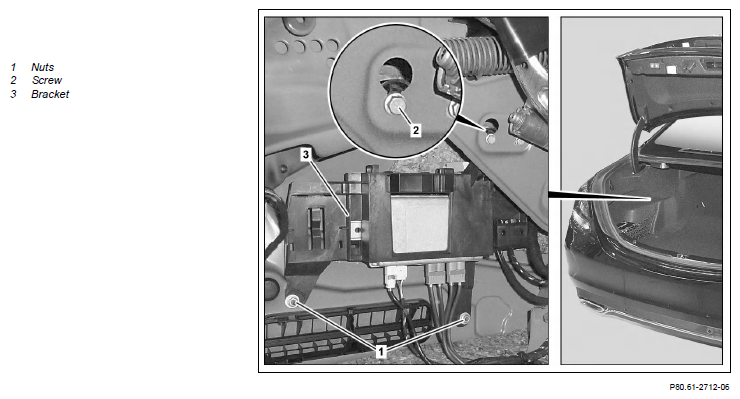

| 1.2 | Detach left side load compartment paneling in the rear area until the nuts (1) and the screw/bolt (2) are accessible | Model 205.2 with code 537 (DAB digital radio standard (Digital Audio Broadcast)) with code 865 (digital TV) Model 205.2 with code B24 (Remote control for Auxiliary heating) with code B54 (Live Traffic Information) |
AR68.30-P-1180LWS |
| 2 | Remove vehicle tool kit bracket | Model 205.0/2 with code 537 (DAB digital radio standard (Digital Audio Broadcast)) with code 865 (digital TV) with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) |
|
| 3 | Unscrew nuts (1) | ||
| 4 | Loosen screw/bolt (2) and put bracket (3) to one side with lines attached | ||
| 5 | Disconnect electrical connections (4) | ||
| 6 | Remove expansion rivet (5) | ||
| 7 | Remove TV and DAB antenna splitter (A2/124) or communications module/stationary heater antenna splitter (A2/125) from bracket (3) | ||
| 8 | Install in the reverse order |
