Partially Replace Inner Side Wall With Outer Rear Wheel Well - Ar63.10-P-6050CLW
Model 205.3
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contactwith fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | General information on body repair | AH60.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Pretreatment of bonding surfaces | AH60.00-P-0008-01SX | |
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove detachable parts in area to be repaired | ||
| 2 | Cover all detachable parts remaining on vehicle with spark protection blankets | ||
| 3 | Remove C-pillar | AR63.20-P-0500CLW | |
| 4 | Set up straightening bench with straightening bench crossmembers and straightening tool set | ||
| 000 588 01 23 00 Body straightening system | WS60.00-P-0023K | ||
| 5 | Place vehicle on straightening bench and fasten | ||
| 6 | Remove C-pillar inner side wall (1) and reinforcement (2) | AR63.10-P-6050-01CLW | |
| 000 588 00 84 00 Heat gun | Round wire brush Body power jigsaw Spot weld milling machine Wet/dry vacuum cleaner |
WS54.00-P-0049B | |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| 7 | Prepare C-pillar inner side wall (1) and reinforcement (2) | Round wire brush Body power jigsaw |
AR63.10-P-6050-02CLW |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| Install | |||
| Notice | Measures for preventing damage to components when performing electric welding and soldering work | AH60.00-P-0001-02A | |
| General information on riveting | AH60.00-P-0003-01N | ||
| 8 | Install C-pillar inner side wall (1) and reinforcement (2) | AR63.10-P-6050-03CLW | |
| 000 588 01 84 00 Welder | WS60.00-P-0021K | ||
| 000 588 02 84 00 Welder | WS60.00-P-0022K | ||
| 000 588 01 23 00 Body straightening system | Commercially available devices/tools Round wire brush Manual temporary fastener 6.35 mm Blind rivet gun (minimum pull-off force 19 kN) Wet/dry vacuum cleaner |
WS60.00-P-0023K | |
| Parts kit for 2-component adhesive for body | *BR00.45-Z-1162-02A | ||
| Blind rivet Y1 6.4 x 12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | *BR00.45-Z-1035-13A | ||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||

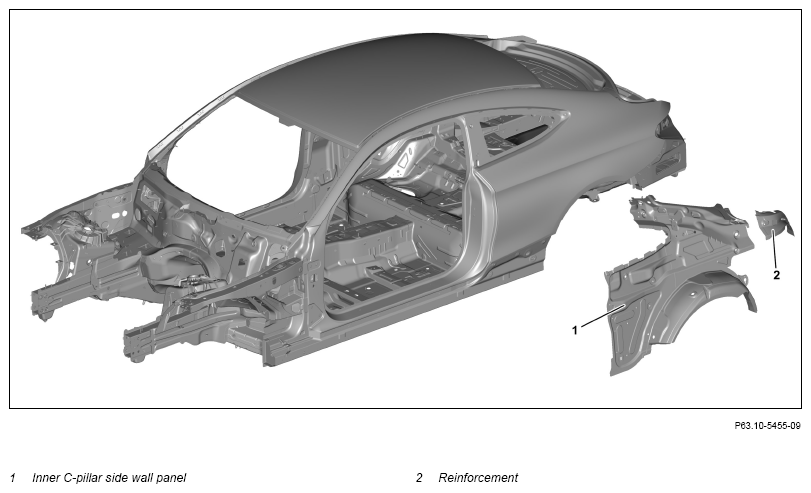

| Fig 1 | |||
| 9 | Release vehicle from straightening bench, lift vehicle and remove straightening bench | ||
| 10 | Clean welds and sheet metal flanges | Round wire brush |
|
| 11 | Install C-pillar | AR63.20-P-0500CLW | |
| 12 | Remove spark protection blankets | ||
| 13 | Install detachable parts in area to be repaired |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
| BR00.45-Z-1035-13A | Blind rivet Y1 6.4 x 12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | A 000 991 76 32 |
| BR00.45-Z-1162-02A | Parts kit for 2-component adhesive for body | A 012 989 17 71 |
