Remove/Install Front End CROSSMEMBER - Ar62.30-P-2300LWC

Model 205

Shown on model 205 with engine 264

G14805301Courtesy of MERCEDES-BENZ USA

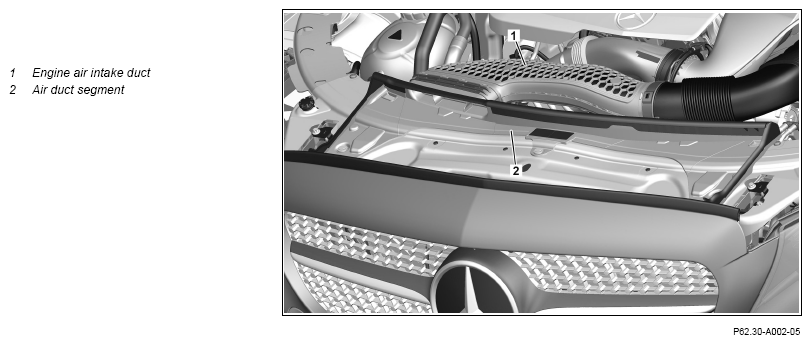

G14805302Courtesy of MERCEDES-BENZ USA

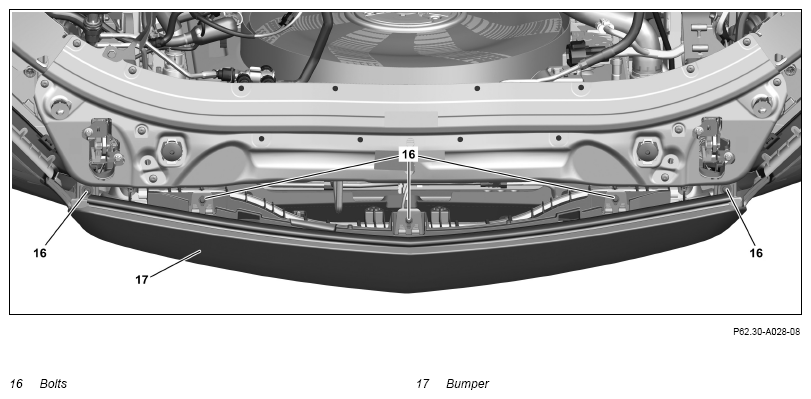

Shown on model 205 with engine 264 with removed bumper

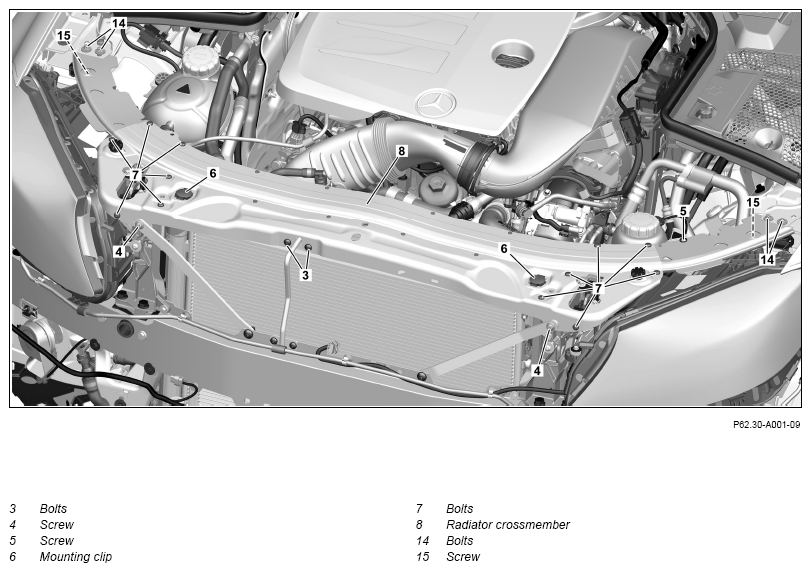

G14805303Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
REMOVINGINSTALLING Remove/install
1 Open engine hood and position upright.
2 Disconnect engine air intake duct (1) from air duct segment (2). IMPORTANT The number of engine air intake ducts (1) varies depending on the engine.
3 Remove air duct segment (2). SPECIAL TOOL Clip remover Fig 2
4 Remove screw (5). Model 205 with engine 264
Model 205 with engine 274 with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Model 205 with engine 654 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 205 with engine 654
with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) TORQUE SPECIFICATION Model 205 with engine 274 with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Model 205 with engine 654 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 205 with engine 654
with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Bolt, coolant expansion reservoir for high-voltage battery cooling to crossmember		 *BA20.50-P-1010-01A
    TORQUE SPECIFICATION Model 205 with engine 264Screw, low-temperature circuit expansion reservoir to crossmember *BA20.20-P-1002-02B
5 Remove bolts (16).
6 Pull bumper (17) in upper area towards front until screws (4) can be accessed.
7 Remove screws/bolts (4). TORQUE SPECIFICATION Bolt, strut to cross member *BA62.30-P-1003-01H
8 Remove screw/bolts (3). TORQUE SPECIFICATION Bolt, lock striker to cross member/front-module carrier *BA62.30-P-1008-01H
9 Remove screws (7).
10 Remove screws (14). TORQUE SPECIFICATION Screw, front module carrier/cross strut to body/angle bracket for front module carrier *BA62.30-P-1007-01H
11 Remove screw/bolts (15).
12 Remove retaining clips (6).
13 Release electric line of front 360° camera. Model 205
with code 501 (360° camera) IMPORTANT Do not disconnect electrical connector of front 360° camera.
SPECIAL TOOL Dismantling tool		 Fig 1
14 Remove radiator crossmember (8) upwards from vehicle.
15 Install in the reverse order
ENGINE RADIATOR, COOLANT HOSES AND LINES

Number Designation Engine 264
BA20.20-P-1002-02B Screw, low-temperature circuit expansion reservoir to crossmember Nm 8
HEAT EXCHANGER

Number Designation Model 205 with code ME05/ME06
BA20.50-P-1010-01A Bolt, coolant expansion reservoir for high-voltage battery cooling to crossmember Nm 7
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 205
BA62.30-P-1003-01H Bolt, strut to cross member M8 Nm 20
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 205
BA62.30-P-1007-01H Screw, front module carrier/cross strut to body/angle bracket for front module carrier Nm 11
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 205
BA62.30-P-1008-01H Bolt, lock striker to cross member/front-module carrier Nm 10
Fig 1: Dismantling Tool (000 589 95 63 00)
G12619044Courtesy of MERCEDES-BENZ USA
Fig 2: Clip Remover (452 589 01 63 00)
G11129172Courtesy of MERCEDES-BENZ USA
