Assess Condition Of Brake Linings - AP42.10-P-4252CAA

Model 205

Courtesy of MERCEDES-BENZ USA

Shown on model 221

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
	Check

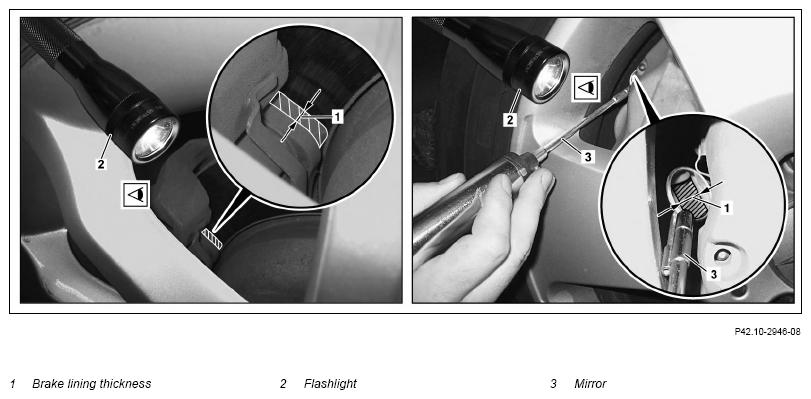

1	Assess brake pad thickness (1) of brake pads on front axle.	If necessary, use a flashlight (2) or a mirror (3). The thickness of the pad backing plate can be used as a reference when assessing the brake lining thickness (1).
		Front axle Brake lining thickness If, in exceptional cases, assessment through a visual inspection is not possible. ↓ Remove front wheels and assess them. After obtaining special order.	*BE42.10-P-1001-05V
2	Assess brake pad thickness (1) of brake pads on rear axle.	If necessary, use a flashlight (2) or a mirror (3). The thickness of the pad backing plate can be used as a reference when assessing the brake lining thickness (1).
		Rear axle Brake lining thickness If, in exceptional cases, assessment through a visual inspection is not possible. ↓ Remove rear wheels and assess them. After obtaining special order.	*BE42.10-P-1001-15S
3	Determine expected remaining distance of brake pads.		AP42.10-P-4253-03EW
		To determine the prospective remaining distance for each axle, refer to the brake pad with the least brake pad thickness (1). In order to avoid an unscheduled workshop visit between services, determine the remaining distance of the present brake pads. If the remaining distance determined is less than the next service interval, advise the customer to replaced the brake pads before the due service date. If the wear limit for the brake pads is reached, ↓ Replace brake linings. After obtaining special order.

CHECK VALUES FOR FRONT BRAKE LINING

Number	Designation			Model 205.086/087/286/287/386/387/486/487	Model 205.00/01/03/04/05/06/07/080/083/084/1/20/21/23/24/25/26/27/280/283/284/30/31/34/36/37/380/383/384/40/41/44/46/47/480/483/484 Model 206.003/004/005/041/042/043/141/203/204/205
BE42.10-P-1001-05V	Brake lining thickness	Brake pad, new	mm	10	13
		Pad backing plate	mm	6	6
		Wear limit	mm	2	2
		Brake wear indicator activated (if installed)	mm	2...3	2...3

CHECK VALUES FOR REAR BRAKE PAD

Number	Designation			Model 205.00/01/03/04/05/06/07/080/083/084/14/17/18/20/21/23/24/25/26/27/280/283/284/30/31/34/36/37/380/383/384/40/41/44/46/47/480/483/484	Model 205.086/087/286/287/386/387/486/487 Model 206.004/005/006/007/016/042/043/046/047/141/142/143/204/205/206/214/216/242/243/245/246/247 except code ME10 (Hybrid vehicle (plug-in, PHEV))
BE42.10-P-1001-15S	Brake lining thickness	Brake pad, new	mm	11, 0	11, 0
		Pad backing plate	mm	4, 5	6, 0
		Wear limit	mm	2	2
		Brake wear indicator activated (if installed)	mm	2...3	2...3
