Align Windshield In Body Opening - AR67.10-P-1000-04G

Model 117, 156, 169, 170, 171, 172.4, 176, 205, 207, 209, 218, 230.4, 231, 242, 245.2, 246, 253, 293

Model 212

except code Z04 (Light armoring)

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

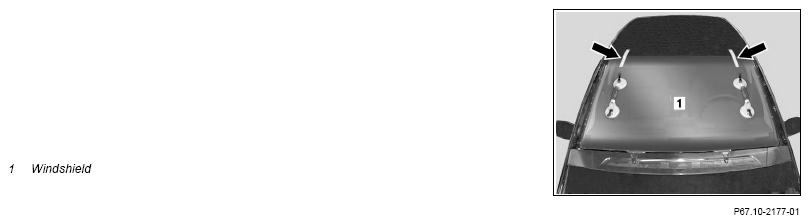

1. Place windshield (1) down on windshield rubber spacers on body flange.
2. Center windshield (1) in body opening.
3. Adjust gap dimension (A) with feeler gauge.
4. Glue on strips of adhesive tape (arrows).
5. Cut through adhesive strips (arrows) at top of windshield (1),
6. Remove windshield (1) from vehicle.

   Shown on model 169.0
