Remove, Install Net On Wind Deflector - AR77.25-P-1004LWR

Model 205.4

with code 288 (Draft stop for convertible)

Model 217.4

Model 238.4

with code 288 (Draft stop for convertible)

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch on ignition	The ignition must remain switched on during the entire repair procedure.

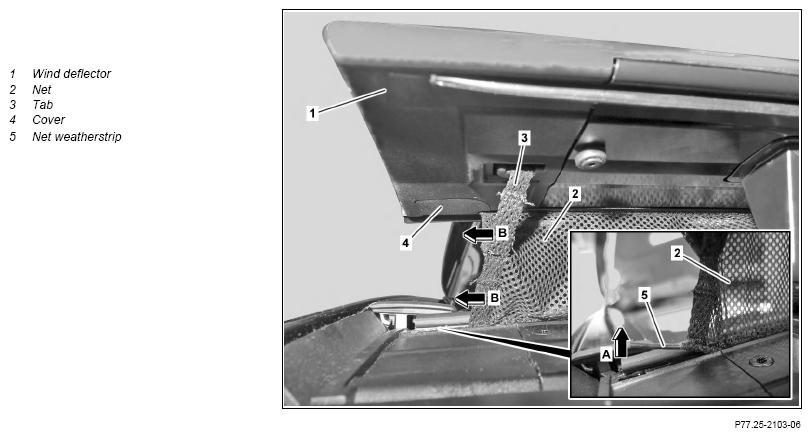

2	Move out wind deflector (1) with soft top closed	The wind deflector (1) is moved to the service position.
3	Unhook tab (3) on both sides
4	Remove adhesive strip from cover (4)	If installed. Renew adhesive strips.
5	Unclip cover (4) on left side
6	Unclip lower net weatherstrip (5) on left side (arrow A)

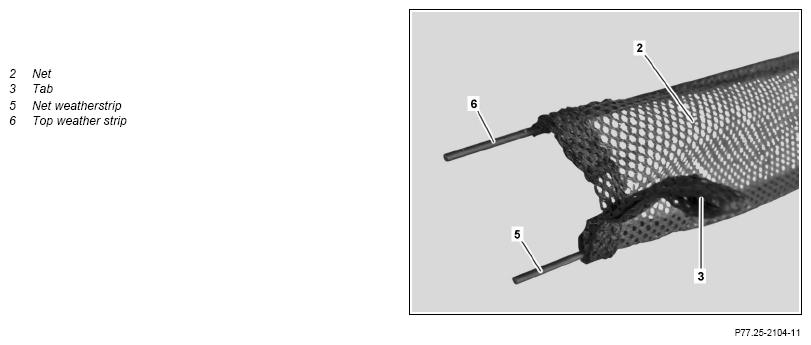

7	Uniformly pull net (2) out together of lower net weatherstrip (5) and upper net weatherstrip (6) to left (arrows B)	The lower net weatherstrip (5) is shorter than the upper net weatherstrip (6). The left and right tab (3) must point toward rear.
	Clean
8	Clean guides for lower net weatherstrip (5) and upper net weather strip (6)
9	Install in the reverse order
