Remove/Install Trunk Lid Cover - AR68.30-P-8151LWR

Model 205.4, 238.4

Shown on model 205.4 up to model year 2020

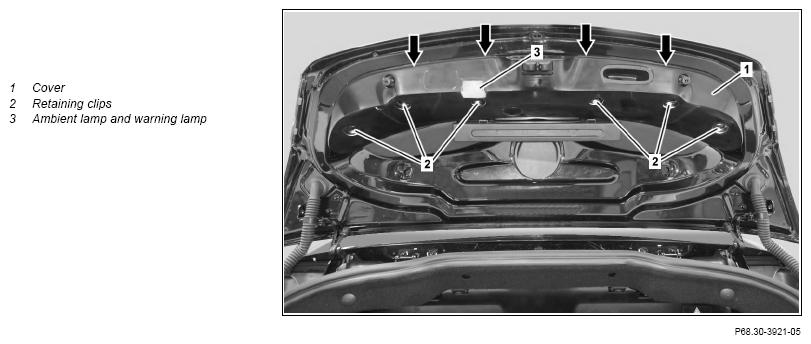

Fig 1: Trunk Lid Cover Component Location - Model 205.4 (Shown Up To Model Year 2020)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove retaining clips (2).	Clip remover	Fig 2
2	Unclip trim (1) at trunk lid (arrows).
3	Release and disconnect electrical connector of ambient lamp and warning lamp (3).	Model 205.4 up to model year 2020 Model 238.4
4	Release and disconnect electrical connector of trunk separator switch (S138/3).	Model 238.4
5	Remove trim (1).
6	Install in the reverse order.

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
