Remove/Install Trunk Floor Front Section - AR68.80-P-0005LWW

Model 205.0 (except 205.013/047/053/054), 205.1 (except 205.147), 205.3, 213.0 (except 213.016/050/053/054), 213.1 (except 213.153/155)

Shown on model 205.0

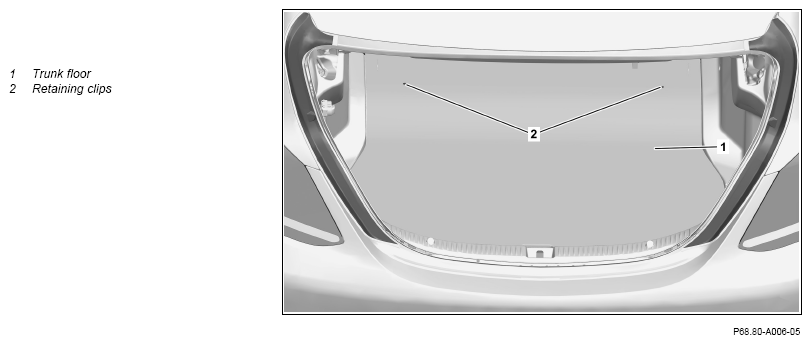

Fig 1: Trunk Floor Front Section Component Location - Model 205.0 Except 205.013/047/053/054, 205.1 Except 205.147, 205.3 (Shown On Model 205.0)

Courtesy of MERCEDES-BENZ USA

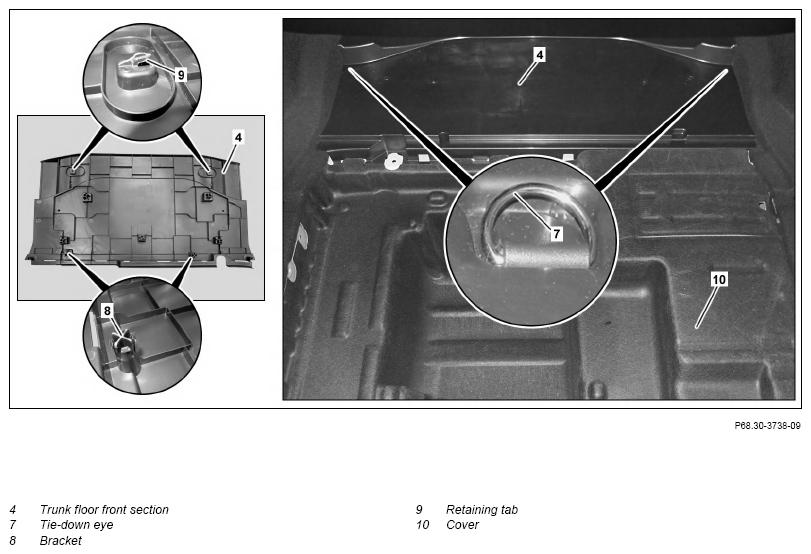

Shown on model 205.0 with code 287 (Folding seat backrests in rear)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove retaining clips (2) and trunk floor (1).	Dismantling tool	Fig 2
2	Remove trim (10).
3.1	Remove tie-down eyes (7).	Model 205.0 (except 205.013/047/053/054), 205.3, 213.0 (except 213.016/050/053/054) with code 287 (Folding seat backrests in rear passenger compartment) Model 205.0 (except 205.013/047/053/054), 205.3, 213.0 (except 213.016/050/053/054) with code 30P (Stowage Space package) Model 213.0 (except 213.016/050/053/054) with code 287 (Folding seat backrests in rear passenger compartment) Model 213.0 (except 213.016/050/053/054) with code 30P (Stowage Space package) Bolt, cargo retainers/tie-down eye to body	*BA68.50-P-1001-03J
		Model 205.0 (except 205.013/047/053/054), 205.3 with code 287 (Folding seat backrests in rear passenger compartment) Model 205.0 (except 205.013/047/053/054), 205.3 with code 30P (Stowage Space package) Screw/bolt for tie-down eye	*BA68.50-P-1001-03I
3.2	Remove expansion rivet at trunk floor front section (4).	Model 205.0 (except 205.013/047/053/054), 205.3, 213.0 (except 213.016/050/053/054) except code 287 (Folding seat backrests in rear passenger compartment) Model 205.1 (except 205.147), 213.1 (except 213.153/155) Expansion rivets are installed instead of tie-down eyes (7). Dismantling tool	Fig 2
4	Unclip trunk floor front section (4) and remove towards rear.	Ensure that retaining tabs (9) and brackets (8) are seated correctly.
5	Install in the reverse order.
