Remove/Install Trim Piece On Roof Frame At Front - AR88.85-P-0001LWR

Model 205.4

except code 288 (Draft stop for convertible)

Model 238.4

except code 288 (Draft stop for convertible)

Shown on model 205.4

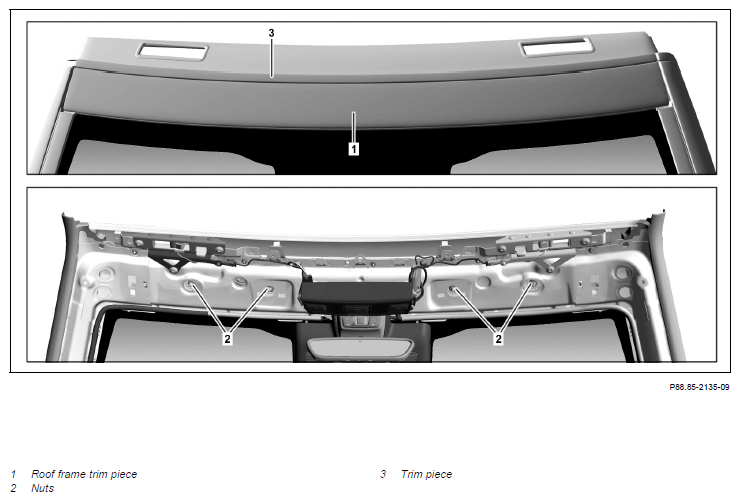

Fig 1: Front Roof Frame Trim Piece Component Location - Model 205.4 Except Code 288

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove A-pillar paneling		AR68.30-P-4050LW
2	Unscrew nuts (2) on roof frame trim piece (1)
3	Remove roof frame trim piece (1)
	Install
4	Glue trim piece (3) to new roof frame trim piece (1)	When replacing roof frame trim piece (1).
5	Check seals o bolt on roof frame trim piece (1)	When reusing removed roof frame trim piece (1). If damaged: ↓ Replace seals.
6	Position roof frame trim piece (1), center and tighten nuts (2)	Ensure that seal is seated correctly between roof frame trim piece (1) and windshield.
7	Install A-pillar paneling		AR68.30-P-4050LW
