Adjust Engine Hood - AR88.40-P-3020LW

Model 205

Model 213, 238

Model 253

Model 293

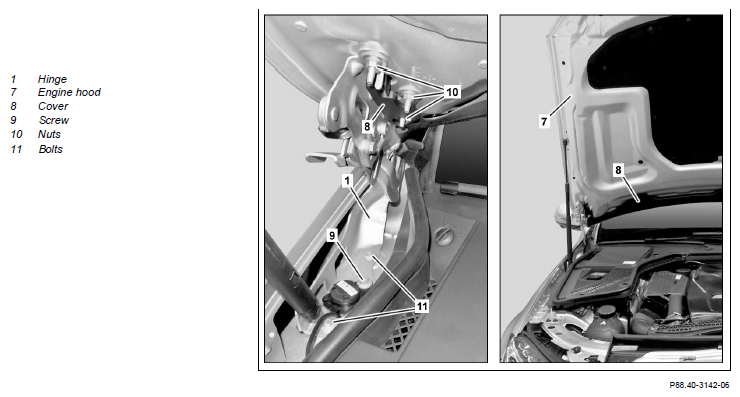

Shown on right side of vehicle on model 205

G14819240Courtesy of MERCEDES-BENZ USA

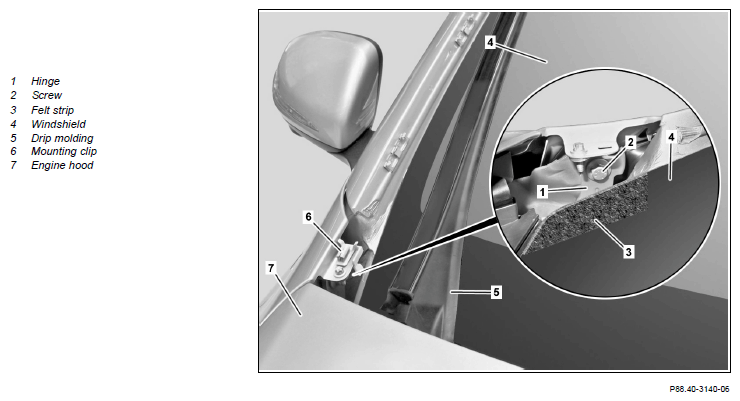

Shown on right side of vehicle on model 205

G14819241Courtesy of MERCEDES-BENZ USA

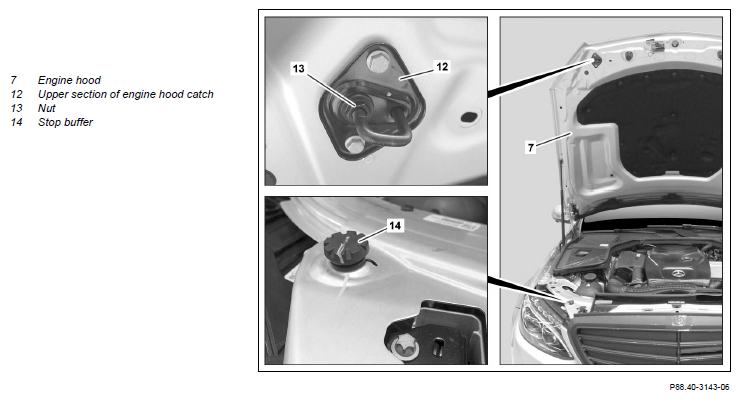

Shown on right side of vehicle on model 205

G14819242Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
INSPECT Check
1 Check adjustment of hood (7). Model 213 AR60.00-P-0700-01LWE
    Model 205, 253, 293 AR60.00-P-0700-01LW
    Model 238 AR60.00-P-0700-01LWO
    Model 205Engine hood to fender *BE60.00-P-1001-01BB
    Model 205Engine hood to headlamp *BE60.00-P-1002-01BB
    Model 205Engine hood to radiator trim/soft nose *BE60.00-P-1003-01BB
    Model 205Protrusion of radiator trim/soft nose engine hood *BE60.00-P-1004-01BB
    Model 205Engine hood to bumper *BE60.00-P-1005-01BB
    Model 213Engine hood to fender *BE60.00-P-1001-01GA
    Model 213Engine hood to headlamp *BE60.00-P-1002-01GA
    Model 213Engine hood to radiator trim/soft nose *BE60.00-P-1003-01GA
    Model 213Protrusion of radiator trim/soft nose engine hood *BE60.00-P-1004-01GA
    Model 213Engine hood to bumper *BE60.00-P-1005-01GA
    Model 238Engine hood to fender *BE60.00-P-1001-01HA
    Model 238Engine hood to headlamp *BE60.00-P-1002-01HA
    Model 238Engine hood to radiator trim/soft nose *BE60.00-P-1003-01HA
    Model 238Protrusion of radiator trim/soft nose engine hood *BE60.00-P-1004-01HA
    Model 238Engine hood to bumper *BE60.00-P-1005-01HA
    Model 253Engine hood to fender *BE60.00-P-1001-01FA
    Model 293Engine hood to fender *BE60.00-P-1001-01OA
    Model 253Engine hood to headlamp *BE60.00-P-1002-01FA
    Model 293Engine hood to headlamp *BE60.00-P-1002-01OA
    Model 253Engine hood to bumper *BE60.00-P-1003-01FA
    Model 293Engine hood to bumper *BE60.00-P-1003-01OA
    Model 293Hood to continuous reflector strip *BE60.00-P-1006-01OA
    Model 293Hood to radiator grille *BE60.00-P-1007-01OA
    SPECIAL TOOL Feeler gauge Fig 1
  Rough adjustment in lateral and longitudinal direction
2 Loosen left and right screw (9). Model 205
Model 213, 238
Model 253
3 Loosen screws (11) on left and right hinge (1) and adjust hood (7) in the transverse and longitudinal direction. Model 205Engine hood to fender *BE60.00-P-1001-01BB
    Model 205Engine hood to headlamp *BE60.00-P-1002-01BB
    Model 205Engine hood to radiator trim/soft nose *BE60.00-P-1003-01BB
    Model 205Engine hood to bumper *BE60.00-P-1005-01BB
    Model 213Engine hood to fender *BE60.00-P-1001-01GA
    Model 213Engine hood to headlamp *BE60.00-P-1002-01GA
    Model 213Engine hood to radiator trim/soft nose *BE60.00-P-1003-01GA
    Model 213Engine hood to bumper *BE60.00-P-1005-01GA
    Model 238Engine hood to fender *BE60.00-P-1001-01HA
    Model 238Engine hood to headlamp *BE60.00-P-1002-01HA
    Model 238Engine hood to radiator trim/soft nose *BE60.00-P-1003-01HA
    Model 238Engine hood to bumper *BE60.00-P-1005-01HA
    Model 253Engine hood to fender *BE60.00-P-1001-01FA
    Model 293Engine hood to fender *BE60.00-P-1001-01OA
    Model 253Engine hood to headlamp *BE60.00-P-1002-01FA
    Model 293Engine hood to headlamp *BE60.00-P-1002-01OA
    Model 253Engine hood to bumper *BE60.00-P-1003-01FA
    Model 293Engine hood to bumper *BE60.00-P-1003-01OA
    Model 293Hood to continuous reflector strip *BE60.00-P-1006-01OA
    Model 293Hood to radiator grille *BE60.00-P-1007-01OA
    SPECIAL TOOL Feeler gauge Fig 1
4 Tighten screws (11) on left and right hinge (1). TORQUE SPECIFICATION Attachment, hinge to body *BA88.40-P-1001-01N
5 Tighten left and right screw (9). j/ Model 205
Model 213, 238
Model 253
    TORQUE SPECIFICATION Screw/nut, hood lifter to body *BA91.60-P-1002-02A
  Fine adjustment in lateral and longitudinal direction
6 Release cover (8) in the area of the left and right hinge (1). Model 205
7 Loosen nuts (10) on left and right hinge (1) and adjust and hood (7) in the transverse and longitudinal direction. Model 205Engine hood to fender *BE60.00-P-1001-01BB
    Model 205Engine hood to headlamp *BE60.00-P-1002-01BB
    Model 205Engine hood to radiator trim/soft nose *BE60.00-P-1003-01BB
    Model 205Engine hood to bumper *BE60.00-P-1005-01BB
    Model 213Engine hood to fender *BE60.00-P-1001-01GA
    Model 213Engine hood to headlamp *BE60.00-P-1002-01GA
    Model 213Engine hood to radiator trim/soft nose *BE60.00-P-1003-01GA
    Model 213Engine hood to bumper *BE60.00-P-1005-01GA
    Model 238.3Engine hood to fender *BE60.00-P-1001-01HA
    Model 238.3Engine hood to headlamp *BE60.00-P-1002-01HA
    Model 238.3Engine hood to radiator trim/soft nose *BE60.00-P-1003-01HA
    Model 238.3Engine hood to bumper *BE60.00-P-1005-01HA
    Model 253Engine hood to fender *BE60.00-P-1001-01FA
    Model 293Engine hood to fender *BE60.00-P-1001-01OA
    Model 253Engine hood to headlamp *BE60.00-P-1002-01FA
    Model 293Engine hood to headlamp *BE60.00-P-1002-01OA
    Model 253Engine hood to bumper *BE60.00-P-1003-01FA
    Model 293Engine hood to bumper *BE60.00-P-1003-01OA
    Model 293Hood to continuous reflector strip *BE60.00-P-1006-01OA
    Model 293Hood to radiator grille *BE60.00-P-1007-01OA
    SPECIAL TOOL Feeler gauge Fig 1
8 Tighten nuts (10) on left and right hinge (1) TORQUE SPECIFICATION Attachment, hinge to engine hood *BA88.40-P-1002-01N
9 Fasten cover (8) in area of left and right hinge (1). Model 205
  Adjust height at rear
10 Mask off windshield (4) in area of the screw (2 with a felt strip (3). Felt strip *BR00.45-Z-1150-02A
11.1 Release drip rail (5) in the area of the windshield (4). Model 205, 213, 238
11.2 Remove drip rail (5). Model 253
Model 293
      AR88.80-P-4000LW
12 Remove retaining clip (6). Model 205
13 Loosen screws (2) on the left or right hinge (1) and adjust height of engine hood (7).
14 Tighten screw (2) on the left and right hinge (1). TORQUE SPECIFICATION Attachment, hinge upper part to hinge lower part *BA88.40-P-1008-01N
15 1 Install retaining clip (6). Model 205
16.1 Fasten drip rail (5) in area of windshield (4). Model 205, 213, 238
16.2 Install drip rail (5). Model 253
Model 293
      AR88.80-P-4000LW
17 Remove felt strip (3) from the windshield (4). Adjust height at front
18 Completely screw in left and right stop buffer (14).
19 Adjust height of engine hood (7) by turning the nut (13) on the left and right hood catch upper
part (12).		 Model 205Engine hood to headlamp *BE60.00-P-1002-01BB
    Model 205Protrusion of radiator trim/soft nose engine hood *BE60.00-P-1004-01BB
    Model 205Engine hood to bumper *BE60.00-P-1005-01BB
    Model 213Engine hood to headlamp *BE60.00-P-1002-01GA
    Model 213Protrusion of radiator trim/soft nose engine hood *BE60.00-P-1004-01GA
    Model 213Engine hood to bumper *BE60.00-P-1005-01GA
    Model 238Engine hood to headlamp *BE60.00-P-1002-01HA
    Model 238Engine hood to radiator trim/soft nose *BE60.00-P-1003-01HA
    Model 238Protrusion of radiator trim/soft nose engine hood *BE60.00-P-1004-01HA
    Model 238Engine hood to bumper *BE60.00-P-1005-01HA
    Model 253Engine hood to headlamp *BE60.00-P-1002-01FA
    Model 293Engine hood to headlamp *BE60.00-P-1002-01OA
    Model 253Engine hood to bumper *BE60.00-P-1003-01FA
    Model 293Engine hood to bumper *BE60.00-P-1003-01OA
    Model 293Hood to continuous reflector strip *BE60.00-P-1006-01OA
    Model 293Hood to radiator grille *BE60.00-P-1007-01OA
    SPECIAL TOOL Feeler gauge Fig 1
20 Mark left and right stop buffer (14) in contact area of engine hood (7) with chalk.
21 Remove stop buffers (14) until engine hood (7 makes contact with stop buffers (14) when closed. IMPORTANT A chalk mark must be visible on the engine hood (7).
22 Remove stop buffers (14) by a quarter revolution. IMPORTANT To avoid vibrations, the hood (7) is subjected to slight tension.
23 Repair paint damage in the area around the hinges (1) and the hood catch lower sections (12) with primer filler and touch-up paint pen. If paint damage occurs when adjusting.
    IMPORTANT Use only primer filler and paints approved by Daimler AG:
https://xentryportal.i.daimler.com
24 Protect area around the hinges (1) and hood catch lower sections (12) against corrosion. Cavity preservation (free of solvents), 1 liter *BR00.45-Z-1003-05A
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.0/1 Model 205.2
BE60.00-P-1001-01BB Engine hood to fender Dimension "A" mm 3 (±0, 5) 3 (±0, 5)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.3 Model 205.4
BE60.00-P-1001-01BB Engine hood to fender Dimension "A" mm 3 (±0, 5) 3 (±0, 5)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.3 Model 253.1/9
BE60.00-P-1001-01FA Engine hood to fender Dimension "A" mm 3, 0 (±0, 5) 3, 0 (±0, 5)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1001-01GA Engine hood to fender Dimension "A" mm 3 (±0, 5) 3 (±0, 5)
For picture, see AR60.00-P-0700-01LWE AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 238.3 Model 238.4
BE60.00-P-1001-01HA Engine hood to fender Dimension "A" mm 3 (±0, 5) 3 (±0, 5)
For picture, see AR60.00-P-0700-01LWO AR60.00-P-0700-01LWO
GAP DIMENSIONS

Number Designation Model 293
BE60.00-P-1001-01OA Engine hood to fender Dimension "A" mm 4 (±0, 5)
For picture, see -
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.0/1 Model 205.2
BE60.00-P-1002-01BB Engine hood to headlamp Dimension "B" mm 5, 5 (±1, 5) 5, 5 (±1, 5)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.3 Model 205.4
BE60.00-P-1002-01BB Engine hood to headlamp Dimension "B" mm 5, 5 (±1, 5) 5, 5 (±1, 5)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.3 Model 253.1/9
BE60.00-P-1002-01FA Engine hood to headlamp Dimension "B" mm 14, 5 (+2/-1, 5) 14, 5 (+2/-1, 5)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1002-01GA Engine hood to headlamp Dimension "B" mm 5, 2 (±1, 5) 5, 2 (±1, 5)
For picture, see AR60.00-P-0700-01LWE AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 238.3 Model 238.4
BE60.00-P-1002-01HA Engine hood to headlamp Dimension "B" mm 7, 5 (±1, 5) 7, 5 (±1, 5)
For picture, see AR60.00-P-0700-01LWO AR60.00-P-0700-01LWO
GAP DIMENSIONS

Number Designation Model 293
BE60.00-P-1002-01OA Engine hood to headlamp Dimension "B1" mm 6 (±1, 5)
For picture, see -
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.0/1 Model 205.2
BE60.00-P-1003-01BB Engine hood to radiator trim/soft nose Dimension "C" mm 3, 5 (±1) 3, 5 (±1)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.3 Model 205.4
BE60.00-P-1003-01BB Engine hood to radiator trim/soft nose Dimension "C" mm 3, 5 (±1) 3, 5 (±1)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.3 Model 253.1/9
BE60.00-P-1003-01FA Engine hood to bumper Dimension "D" mm 4, 5, 5) 4, 5, 5)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1003-01GA Engine hood to radiator trim/soft nose Dimension "C" mm 3, 6 (±0, 8) 3, 6 (±0, 8)
For picture, see AR60.00-P-0700-01LWE AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 238.3 Model 238.4
BE60.00-P-1003-01HA Engine hood to radiator trim/soft nose Dimension "C" mm 3, 5 (±0, 5) 3, 5 (±0, 5)
For picture, see AR60.00-P-0700-01LWO AR60.00-P-0700-01LWO
GAP DIMENSIONS

Number Designation Model 293
BE60.00-P-1003-01OA Engine hood to bumper Dimension "B2" mm 2 (±1)
For picture, see -
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.0/1 Model 205.2
BE60.00-P-1004-01BB Protrusion of radiator trim/soft nose, engine hood Dimension "C" mm 1 (±1) 1 (±1)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.3 Model 205.4
BE60.00-P-1004-01BB Protrusion of radiator trim/soft nose, engine hood Dimension "C" mm 1 (±1) 1 (±1)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1004-01GA Protrusion of radiator trim/soft nose, engine hood Dimension "C" mm 1 (±1) 1 (±1)
For picture, see AR60.00-P-0700-01LWE AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 238.3 Model 238.4
BE60.00-P-1004-01HA Protrusion of radiator trim/soft nose, engine hood Dimension "C1" mm 1, 5 (±1) 1, 5 (±1)
For picture, see AR60.00-P-0700-01LWO AR60.00-P-0700-01LWO
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.0/1 Model 205.2
BE60.00-P-1005-01BB Engine hood to bumper Dimension "D" mm 4 (±1) 4 (±1)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.3 Model 205.4
BE60.00-P-1005-01BB Engine hood to bumper Dimension "D" mm 4 (±1) 4 (±1)
For picture, see AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1005-01GA Engine hood to bumper Dimension "D" mm 3, 8 (±1) 3, 8 (±1)
For picture, see AR60.00-P-0700-01LWE AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 238.3 Model 238.4
BE60.00-P-1005-01HA Engine hood to bumper Dimension "D" mm 4, 5 (±1) 4, 5 (±1)
For picture, see AR60.00-P-0700-01LWO AR60.00-P-0700-01LWO
GAP DIMENSIONS

Number Designation Model 293
BE60.00-P-1006-01OA Hood to continuous reflector strip Dimension "C" mm 6 (±1, 5)
For picture, see -
GAP DIMENSIONS

Number Designation Model 293
BE60.00-P-1007-01OA Hood to radiator grille Dimension "D" mm 7 (±1, 5)
For picture, see -
ENGINE HOOD

Number Designation Model 205 Model 213
BA88.40-P-1001-01N Attachment, hinge to body Nm 10 10
ENGINE HOOD

Number Designation Model 238 Model 253
BA88.40-P-1001-01N Attachment, hinge to body Nm 10 10
ENGINE HOOD

Number Designation Model 293
BA88.40-P-1001-01N Attachment, hinge to body Nm 10
ENGINE HOOD

Number Designation Model 205 Model 213
BA88.40-P-1002-01N Attachment, hinge to engine hood Nm 10 10
ENGINE HOOD

Number Designation Model 238 Model 253
BA88.40-P-1002-01N Attachment, hinge to engine hood Nm 10 10
ENGINE HOOD

Number Designation Model 293
BA88.40-P-1002-01N Attachment, hinge to engine hood Nm 10
ENGINE HOOD

Number Designation Model 205 Model 213
BA88.40-P-1008-01N Attachment, hinge upper part to hinge lower part Nm 23 23
ENGINE HOOD

Number Designation Model 238 Model 253
BA88.40-P-1008-01N Attachment, hinge upper part to hinge lower part Nm 23 23
ENGINE HOOD

Number Designation Model 293
BA88.40-P-1008-01N Attachment, hinge upper part to hinge lower part Nm 23
ENGINE HOOD LIFTER

Number Designation Model 205 Model 213
BA91.60-P-1002-02A Screw/nut, hood lifter to body Nm 10 10
ENGINE HOOD LIFTER

Number Designation Model 238 Model 253
BA91.60-P-1002-02A Screw/nut, hood lifter to body Nm 10 10
Fig 1: Identifying Feeler Gauge (129 589 03 21 00)
G07469060Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-05A Cavity preservation (free of solvents), 1 liter A 000 986 72 70 10
BR00.45-Z-1150-02A Felt strip   A 000 983 89 10
scientia non olet · About LEMON Manuals
