Wiring Diagram of Driver-Side Seat Control Module - PE91.29-P-2104-97FBB
Model 205
as of model year 2019
with code 275 (Driver's seat, electrically adjustable with memory function)
Control unit N32/1
| Code: | Designation: | Position: |
|---|---|---|

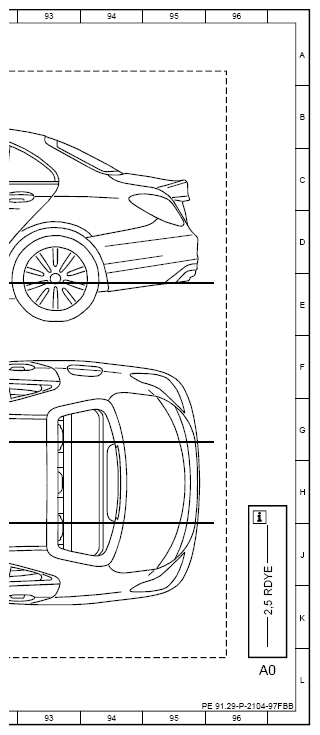

| A0 | Use of wiring diagrams | 96L |
| CAN B | Interior CAN | 10K |
| Code 275 | Memory package | 12C |
| Code 275 | Memory package | 30E |
| Code 275 | Memory package | 34E |
| Code 275 | Memory package | 54E |

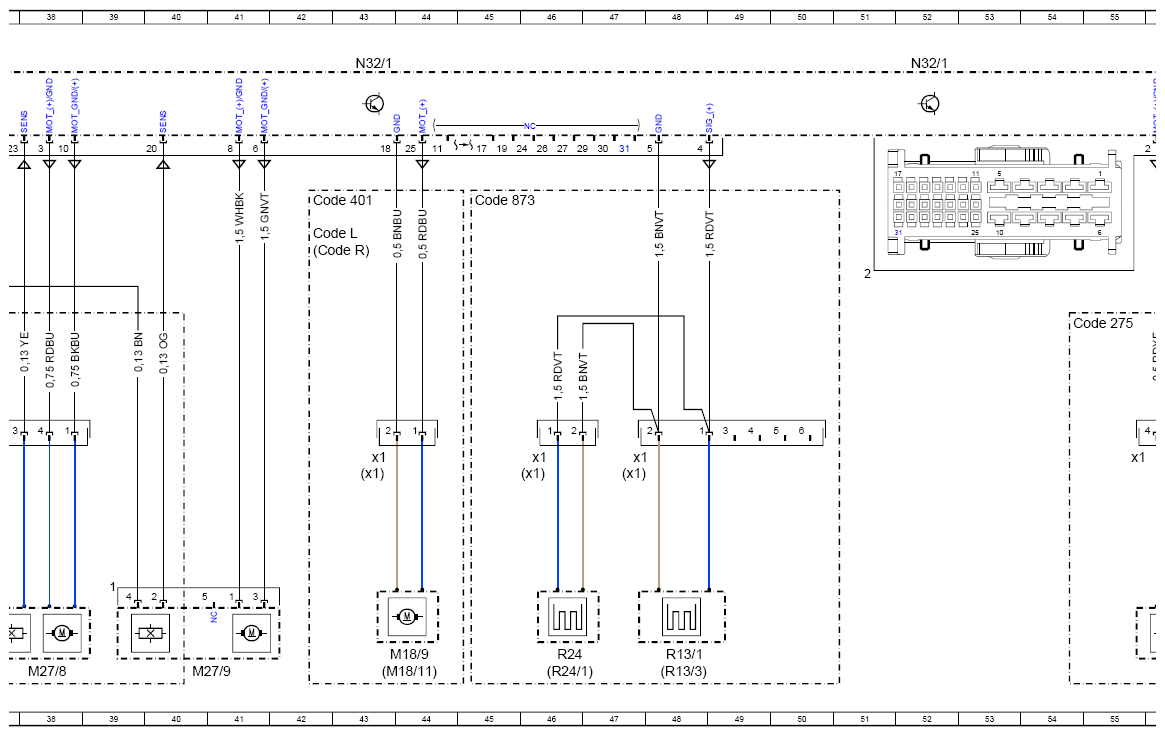

| Code 401 | Seat climate control for driver and front passenger | 42C |
| Code 401 | Seat climate control for driver and front passenger | 61C |
| Code 873 | Seat heater for driver and front passenger | 45C |
| Code 873 | Seat heater for driver and front passenger | 63C |
| Code FA | CABRIOLET | 67D |
| Code FC | COUPE | 67C |
| Code L | LEFT-HAND DRIVE | 42D |
| Code L | LEFT-HAND DRIVE | 84J |
| Code L | LEFT-HAND DRIVE | 61D |
| Code R | RIGHT-HAND DRIVE | 42D |
| Code R | RIGHT-HAND DRIVE | 84G |
| Code R | RIGHT-HAND DRIVE | 61D |

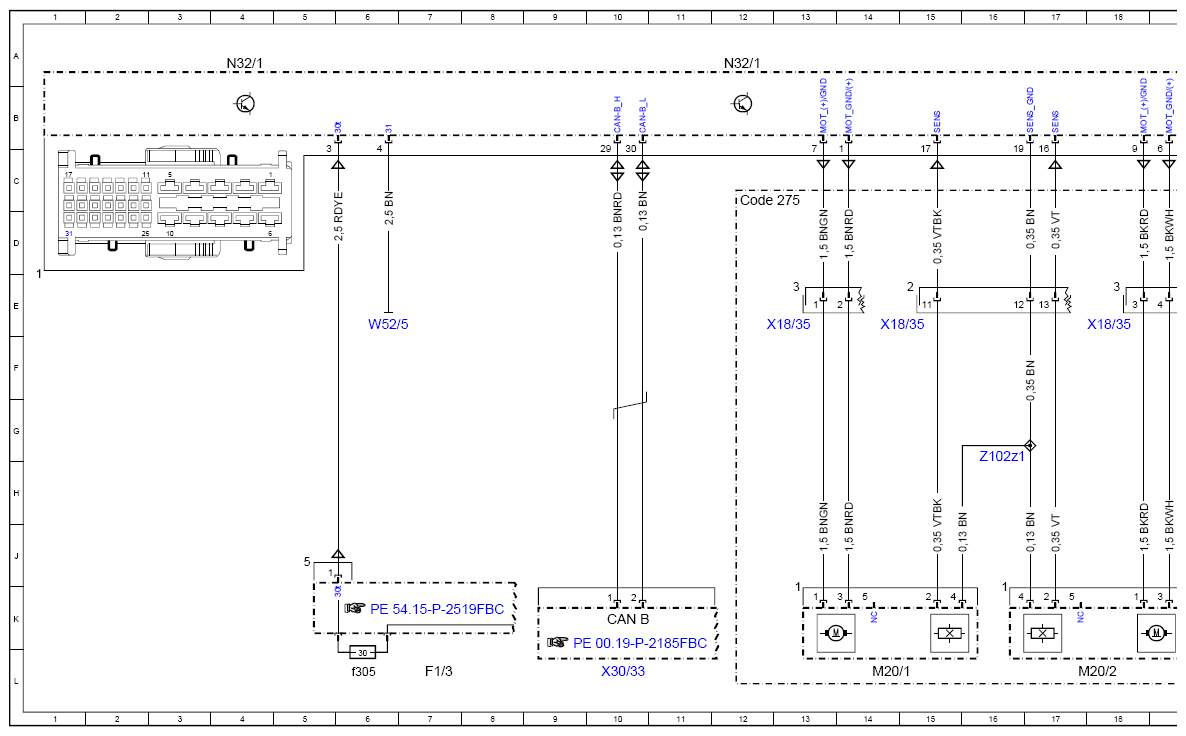

| F1/3 | Passenger-side A-pillar fuse box | 7L |
| F1/3f305 | Fuse 305 | 6L |
| M18/10 | Left front backrest seat ventilation motors | 62L |
| M18/10x1 | Left front backrest seat ventilation motor electrical connector | 62H |
| Ml 8/11 | Right front seat cushion seat ventilation motors | 44L |
| M18/11x1 | Right front seat cushion seat ventilation motor electrical connector | 43H |
| M18/12 | Right front backrest seat ventilation motors | 62L |
| M18/12x1 | Right front backrest seat ventilation motor electrical connector | 62H |
| M18/9 | Left front seat cushion seat ventilation motors | 44L |
| M18/9x1 | Left front seat cushion seat ventilation motor electrical connector | 43H |
| M20/1 | Steering column in/out adjustment motor | 14L |
| M20/2 | Steering column up/down adjustment motor | 18L |

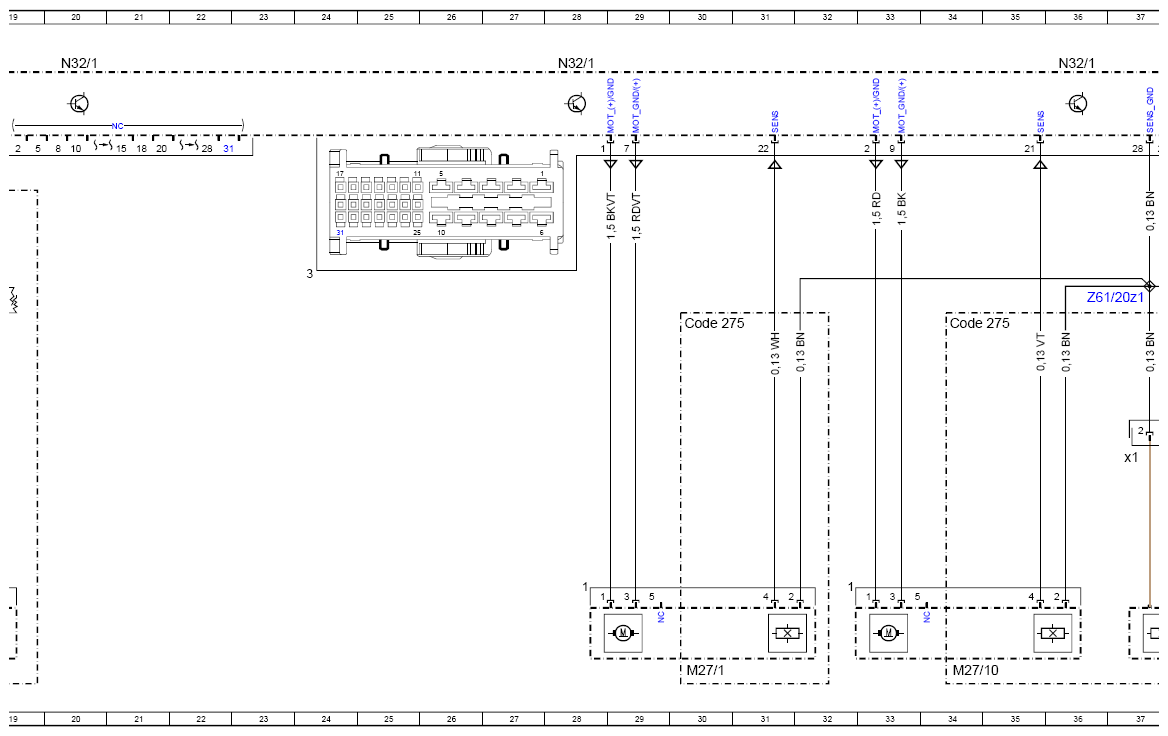

| M27/1 | Driver seat fore/aft adjustment motor | 30L |
| M27/10 | Driver seat height adjustment motor | 34L |

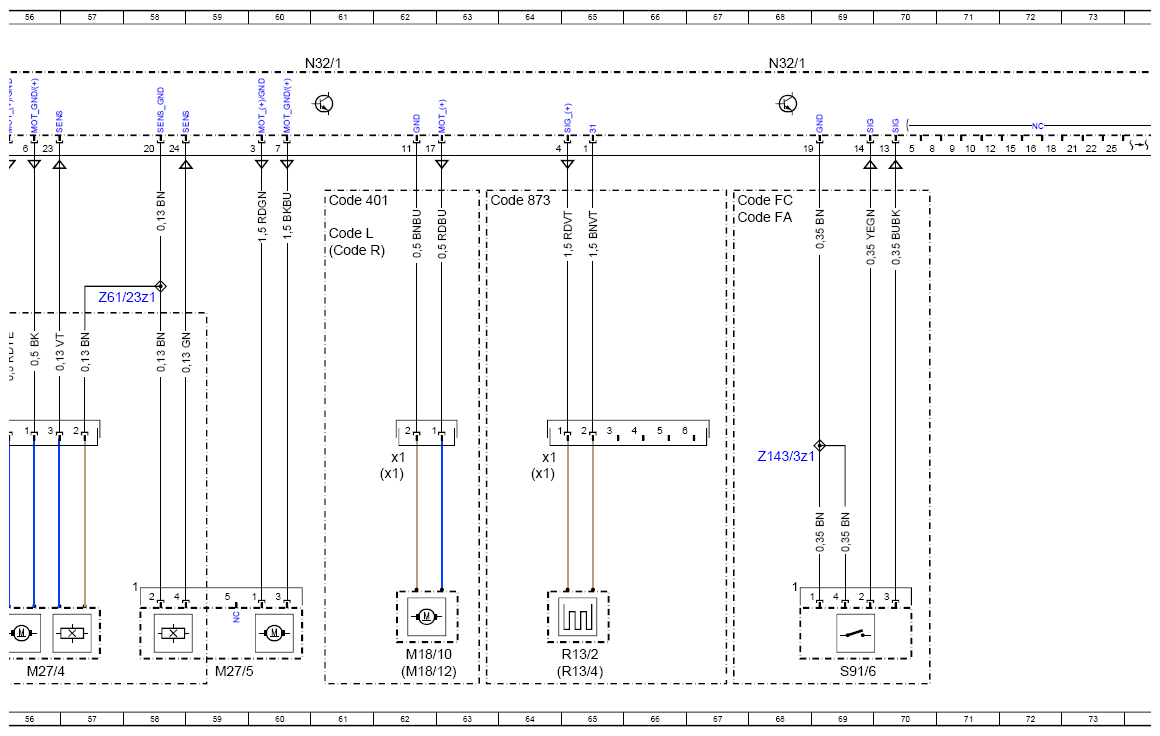

| M27/4 | Driver seat head restraint adjustment motor | 56L |
| M27/4x1 | Head restraint adjustment motor electrical connector, driver seat | 55H |
| M27/5 | Driver seat backrest inclination adjustment motor | 59L |
| M27/8 | Seat cushion length adjustment motor, driver seat | 38L |
| M27/8x1 | Seat cushion length adjustment motor electrical connector, driver seat | 37H |
| M27/9 | Seat inclination adjustment motor, driver seat | 40L |

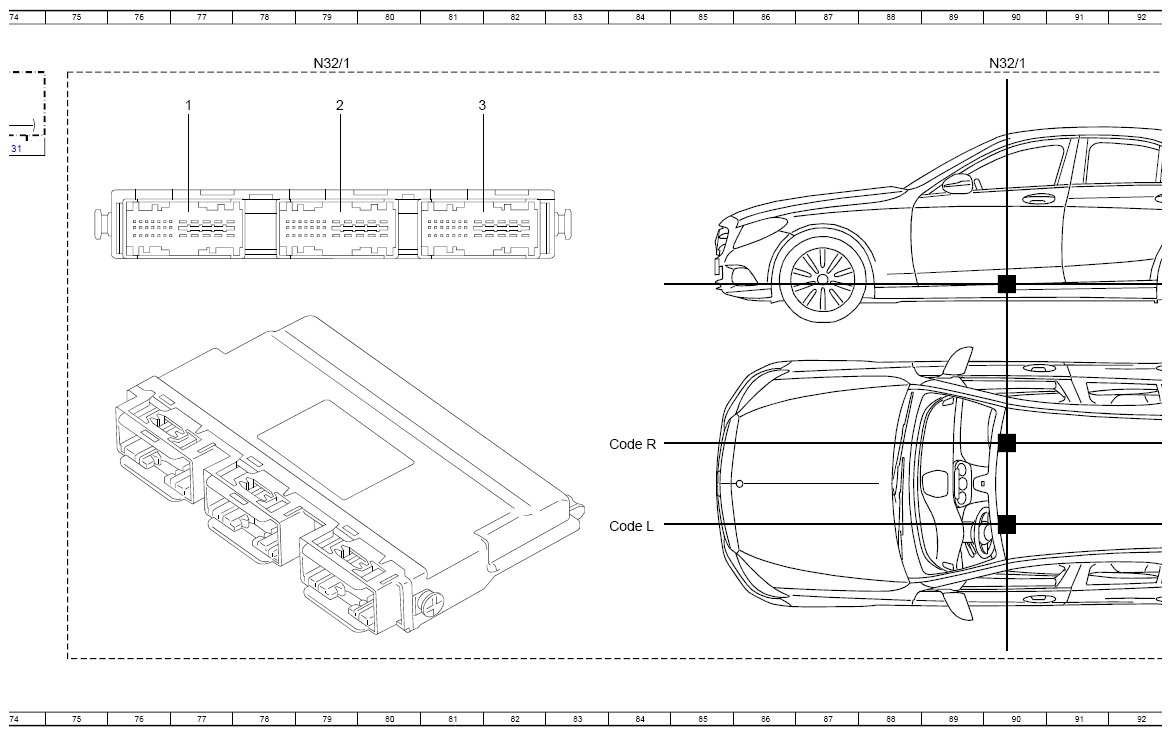

| N32/1 | Driver seat control unit | 4A |
| N32/1 | Driver seat control unit | 12A |
| N32/1 | Driver seat control unit | 20A |
| N32/1 | Driver seat control unit | 28A |
| N32/1 | Driver seat control unit | 36A |
| N32/1 | Driver seat control unit | 43A |
| N32/1 | Driver seat control unit | 79A |
| N32/1 | Driver seat control unit | 52A |
| N32/1 | Driver seat control unit | 61A |
| N32/1 | Driver seat control unit | 68A |
| N32/1 | Driver seat control unit | 90A |
| R13/1 | Left front seat cushion heater pad | 48L |
| R13/1x1 | Left front seat surface heater pad electrical connector | 47H |
| R13/2 | Left front seat backrest heater pad | 65L |
| R13/2x1 | Left front seat backrest heater pad electrical connector | 64H |
| R13/3 | Right front seat cushion heater pad | 48L |
| R13/3x1 | Right front seat cushion heater pad electrical connector | 47H |
| R13/4 | Right front seat backrest heater pad | 65L |
| R13/4x1 | Right front seat backrest heater pad electrical connector | 64H |
| R24 | Adjustable seat cushion length heater pad, left front seat | 46L |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 46L |
| R24/1x1 | Adjustable seat cushion length heater pad electrical connector, right front seat | 46H |
| R24x1 | Adjustable seat cushion length heater pad electrical connector, left front seat | 46H |
| S91/6 | Left backrest release/inclination microswitch | 69L |
| W52/5 | Left center longitudinal member ground point | 6E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 15E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 13E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 18E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 10L |
| Z102z1 | Steering column adjustment motor connector sleeve | 16G |
| Z143/3z1 | Left backrest release microswitch circuit 31 connector sleeve | 68G |
| Z61/20z1 | Left front seat height adjustment Hall sensor ground line connector sleeve | 37E |
| Z61/23z1 | Right rear seat heater ground line connector sleeve | 58E |
