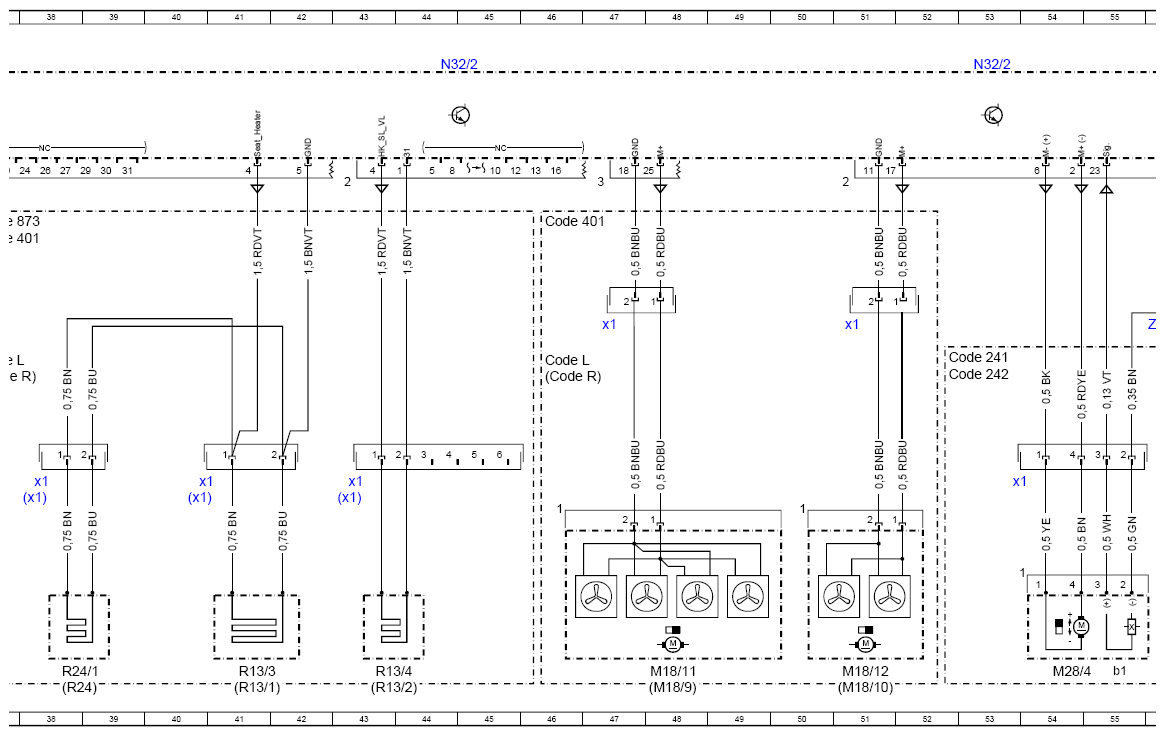

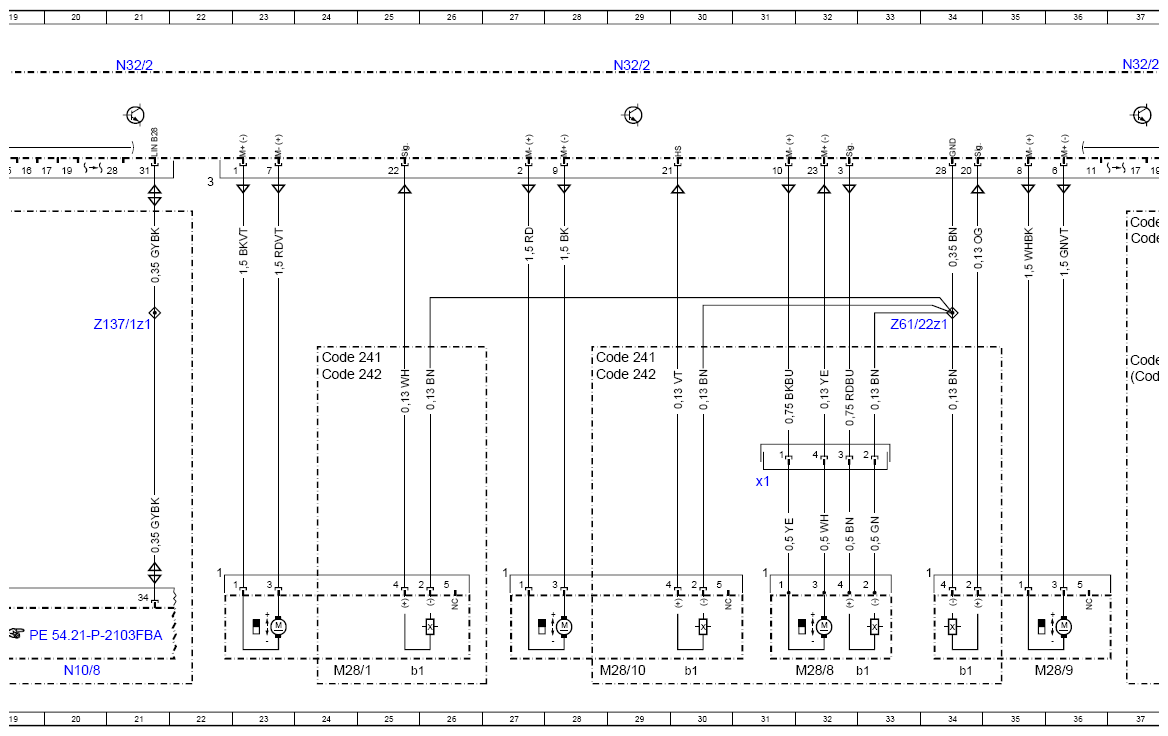

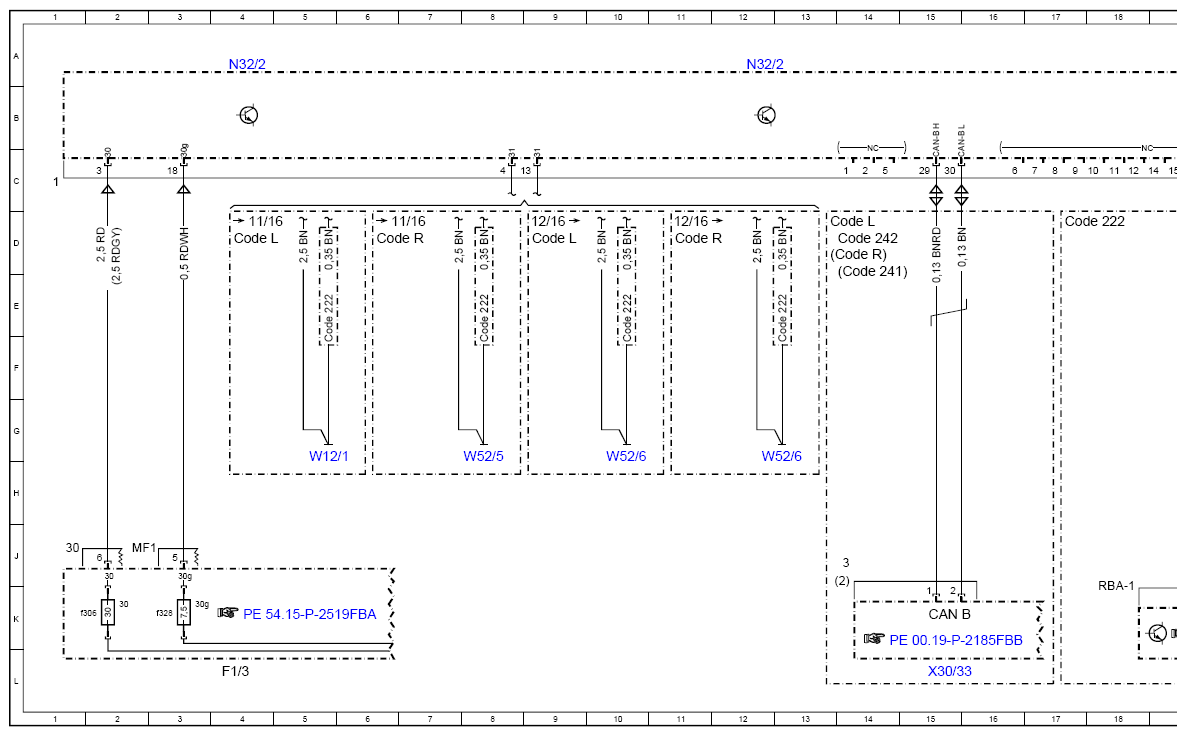

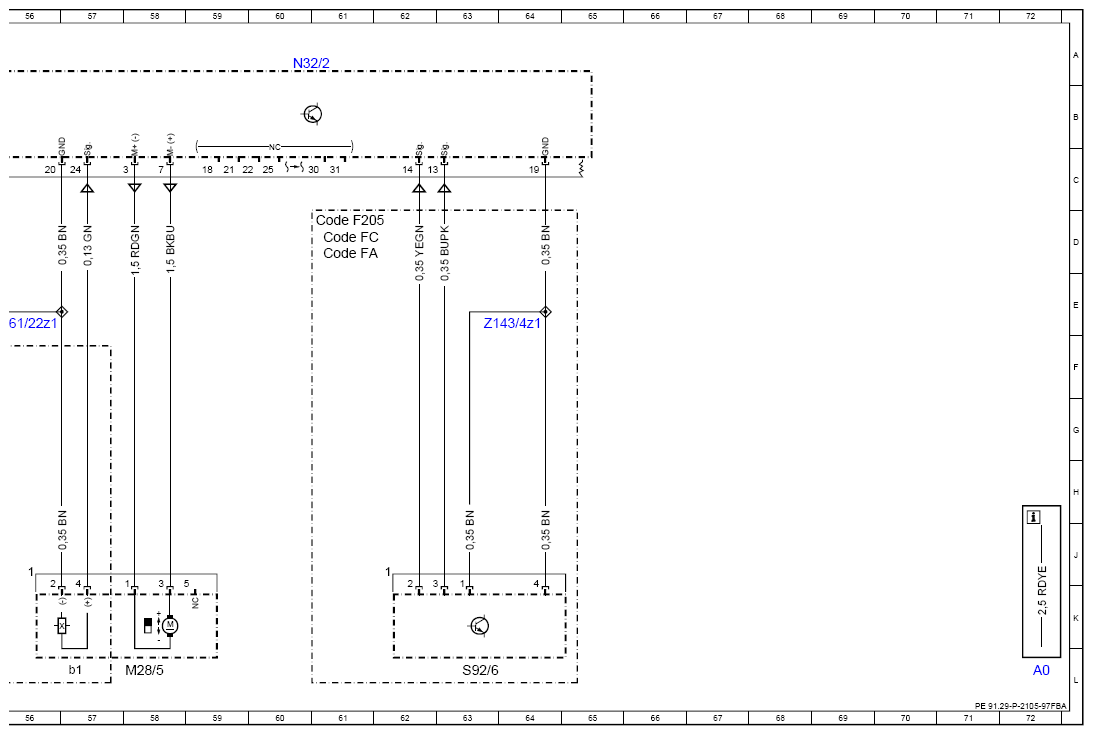

(Wiring Diagram Of Front Passenger-Side Seat Control Module - PE91.29-P-2105-97FBA)
Model 205
up to model year 2019
with code 222 (Electrically adjustable right front seat)
with code 242 (Front passenger seat, electrically adjustable with memory function)
Control unit N32/2
Model 253 (except 253.99)
up to model year 2020
with code 222 (Electrically adjustable right front seat)
with code 242 (Front passenger seat, electrically adjustable with memory function)
Control unit N32/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| CAN B | Interior CAN | 15K |
| Code 222 | Electrically adjustable right front seat | 13F |
| Code 222 | Electrically adjustable right front seat | 10F |
| Code 222 | Electrically adjustable right front seat | 8F |
| Code 222 | Electrically adjustable right front seat | 5F |
| Code 222 | Electrically adjustable right front seat | 17D |
| Code 241 | All-electric front passenger seat with memory (left) | 14E |
| Code 241 | All-electric front passenger seat with memory (left) | 24F |
| Code 241 | All-electric front passenger seat with memory (left) | 28F |
| Code 241 | All-electric front passenger seat with memory (left) | 52F |
| Code 242 | All-electric front passenger seat with memory (right) | 52F |
| Code 242 | All-electric front passenger seat with memory (right) | 28F |
| Code 242 | All-electric front passenger seat with memory (right) | 24F |
| Code 242 | All-electric front passenger seat with memory (right) | 14D |
| Code 401 | Seat climate control for driver and front passenger | 37D |
| Code 401 | Seat climate control for driver and front passenger | 46D |
| Code 873 | Seat heater for driver and front passenger | 37D |
| Code F205 | MODEL SERIES 205 | 61D |
| Code FA | CABRIOLET | 61D |
| Code FC | COUPE | 61D |
| Code L | LEFT-HAND DRIVE | 4D |
| Code L | LEFT-HAND DRIVE | 9D |
| Code L | LEFT-HAND DRIVE | 13D |
| Code L | LEFT-HAND DRIVE | 37F |
| Code L | LEFT-HAND DRIVE | 46F |
| Code R | RIGHT-HAND DRIVE | 46F |
| Code R | RIGHT-HAND DRIVE | 37F |
| Code R | RIGHT-HAND DRIVE | 13D |
| Code R | RIGHT-HAND DRIVE | 11D |
| Code R | RIGHT-HAND DRIVE | 6D |
| F1/3 | Passenger-side A-pillar fuse box | 4L |
| F1/3f306 | Fuse 306 | 1K |
| F1/3f328 | Fuse 328 | 3K |
| M18/10 | Left front backrest seat ventilation motors | 51L |
| Ml 8/11 | Right front seat cushion seat ventilation motors | 48L |
| M18/11x1 | Right front seat cushion seat ventilation motor electrical connector | 47E |
| M18/12 | Right front backrest seat ventilation motors | 51L |
| M18/12x1 | Right front backrest seat ventilation motor electrical connector | 51E |
| M18/9 | Left front seat cushion seat ventilation motors | 48L |
| M28/1 | Front passenger seat fore/aft adjustment motor | 24L |
| M28/10 | Front passenger seat height adjustment motor | 29L |
| M28/10b1 | Front passenger seat, seat height adjustment Hall sensor, | 30L |
| M28/1b1 | Seat fore/aft adjustment Hall sensor, front passenger seat | 25L |
| M28/4 | Front passenger seat head restraint adjustment motor | 54L |
| M28/4b1 | Head restraint adjustment Hall sensor, front passenger seat | 55L |
| M28/4x1 | Head restraint adjustment motor electrical connector, front passenger seat | 53H |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 58L |
| M28/5b1 | Backrest inclination Hall sensor, front passenger seat | 57L |
| M28/8 | Seat cushion length adjustment motor, front passenger seat | 32L |
| M28/8b1 | Seat cushion length adjustment Hall sensor, front passenger seat | 33L |
| M28/8x1 | Seat cushion length adjustment motor electrical connector, front passenger | 31H |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 36L |
| M28/9b1 | Seat inclination adjustment Hall sensor, front passenger seat | 34L |
| N10/8 | Rear SAM control unit | 20L |
| N32/2 | Front passenger seat control unit | 4A |
| N32/2 | Front passenger seat control unit | 12A |
| N32/2 | Front passenger seat control unit | 21A |
| N32/2 | Front passenger seat control unit | 29A |
| N32/2 | Front passenger seat control unit | 37A |
| N32/2 | Front passenger seat control unit | 44A |
| N32/2 | Front passenger seat control unit | 53A |
| N32/2 | Front passenger seat control unit | 60A |
| R13/1 | Left front seat cushion heater pad | 41L |
| R13/1x1 | Left front seat surface heater pad electrical connector | 40H |
| R13/2 | Left front seat backrest heater pad | 43L |
| R13/2x1 | Left front seat backrest heater pad electrical connector | 43H |
| R13/3 | Right front seat cushion heater pad | 41L |
| R13/3x1 | Right front seat cushion heater pad electrical connector | 40H |
| R13/4 | Right front seat backrest heater pad | 43L |
| R13/4x1 | Right front seat backrest heater pad electrical connector | 43H |
| R24 | Adjustable seat cushion length heater pad, left front seat | 38L |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 38L |
| R24/1x1 | Adjustable seat cushion length heater pad electrical connector, right front seat | 38H |
| R24x1 | Adjustable seat cushion length heater pad electrical connector, left front seat | 38H |
| S92/6 | Right backrest release/inclination microswitch | 63L |
| W12/1 | Right center console ground point | 5G |
| W52/5 | Left center longitudinal member ground point | 8G |
| W52/6 | Right center longitudinal member ground point | 10G |
| W52/6 | Right center longitudinal member ground point | 12G |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 15L |
| Z137/1z1 | Connector sleeve, heater LIN | 21E |
| Z143/4z1 | Right backrest release microswitch circuit 31 connector sleeve | 64E |
| Z61/22z1 | Left rear seat heater ground line connector sleeve | 56E |
| Z61/22z1 | Left rear seat heater ground line connector sleeve | 33E |
