Removing, Installing Windowbag - AR91.60-P-0693LW

Model 205.0/1/2/3

Model 238.3

Model 253

Model 293

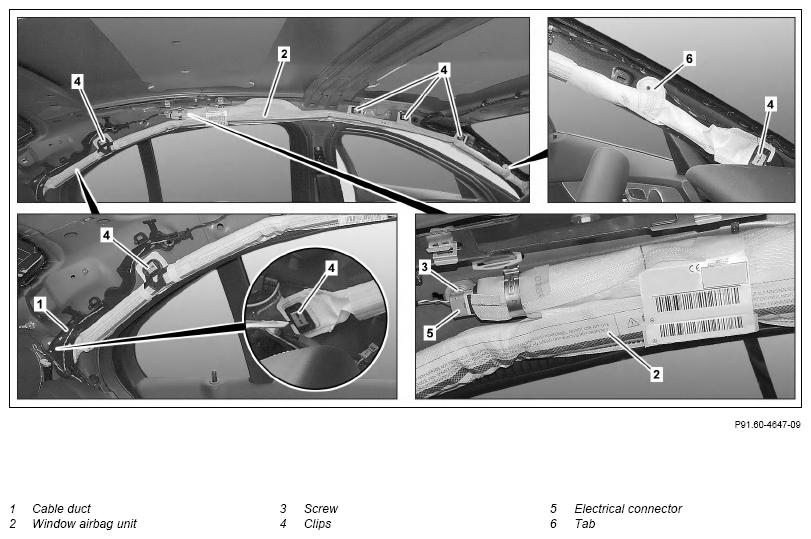

Fig 1: Window Airbag Unit Component Location - Model 205.0/3 (Shown On Model 205.0)

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Adjust driver and front passenger seat into fully reclined position.	Model 205.0/1/3, 238.3
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
3	Disconnect ground line on battery.	Model 293	AR54.10-P-0003EQ
		Model 205.0/1/2/3, 253	AR54.10-P-0003LW
		Model 238.3	AR54.10-P-0003LWO
4.1	Remove roof lining and place onto seats.	Model 205.0/1/3, 238.3
		Model 238.3	AR68.30-P-4300LWO
		Model 205.0/1	AR68.30-P-4300LW
		Model 205.3	AR68.30-P-4300CLW
4.2	Remove headliner.	Model 205.2
		Model 253
		Model 293
			AR68.30-P-4300LWS
5	Release and disconnect electrical connector (5) at gas generator.
6	Remove screw (3).	Bolt, holder for windowbag gas generator to A-pillar/roof frame	*BA91.60-P-1004-01O
7	Unhook holder for gas generator from body.
8	Detach cable duct (1) from C-pillar and place to one side.	Model 205.0/1

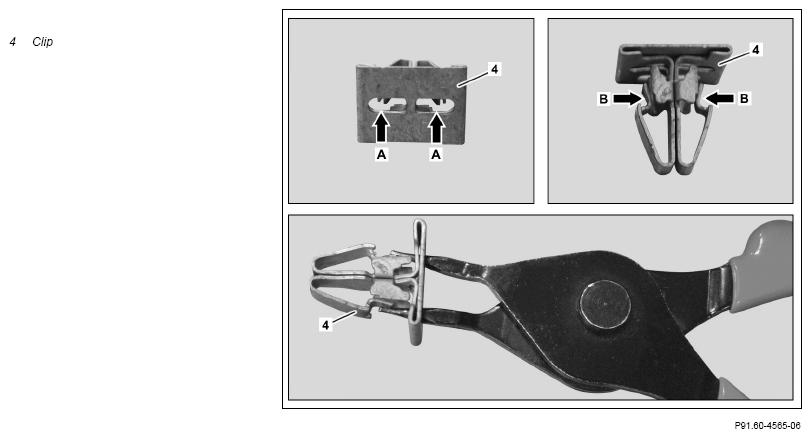

9	Insert a suitable pair of pliers through the openings (arrows A), press the tabs (arrow B) together and remove the clamps (4).	Model 205.3, 238.3 In the A-pillar area, the bottom clamp (4) is replaced by a nut or a screw.
10	Unhook shackle (6) of window airbag unit (2) from A-pillar.	Model 205.0/1/2
11	Remove window airbag unit (2) with gas generator and place in vehicle.
12	Remove window airbag unit (2) with gas generator from vehicle.	Handle window airbag unit (2) carefully. Otherwise, the remaining interior equipment or paint may be damaged.
13	Install in the reverse order.
	Check
14	Check Supplemental Restraint System (SRS) using vehicle diagnosis system.	When replacing window airbag unit (2).
		Model 293	AD00.00-P-2000-06FR
		Model 205.0/1/2/3, 253	AD00.00-P-2000-04B
		Model 238.3	AD00.00-P-2000-06LWO
