Remove/Install Seat Occupancy Recognition Sensor - AR91.60-P-0720LW
Model 205, 213, 238, 253, 293
with code U10 (Automatic seat occupancy recognition and child seat recognition)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove the seat cushion padding from the front passenger seat. | Model 213 with code 555 (AMG Performance seats) with code U10 (Automatic seat occupancy recognition and child seat recognition) |
AR91.10-P-5040FRX |
| Model 213 with code U10 (Automatic seat occupancy recognition and child seat recognition) except code 275 (Memory package) except code 555 (AMG Performance seats) |
AR91.10-P-5040LWF | ||
| Model 213 with code 275 (Memory package) with code U10 (Automatic seat occupancy recognition and child seat recognition) except code 555 (AMG Performance seats) |
AR91.10-P-5040LWE | ||
| Model 205 with code U10 (Automatic seat occupancy recognition and child seat recognition) except code 221 (Electrically adjustable left driver seat) except code 222 (Electrically adjustable right front seat) except code 241 (Memory switch for electrically adjustable front passenger seat, left) except code 242 (Front passenger seat, electrically adjustable with memory function) except code 275 (Driver's seat, electrically adjustable with memory function) except code 555 (AMG Performance seats) except code P65 (Seat comfort package) Model 238 with code U10 (Automatic seat occupancy recognition and child seat recognition) except code 241 (Memory switch for electrically adjustable front passenger seat, left) except code 242 (Front passenger seat, electrically adjustable with memory function) except code 275 (Memory package) except code P65 (Seat comfort package) Model 253, 293 with code U10 (Automatic seat occupancy recognition and child seat recognition) except code 221 (Electrically adjustable left driver seat) except code 222 (Electrically adjustable right front seat) except code 241 (Memory switch for electrically adjustable front passenger seat, left) except code 242 (Front passenger seat, electrically adjustable with memory function) except code 275 (Driver's seat, electrically adjustable with memory function) except code 555 (AMG Performance seats) except code P65 (Seat comfort package) |
AR91.10-P-5040LWA | ||
| Model 205, 238, 253, 293 with code 241 (Memory switch for electrically adjustable front passenger seat, left) with code U10 (Automatic seat occupancy recognition and child seat recognition) Model 205, 238, 253, 293 with code 242 (Front passenger seat, electrically adjustable with memory function) with code U10 (Automatic seat occupancy recognition and child seat recognition) Model 205, 238, 253, 293 with code P65 (Seat comfort package) with code U10 (Automatic seat occupancy recognition and child seat recognition) Model 205, 253, 293 with code 221 (Electrically adjustable left driver seat) with code U10 (Automatic seat occupancy recognition and child seat recognition) Model 205, 253, 293 with code 222 (Electrically adjustable right front seat) with code U10 (Automatic seat occupancy recognition and child seat recognition) Model 205, 253, 293 with code 275 (Driver's seat, electrically adjustable with memory function) with code U10 (Automatic seat occupancy recognition and child seat recognition) Model 238 with code 275 (Memory package) with code U10 (Automatic seat occupancy recognition and child seat recognition) |
AR91.10-P-5040LW | ||

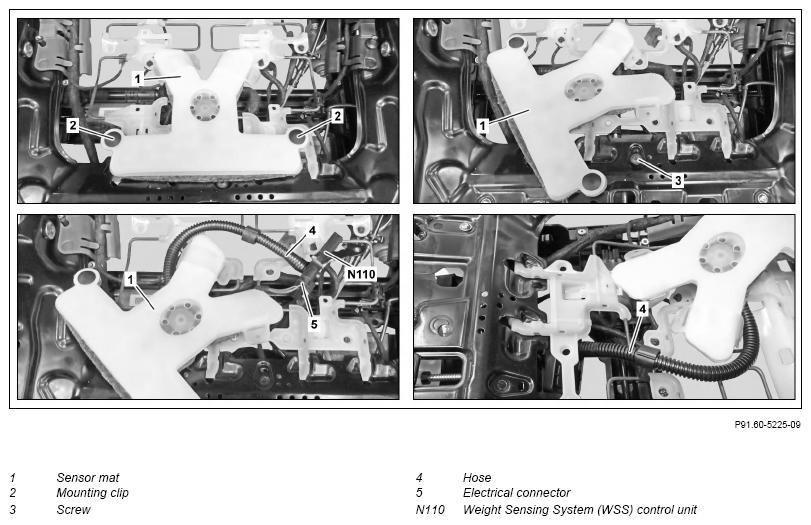

| 2 | Remove retaining clips (2). | ||
| 3 | Place sensor mat (1) to one side. | ||
| 4 | Remove screw (3). | ||
| 5 | Unclip hose (4) from seat frame base. | ||
| 6 | Guide sensor mat (1) with Weight Sensing System (WSS) control unit (N110) through the seat frame base. | Note routing of hose (4) between sensor mat (1) and the Weight Sensing System (WSS) control unit (N110). Malfunctions can occur otherwise. |
|
| 7 | Disconnect electrical connector (5). | ||
| 8 | Remove sensor mat (1) with Weight Sensing System (WSS) control unit (N110). | ||
| 9 | Install in the reverse order. | ||
| Initial startup | |||
| 10 | Carry out commissioning of Weight Sensing System (WSS). | ||
| Model 293 with code U10 (Automatic seat occupancy recognition and child seat recognition) |
AD00.00-P-2000-06FR | ||
| Model 238 with code U10 (Automatic seat occupancy recognition and child seat recognition) |
AD00.00-P-2000-06LWO | ||
| Model 205, 213, 253 with code U10 (Automatic seat occupancy recognition and child seat recognition) |
AD00.00-P-2000-04B | ||
| Fig 2 |
