Remove/Install Front Seat Sidebag Unit - AR91.60-P-0695LF

Model 205, 213, 253

except code 555 (AMG-Performance Seat)

Model 217, 222, 238, 293

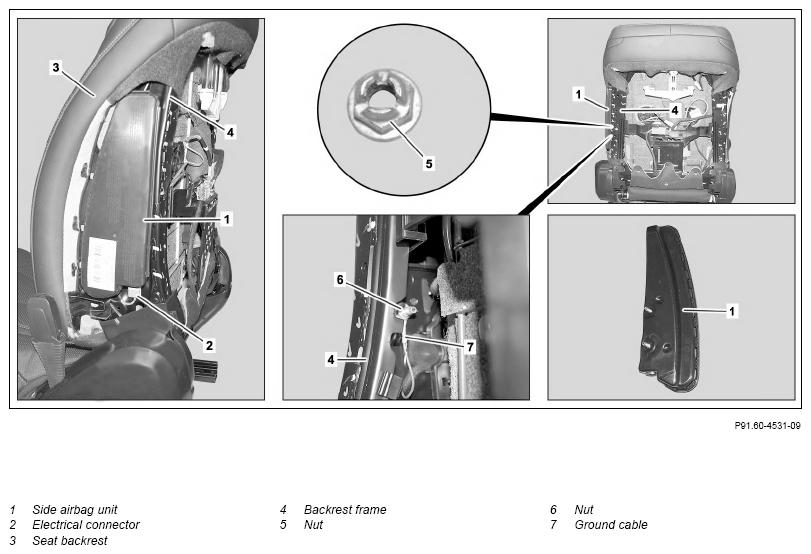

Fig 1: Front Seat Sidebag Unit Component Location - Model 205 Except Code 555 (Shown On Model 222)

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 222 with removed front seat

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Remove seat backrest trim from left or right seat backrest (3).	Model 205.0/1/2, 213, 253 except code 555 (AMG-Performance Seat)	AR91.10-P-1912LW
		Model 293 Model 205.3/4 except code 555 (AMG-Performance Seat)	AR91.10-P-1912CLW
		Model 238 Model 217, 222	AR91.10-P-1910LF
2	Disconnect ground line from battery.	Model 205, 213, 253 except code 555 (AMG-Performance Seat)	AR54.10-P-0003LW
		Model 217, 222	AR54.10-P-0003LF
		Model 238	AR54.10-P-0003LWO
		Model 293	AR54.10-P-0003EQ
3	Release and disconnect electrical connector (2) at sidebag unit (1).	Ensure correct engagement of electrical connector (2) at side airbag unit (1).
		Removal lever	Fig 2
4	Unscrew nut (5).	Model 217, 222Nut, center airbag/side airbag to seat backrest frame	*BA91.60-P-1010-01I
		Model 205, 213, 253 except code 555 (AMG-Performance Seat) Model 238, 293Nut, sidebag unit to backrest frame	*BA91.60-P-1006-01O
5	Unscrew nut (6) and remove ground line	Model 205, 213, 253 except code 555 (AMG-Performance Seat) Model 238, 293 Ground line (7) is secured to nut (6). Observe installation position of ground line (7).
		Model 217, 222Nut, center airbag/side airbag to seat backrest frame	*BA91.60-P-1010-01I
		Model 205, 213, 253 except code 555 (AMG-Performance Seat) Model 238, 293Nut, sidebag unit to backrest frame	*BA91.60-P-1006-01O
6	Remove side airbag unit (1) from backrest frame (4).
7	Install in the reverse order
	Check
8	Check Supplemental Restraint System (SRS) using vehicle diagnosis system.	When replacing the side airbag unit (1).
		Model 293	AD00.00-P-2000-06FR
		Model 205, 213, 253 except code 555 (AMG-Performance Seat) Model 217, 222	AD00.00-P-2000-04B
		Model 238	AD00.00-P-2000-06LWO

Fig 2: Identifying Removal Lever (203 589 04 33 00)

Courtesy of MERCEDES-BENZ USA
