Remove/Install Engine Hood Lifter - AR91.60-P-0900LW

Model 205, 213, 238, 253

with code U60 (Pedestrian protection - Active hood)

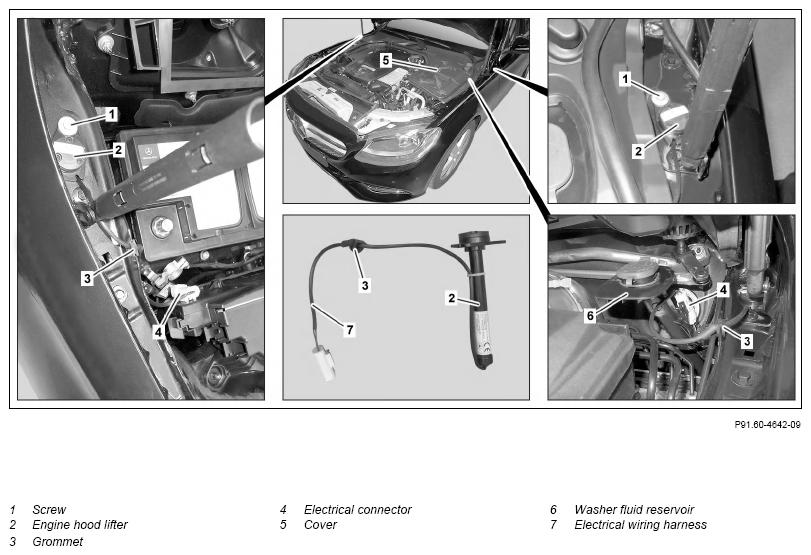

Fig 1: Engine Hood Lifter Component Location - Model 205 With Code U60

Courtesy of MERCEDES-BENZ USA

Shown on model 205

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	General information on the impact absorber		AH88.20-P-1000-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Check
1	Check hinge damper of hinges for deformation	With triggered engine hood lifter (2). In case of deformation ↓ Replace hinge of engine hood.
		Model 213, 238, 253 with code U60 (Pedestrian protection - Active hood) Replace hinge damper.	AR88.40-P-3060LW
		Model 205 with code U60 (Pedestrian protection - Active hood)	AR91.60-P-0911LW
2	Remove the front impact absorber and check for damage or deformation	With triggered engine hood lifter (2).
		Model 205, 253 with code U60 (Pedestrian protection - Active hood)	AR91.60-P-0950LW
		Model 213, 238 with code U60 (Pedestrian protection - Active hood) If damaged or deformed ↓ Replace impact absorber and pedestrian protection sensor.	AR91.60-P-0950LWE
	Remove/install
3	Disconnect battery ground line	Model 238 with code U60 (Pedestrian protection - Active hood)	AR54.10-P-0003LWO
		Model 205, 213, 253 with code U60 (Pedestrian protection - Active hood)	AR54.10-P-0003LW
4	Release cover (5) on left side and lift until electrical connector (4) of left engine hood lifter (2) is accessible	When removing engine hood lifter (2) on left side of vehicle.
5.1	Remove and disconnect left electrical connector (4) from washer fluid reservoir (6)	When removing engine hood lifter (2) on left side of vehicle.
5.2	Remove and disconnect right electrical connector (4) from prefuse box	When removing engine hood lifter (2) on right side of vehicle.
6	Remove bolt (1)	Screw/nut, hood lifter to body	*BA91.60-P-1002-02A
7	Remove the engine hood lifter (2) upwards	Ensure correct routing of electrical wiring harness (7) and grommet (3). Otherwise the electrical wiring harness (7) can be damaged.
8	Install in the reverse order
	Check
9	Check Supplemental Restraint System (SRS) with diagnostic system
		Model 238 with code U60 (Pedestrian protection - Active hood)	AD00.00-P-2000-06LWO
		Model 205, 213, 253 with code U60 (Pedestrian protection - Active hood)	AD00.00-P-2000-04B
