Remove/Install Seat Backrest Release Limit Switch - AR91.10-P-0007LW

Model 205.3/4

with code 555 (AMG-Performance Seat)

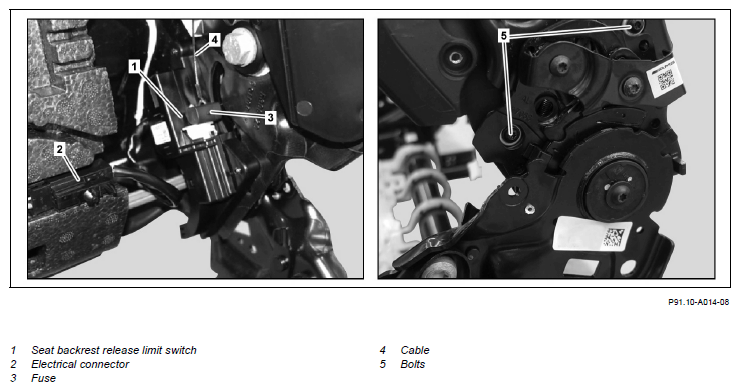

Fig 1: Seat Backrest Release Limit Switch Component Location - Model 205.3/4 With Code 555

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove seat backrest padding from front seat.		AR91.10-P-0003LWX
2	Expose and disconnect electrical connector (2).
3	Unclip retainer (3).
4	Remove bolts (5).
5	Unhook cable (4) and remove seat backrest release limit switch (1) simultaneously.
6	Install in the reverse order.
