Remove/Install Seat Backrest Lock - AR91.10-P-1110LW
Model 205.3/4
with code 555 (AMG-Performance Seat)
Shown on front passenger seat
Shown on front passenger seat
Shown on front passenger seat
Shown on front passenger seat
Shown on front passenger seat
| Remove | |||
| 1 | Remove seat backrest padding. | AR91.10-P-0003LWX | |
| 2 | Remove cover frame from integrated head restraint. | Model 205.3/4 up to model year 2019 with code 555 (AMG-Performance Seat) |
AR91.16-P-0300RGX |
| Model 205.3/4 as of model year 2019 with code 555 (AMG-Performance Seat) |
AR91.16-P-0300RG | ||

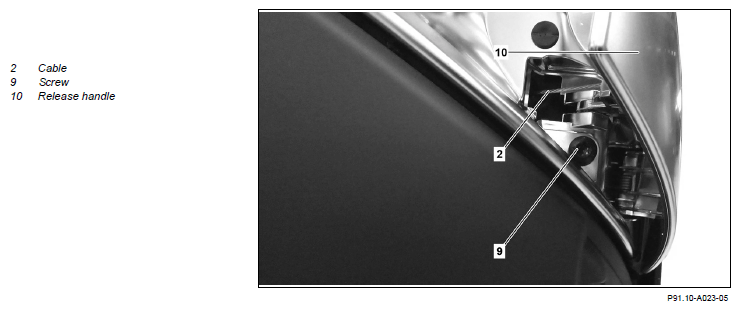

| 3 | Remove screw (9). | ||
| 4 | Open clips (3) using a screwdriver. | ||
| 5 | Release lock (6) using a screwdriver and open cap (5). | ||
| 6 | Pull out cable pull holder (8). | ||
| 7 | Release retainer (7). | ||
| 8 | Unhook cable (2) from release handle (10). | ||
| 9 | Unhook cable (2) from guide pulley (4). | ||
| 10 | Remove cable (2). | ||
| 11 | Remove retainer (14) on side with knee lever sensor. | ||
| 12 | Unhook cable (1a) on right side. | ||
| 13 | Unhook cable (1 b) on left side. | ||
| 14 | Remove seat backrest locking function from duct. | ||
| Install | |||
| 15 | Insert seat backrest locking function into duct. | ||
| 16 | Hook in cable (1a). | ||
| 17 | Hook in cable (1b). | ||
| 18 | Insert retainer (14) on side with knee level sensor. | ||
| 19 | Hook cable (2) into guide pulley (4). | ||
| 20 | Hook cable (2) into release handle (10). | ||
| 21 | Press in retainer (7). | ||
| 22 | Press in cable pull holder (8). | ||
| 23 | Screw in bolt (9). | ||
| 24 | Operate release handle (10) several times. | The driver (11) must be in the 5 o'clock position (arrow) after multiple actuation. Otherwise, the backrest cannot be locked properly on both sides. |
|
| 25 | Close clamps (3) using flat-nose pliers. | ||
| 26 | Close cap (5) with lock (6). | ||
| 27 | Install cover frame into integrated head restraint. | Model 205.3/4 up to model year 2019 with code 555 (AMG-Performance Seat) |
AR91.16-P-0300RGX |
| Model 205.3/4 as of model year 2019 with code 555 (AMG-Performance Seat) |
AR91.16-P-0300RG | ||
| 28 | Install seat backrest padding. | AR91.10-P-0003LWX |
